Open Type Three Phase 120KW 150KVA 50HZ Diesel Generator Set
- Shanghai Port
- T/T Credit Card
You May Like
-
58KW Deutz Diesel Engine Atlas XAS137 Mining Mobile air compressor
-
Atlas Copco Screw Air Compressor XAS67 Mobile Air Compressors
-
Diesel Air Compressor Atlas Copco Portable XAS57Dd
-
Diesel Engine Driven Atlas Copco Portable Air Compressor XAS47
-
Atlas Copco Stationary Type Electric Screw Air Compressor GA30+
-
Atlas Copco Screw Air Compressor XAHS186Dd
Product Details
Place of Origin | Jiangsu, China | Brand Name | DOBEST | |
Model Number | DG150-CF | Output Type | AC Three Phase | |
Speed | 1500 rpm | Frequency | 50HZ | |
Rated Power | 120KW | Rated Voltage | 380V-415V 220V-240V | |
Rated Current | 217A |
Product Description

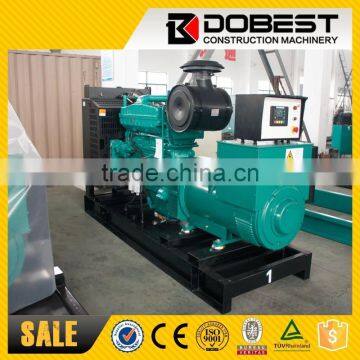

Open Type Three Phase 150KVA 50HZ Diesel Generator Set
Genuine Cummins Diesel Engine Powered Generator Set 120KW
50kva to 1250kva Diesel Power Generator With Commins Engine
Generator: 150kva Cummins Diesel Genset
Generator set Model: DG150-CF
Power: 150kva
Engine Model: 6BTAA5.9-G2
Alternator Brand: China Stamford
Control Panel: Smartgen
Open Type
Cummins 150KVA Diesel Generator Set Specification | ||
Generator Set Model | DG150-CF | |
Prime Power (50HZ) | 120KW / 150KVA | |
Rated Voltage | 380/220V 230/400V 240/415 254/440 According to Customers Request | |
Output Frequency | 50Hz | |
Power Facts | 0.8 | |
Starter Motor | DC 24V | |
Voltage Method | AVR | |
Fuel Consumption at 100% Load(g/kwh) | 27.8L/H | |
Total Oil Capacity(L) | 16.4L | |
GB/T2820,GB/T12786-1991 | ||
Engine Specification | ||
Engine Model | DCEC Cummins Standby Power(50Hz), 4-cycle | |
Prime Power | 132KW/179HP | |
Rated Rpm | 1500rpm | |
Cylinder arrangement | 6 in line | |
Air Intake System | Turbo,Water/Air Cooling | |
Fuel System | PN type fuel pump | |
Cooling System | Water-cooled, 40°C Radiator As Standard, 50°C Is Optional | |
Governor Type | Electronic | |
Starter Motor | DC 24V | |
Bore * Stock | 114*135mm | |
Exhaust System | ||
Exhaust Gas Flow | 34.7m³/min | |
Exhaust Temperature: | 570°C | |
Max Back Pressure- | 1OkPa | |
Air Intake System | ||
Max Intake Restriction: | 6.3kPa | |
Burning Capacity: | 12.4m3 /min | |
Air Flow: | 238m3 /min | |
Fuel System | ||
100%( Prime Power) Load: | 215g/kw.h | |
75%(Prime Power) Load: | 211g/kw.h | |
50%(Prime Power)Load: | 216 g/kw.h | |
100%( Prime Power) Load | 35.1L/H | |
Oil System | ||
Total Oil Capacity | 27.6L | |
Oil Consumption | ≤4g/kwh | |
Engine Oil Tank Capacity | 24L | |
Oil Pressure at Rated RPM | 276-414kPa | |
Cooling System | ||
Total Coolant Capacity | 34L | |
Thermostat: | 82-95℃ | |
Max Water Temperature: | 104℃ | |
Alternator Specification | ||
Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1,CSA22.2 and AS1359 standards. | ||
Alternator Data | ||
Exciter Type | Brush-less, Self-excited | |
Rated Power | 150kva | |
Connecting Type: | 3 Phase and 4 Wires, “Y” type connecting | |
Rated Frequency | 50HZ | |
Insulation Grade | H | |
Protection Grade | IP22 | |
Insulation Class, Temperature Rise | H/H | |
Voltage Regulation, Steady State: | ≤±1% | |
Alternator Efficiencies | 91.7% | |
GENERATING SET DATA | ||
Voltage Regulation: | ≥±5% | |
Voltage Regulation, Stead State: | ≤±1% | |
Sudden Voltage Warp (100% Sudden educe): | ≤+25% | |
Sudden Voltage Warp (Sudden Increase): | ≤-20% | |
Voltage Stable Time (100% Sudden Reduce): | ≤6S | |
Frequency Regulation, Stead State: | ≤5% Adjustable |
Different Types For Option:
( Cummins, Doosan, Perkins, Volvo, Shangchai, Yuchai, Weichai, Xichai )
Open Type Diesel Generator Set
Weather Proof Type Diesel Generator Set
Sound Proof Type Diesel Generator Set
Container Type Mobile Diesel Gnerator Set
Trailer Type Portable Diesel Generator Set
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
