Most Popular 6 Tons Diesel Forklift Truck YTO CPCD60

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	YTO	Model Number	CPCD60
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	6 Ton	Max. Lifting Height	6000mm
Min. Lifting Height	3000mm	Fork Length	1220mm
Fork Width	150mm	Overall Dimensions	3510mm1995mm2470mm
Certification	ISO, CE	After-sales Service Provided	Engineers available to service machinery overseas

Good Price Diesel Forklift Truck Popular Selling

Capacity 1T, 2T, 2.5T, 3T, 4T, 5T, 6T, 7T, 8T, 10T.

Chinese Diesel Forklift YTO 6 Ton Diesel Forklift CPCD60

Speciality parameter	Model					CPCD60
	Model					CPCD60
	Power type					Diesel
	Rated capacity				kg	6000
	Load center			d	mm	600
	Lift height			h2	mm	3000
	Mast tilt angle (forward/backward)			α/β	Deg	6/12
	Front overhang			L3	mm	590
	Wheel-base			L4	mm	2250
	Tread(front/rear)			b4/b5	mm	1470/1700
Performance parameter	Travel brake					Hydraulic-Foot pedal
	Parking brake					Mechanical-Hand level
	Lift speed(with/without load)				mm/s	350/380
	Lower speed (with/without load)				mm/s
	Travel speed (with/without load)				km/h	20/21
	Max. gradeability (with load)				%	20
	Max. Towing (with/without load)				kN	42/32
	Weight Distribution with load(pront/rear)					12940/1630
	Weight Distribution without load(pront/rear)					3840/4370
Power, transmission and others	Engine	Model				LR4B3-24
		Manufacturer				YTO
		Rated power			kw	64/2400
		Max.roration				288/1700
		Dispilacement				4.578
	Battery	Voltage			V	24
	Battery	Capacity			Ah	2×100
	Gearbox	Transmission type				Hydraulic
	Gearbox	Gears,speed (front/rear)				Ⅱ/Ⅱ
	Tire	type
		Model	Pront			8.25-15-14PR
		Model	Rear			8.25-15-14PR
Other	Self.weight				kg	8570
	Free lift height			h4	mm	195
	Fork	Thickness×Width×Length		c×b×a	mm	60×150×1220
	Overall dimensions	Overall length(without forks)		L2	mm	3510
		Overall width		b1	mm	1995
		Overall height	Extended height(mast)	h1	mm	4365
			Lower height(mast)	h3	mm	2500
			Overhead guard	h7	mm	2470
	Min. turning radius			Wa	mm	3300
	Min. under ground clearance	Under mast		m1	mm	195
	Min. under ground clearance	Center of wheel-base		m2	mm	200

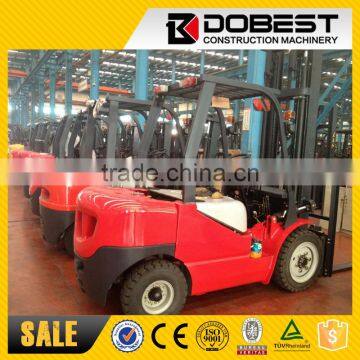

Product Pictures
