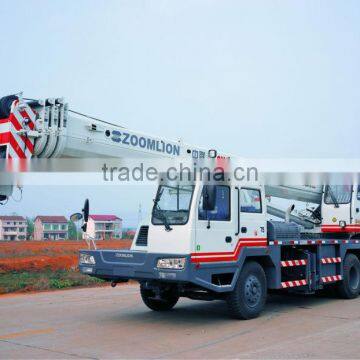

Best Price ZOOMLION 20 Ton Truck Crane QY20DF
- Shanghai Port
- T/T Credit Card
You May Like
Product Details
Condition | New | Application | Construction & Transportaion | |
Rated Loading Capacity | 20t | Rated Lifting Moment | 850KN.m | |
Max. Lifting Load | 20t | Max. Lifting Height | 40.4 | |
Span | 6.1m | Place of Origin | Henan, China | |
Brand Name | ZOOMLION | Model Number | QY20DF | |
Certification | CCC; ISO | Warranty | 1 YEAR | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
ZOOMLION 20 Ton Truck Crane QY20DFWP6.240 diesel engine 176kW
Main boom + jib lifting height 40.4m
Hirschmnn moment limiter
Item | Value | Remarks | ||
Working performance specification | Max. rated total lifting capacity kg | 20000 | ||
Max. load moment of basic boomkN.m | 850 | |||
Max. load moment with max. main boom lengthkN.m | 458.6 | |||
Max. lifting height of main boom m | 32.60 | Deformation of boom is not taken into consideration. | ||
Max. lifting height of fly jibm | 40.4 | |||
Working speed | Max. speed of single rope on main winchm/min | 120 | The 4th layer of drum | |
Derricking time of booms | 60 | |||
Telescopic time of booms | 70 | |||
Slewing speedr/min | 0~1.8 | |||
Traveling specification | Max. traveling speedkm/h | 70 | ||
Max. gradeability% | 27 | |||
Min. turning circle diameterm | 20 | |||
Min. ground clearancemm | 250 | |||
Limits for exhaust pollutants and smoke | Comply with related standards | GB3847-2005 GB17691-2005 (Stage III) | ||
Oil consumption per hundred kilometersL | 40 | |||
Mass specification | Deadweight of crane in traveling conditionkg | 26080 | ||
Complete vehicle kerb masskg | 25885 | |||
Front axle loadkg | 6380 | |||
Rear axle loadkg | 19700 | |||
Dimension specification | Overall dimensions (L×W×H) mm | 12320×2500×3400 | ||
Base on outriggersm | 4.95 | |||
Distance between outriggersm | 5.6 | |||
Main boom lengthm | 10.2~32 | |||
Main boom angle° | -2~80 | |||
Fly jib lengthm | 8 | |||
Offset angle of fly jib° | 0, 30 | |||
Chassis | Model | ZLJ5261 | ||
Class | II | |||
Feature No. | ZLJ5261H3.2 | |||
Engine | Model | WP6.240 | ||
Rated powerkW/r/min | 176/2500 | |||
Max. output torque N.m/r/min | 800/1300~1500 | |||
Manufacturer | Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd. |
The warranty covers the Product, for one (1) year from the documented date of purchase.
We promise excellent service under the warranty:
1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty
2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.
3. We will send original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
As a leading exporter specially for a big variety of construction equipment, Shanghai Dobest Construction Machinery Co., Ltd. is located in China's biggest port city Shanghai, which is also the financial center and business center.
Our mission is to provide a 'one-stop' service to fulfill our customers’ needs and expectations with the high quality product, prompt delivery and perfect service after sales. We promise to do our best to make our customers satisfied as we offer professional construction solutions for their kinds of projects.
By keeping the principle of good quality, competitive price, superior service, now we have won a very good reputation from all of our customers all over the world. Thus, our business expanded rapidly and so far we have exported our products to more than 20 countries and regions, including Australia, New Zealand, Brazil, Argentina, Honduras, Algeria, Tanzania, Kenya, Ethiopia, Djibouti, Congo, Morocco, UAE, Saudi Arabia, Iraq, Singapore, Thailand, Malaysia, Philippines and etc. Our market is mainly in Africa, South America, Middle East, South East Asia and some European countries.
We devote ourselves to provide a wide range of Chinese well-known construction equipment series to fulfill our customer’s different demands for their projects.
