Home > Products > Earthmoving Machinery > 5T Wheel Loader SEM 650B with Clamping Fork hot sale in South Africa

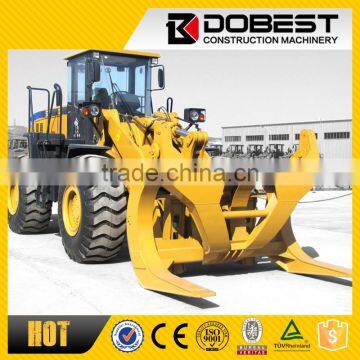

5T Wheel Loader SEM 650B with Clamping Fork hot sale in South Africa
- Shanghai Qingdao Tianjin port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Brand Name | SEM | |
| Model Number | SEM650B | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 8247x3068x3409 | Rated Load | 5000kg | |
| Certification | CE,ISO,GOST-R | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SEM 5 ton Wheel Loader SEM650B for sale
sem 650b wheel loader factory price best quality
650b price, sem 650b wheel loader spare parts list
Features:
• Engine conforming to National Stage II emission standards, optimal power system, improved lifting capability, higher productivity and fuel efficiency.
• With enlarged bucket, the productivity is improved by 12%.
• 19MPa hydraulic system pressure provides high efficiency and energy saving; single lever enables less efforts and convenient operation.
• Enlarged wheelbase, heavier counterweight, higher load capacity, and rear-mounted fuel tank, provides higher stability and the refueling is more convenient.
• Reliability of transmission and front and rear axle is improved; the service and maintenance is convenient.
• Brand new design of cooling system meets the requirements for -20℃ ~ +43℃ ambient conditions. Optional cooling system for 50℃ ambient conditions is also available.
• Full hydraulic coaxial flow amplification steering system improves steering pressure and enables more quick and easy steering.
• Vibration absorption device is mounted with the engine, which further improves the seal performance and reduces vibration and noise.
• Working pump and steering pump made at Caterpillar’s Wuxi plant, SAE/DIN standard high pressure hoses and optimized pipelines.
• Brake caliper is mounted with protective cover, which improves the service life of brake disc and the reliability of brake system.
• Brand new electric system is more safe, reliable and convenient to operate.
• The overall design meets the mandatory noise and safety standards in China.
Parameters of SEM 5 ton Wheel Loader SEM650B
| Model | SEM650B |
|---|---|
| Bucket Capacity | 2.7-4.5 m3 |
| Rated Load Capacity | 5000 kg |
| Operating Weight | 16700 kg |
| Max. Drawbar Pull | 162 kN |
| Max. Breakout Force | 163 kN |
| Max. Gradeability | 30° |
| Min. Turning Radius (Outside of Bucket) | 5917 mm |
| Min. Turning Radius (Outer Tire) | 6931 mm |
| Cycle Time (Bucket lifting, tipping and lowering) | 10.4 s |
| Dump Height | 3089 mm |
| Dump Reach | 1267 mm |
| Wheelbase | 3300 mm |
| Dimensions (L×W×H) (mm) | 8247×3068×3409 |
| Engine | |
| Model | Sinotruck Steyr D10.22AT21National Stage II emission standards |
| Type | In-line, vertical, water cooling, 4-stroke |
| Rated Power | 162 kW |
| Max. Torque | 920 Nm |
| Drive System | |
| Torque Converter | YJ375 |
| Type | Single stage, 3 elements, centripetal type |
| Transmission Type | Fixed axle, constant engaged power shift |
| Speed Gears | 4 forward, 4 reverse |
| Max. Speed | 41 km/hr |
| Front/Rear Drive Axle | 4WD, fixed front axle, swing rear axle(±12°) |
| Steering System | |
| Type | Articulated frame, load sensing steering, steering priority |
| Steering Angle (left/right) | 38°±1 |
| Hydraulic System | |
| Hydraulic System Pressure | 19 MPa |
| Operation Mode | Hydraulic pilot proportional control |
| Brake System | |
| Service Brake | Single circuit, air-over-oil 4-wheel caliper disc brake |
| Parking & Emergency Brake | Pneumatic internal expanding shoe brake |
| Tires | |
| Size | 23.5-25 |
| Volume | |
| Fuel Tank | 273L |
| Hydraulic System | 140L |
| Optional Devices | |
| Weichai WD10G210E22National Stage II emission standards | Shanghai C6121 National Stage II engine SC11CB220.1G2B1 |
| Xuzhou Meritor drive axle | Rock bucket with inclined cutting edge/rock bucket/ sand bucket/side dump bucket/log grab |
| Coal bucket and long reach arm | Desert tires |
| ROPS/FOPS/Warning Light | Quick coupler and tools |
Contact way:
Amy Shen
Sales Manager
Shanghai Dobest Construction Machinery Co., Ltd.
Web:
Skype: amyshen1212
Yahoo: amyshen121286
Tel: +86-21-66058291 Fax:+86-21-66058391
Mobile/WhatsApp/Viber/Wechat: +86-13701803469
Product Photos:
