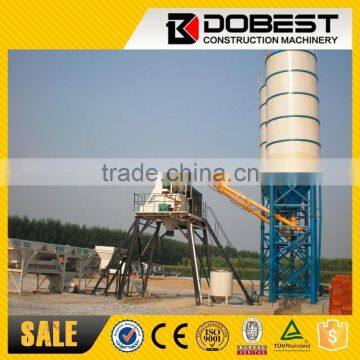

Hopper Lift Type Concrete Bacthing Plant HZS25

HZS series Ready Mix Concrete Plant, also named as concrete batching plant, It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power, the railroad, the road, the tunnel, the arch of bridge, the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread. It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.

1. MIXING SYSTEM

Twin Shaft Concrete Mixer: JS500

Volume: 800L

Capacity: 500L

Mixing blade: 2x7 pcs

Mixing Speed: 35 r/min

Mixer Motor:18.5 kw

Weight: 3700kg

Dimensions: 3030x2300x2680mm

2. AGGREGATE SYSTEM

2.1 Aggregate batcher: PLD800

Volume: 2x2 m3

Capacity: 48m3/h

Power: 3x3 kw

Weight: 2300 kg

Dimension: 6400x1600x3000mm

2.2 Lifting hopper: 1 unit

Speed: 0.28 m/s

Power of Motor: 5.5 kw

3. CEMENT SYSTEM (OPTIONAL)

3.1 Cement silo: 2units

Capacity: 50tx2=100t

Silo Diameter: 2800

3.2 Cement Screw Feeder: 2units

Diameter: 219mm

Length: 9m

4. ADDITIVE SYSTEM (OPTIONAL)

Additive silo Capacity: 1m3

Pneumatic Valve: 50 mm

Pump: 3kw

5. WATER SYSTEM

Motor Power: 3kw

Butterfly Valve: 150 mm

Capacity: 50m3/h

6. AIR SYSTEM

Air Compressor: 1unit

Power: 5.5 kw

Pressure: 0.7 Mpa

Air flew: 0.67 m3/min

7.  WEIGHING SYSTEM

7.1 Aggregate Weighing: 1unit

Weighing Capacity: 1500kg

Precision: 1%

7.2 Cement Weighing: 1unit

Weighing Capacity: 300kg

Precision: 1%

7.3 Water Weighing: 1unit

Weighing Capacity: 150kg

Precision: 1%

7.4 Additive Weighing: 1unit

Weighing Capacity: 40 kg

Precision: 1%

8. CONTROL SYSTEM
PLC command and control operation

Main electrical components: SCHNEIDER or SIMENSE

17'' colorful computer

Manuel and Auto Control is freely changeable

Specification of HZS Series concrete batching plants:

On Site

In Our Factory

Packing & Shipping

Installation-Overseas

The warranty covers the Product, for one (1) year from the documented date of purchase.

We promise excellent service under the warranty:

1. We will send the new spare parts by air express, such as DHL or TNT once our customers request an urgent replace of broken parts under warranty

2. We will arrange engineers to service machinery overseas in case our customers are in need help for installation and training, such as tower cranes, concrete batching plant, asphalt mixing plant, stone crushing plant, etc.

3. We will send  original spare parts by shipment or air express for option in case our clients want to purchase some other spare parts for repair and regular maintenance of their machines.
