Orchards 304 With Hydraulci Steering ,sunshade &roll Bar,mainly Working for Gren House or Under the Tree

FOB Price

US$ 2,800 - 3,800 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

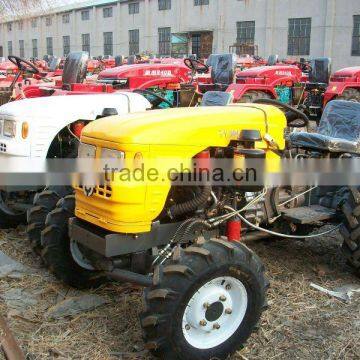

Tractor
1) creeping shift,double stage clutch
2) dual-way hydraulic output
3) hydraulic steering

Type				TY354
Type				4×4 Wheeled Type

Over all dimension	Length			3082/3168
	Width			1340/1222/1296/1560
	Height			1080
	Tread		Front Wheel	910/1000 /1200Fixed

			Rear Wheel	1000/1200Adjusted

	Wheel Base			1686/1772

	Min.Ground Clearance			223

(kg)Dry Mass				Six Shift : 1270 Eight Shift:1300
Engine	Model			4L22BT
				Double cylinder ,Vertical, Water Cooled and 4-stroke
	(kw)Rated Power			25.8

	(r/min)Rated Rev.			2350

	Fuel			Diesel Oil
Tire	Front Wheel			6.0-16
	Rear Wheel			9.5-24
Clutch				Dry-friction,single stage or Dry-friction,Two Stage

Steering				Mechanical Type/Mechanical Type or Hydraulic Type

Transmission Box				(3+1)×2or(4+1)×2or(4+1)×2×2(with creeping Shift)

Suspension Type				Post Positioned Tri-point suspension Cat a or1

PTO shaft		(r/min) Type and Rev		Non-independent Type 540/720 or Semi-independent Type 540/1000,540/720


		Spline Size		135Rectangle Spline With 6 teeth (6×28.91×34.79×8.69)
