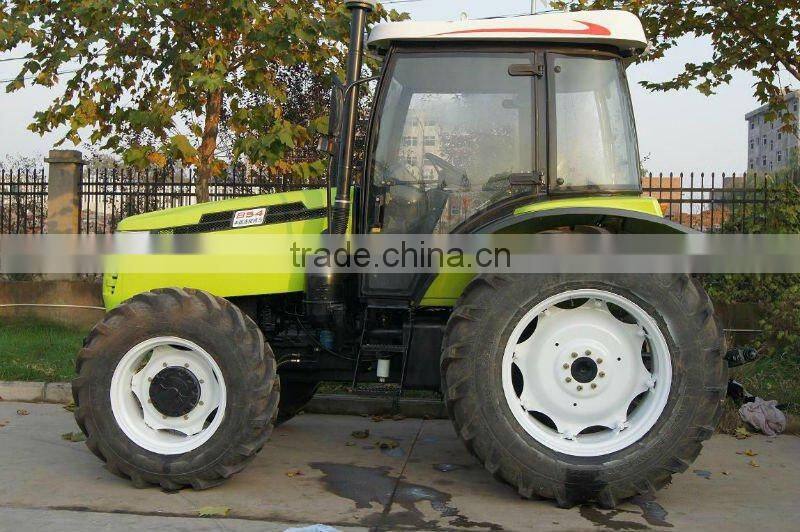

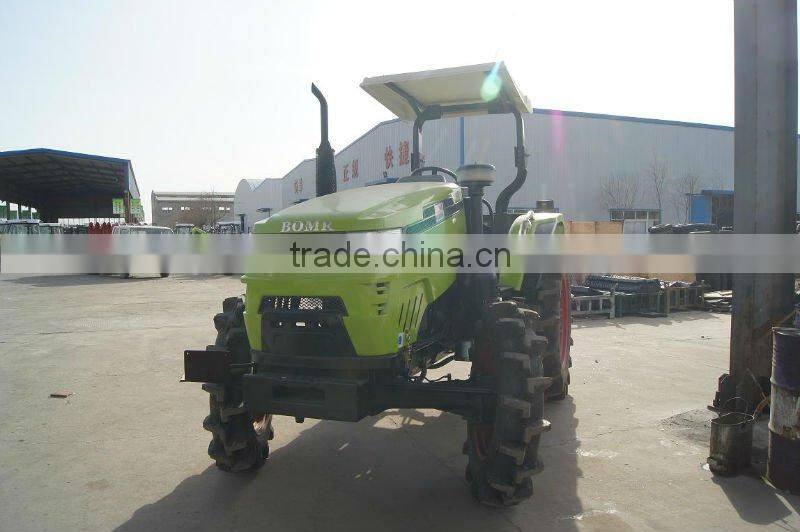

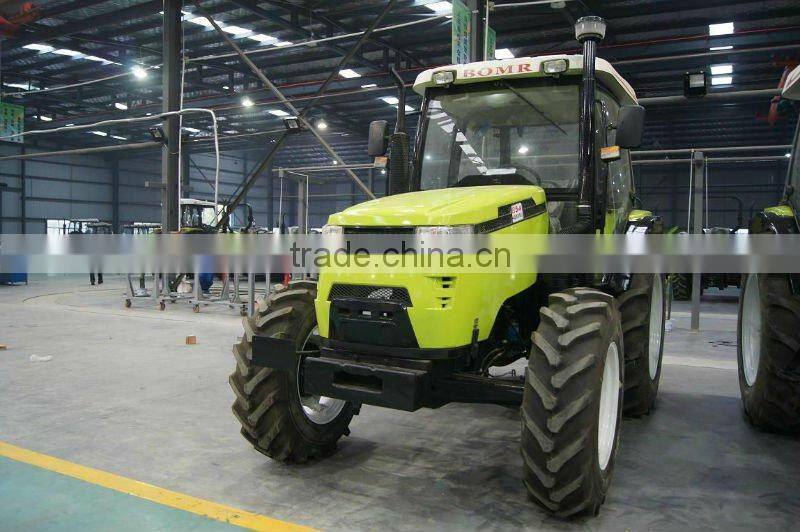

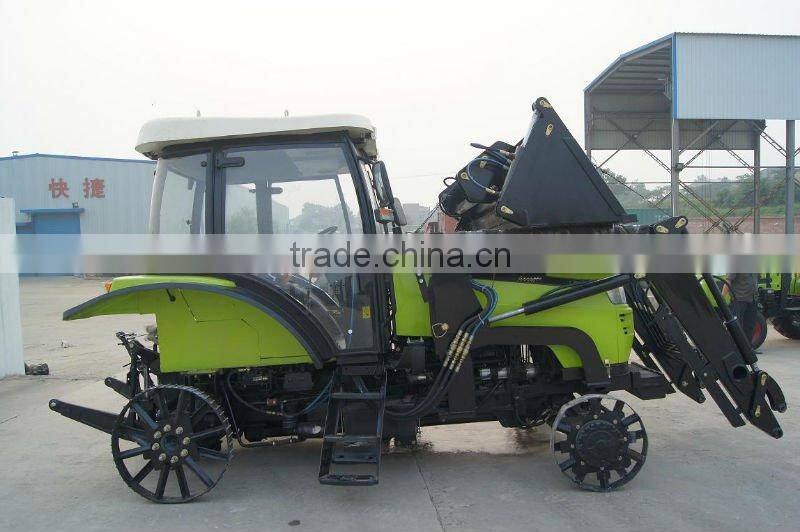

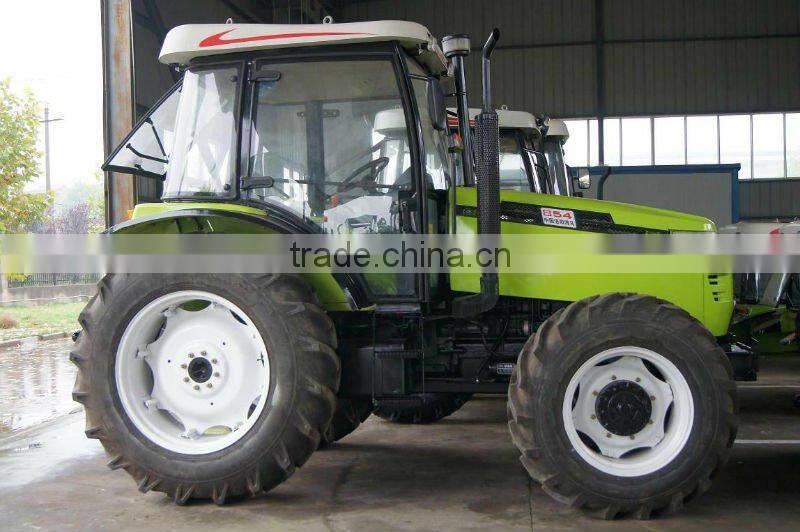

BOMR FIAT Gearbox Farm Diesel Tractor (854 Shuttle Shift)

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port QINGDAO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Certificate	Other	Brand Name	BOMR
Model Number	BOMR 854	Place of Origin	Henan, China

Product Description

Specifications

1. 12+12 shuttle shift
2. Turbo charge
3. Italy fiat chassis
4. Increase 30% efficiency
5. Save 25% of fule

The characteristic of tractor from 70hp to 100hp

Our tractors have YTO or Quanchai engine; the engine has the strong power and high quality.
Gearbox has 12 forward shifts and 4 reverse shifts.
The side shift control made the shifting more comfortable and humanistic.
Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral
Hydraulic steering system has independent oil circuit.
Independent PTO shaft has so many speed of rotation to choose. For example, 540/760/850/1000. It can meet customer’s different requirements when using tractor in the farm.
Pedal operated hydraulic driving brake system and hand shank operated mechanical parking brake system, made the brake system is safety and reliable.
Force buried lifter (force, position comprehensive control and floating control) is using reliably and mending conveniently. Hydraulic system use oil separate structure, which has strong lifting capacity. It matches with many large agricultural implements.
1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.

10. Use 4 planetary wheeled differential, transmission stably and reliably.

11. Our tractor adopt underneath double diesel tank. The diesel tank’s volume is large, which reaches 150L. And it is satisfied with using tractors for long-time.

12. Reinforced 3 point-suspension postposition is stronger, using reliable and long life. The bottom tie rod can float

The Main Specification of Bomr 80hp tractor
Tractor Model		BOMR800	BOMR804	BOMR850	BOMR854
General Specification	Driver Type	4×2	4×4	4×2	4×4
	Length×width×Height(mm)	4520×1885×2450	4520×2170×2530	4520×1885×2450	4520×2170×2530
	Traction force(KN)	14.9	17.6	15.5	18.7
	Steering	Hydraulic	Hydraulic	Hydraulic	Hydraulic
	Wheel base(mm)	2342 or 2353	2314 or 2325	2342 or 2353	2314 or 2325
	Front wheel tread(mm)	1400-1900	1630-1960	1400-1900	1630-1960
	Rear wheel tread(mm)	1500-2100	1520-2120	1500-2100	1520-2120
	P.T.O.Max.Power(Kw)	53.1	53.1	56.3	56.3
	Ground clearance(mm)	360	430	360	440
Engine	Type	4JR3AT80X	4JR3AT80X	4JR3AT85X	4JR3AT85X
	Bore×Stroke(mm)	108×135	108×135	108×135	108×135
	Rated revolution (r/min)	2200	2200	2400	2400
	Max.torque(n.m)	280	280	280	280
	Speed of Max.torque r.p.m.	1500-1700	1500-1700	1500-1700	1500-1700
Transmission	Clutch	Dual-stage clutch
Transmission	Gear box	12F+4R
Working device	Hydraulic lifter tilling depth control	Forced buried
	Max.lifting capacity(KN)	14.2	14.2	15	15
	Suspension type	Class 2 3-Point hitch
	Speed of P.T.O.(r/min)	stardard;540/720;optional:540/1000,720/1000
Notice:All above parameters are subject to change without notice because of rapid development of products.
