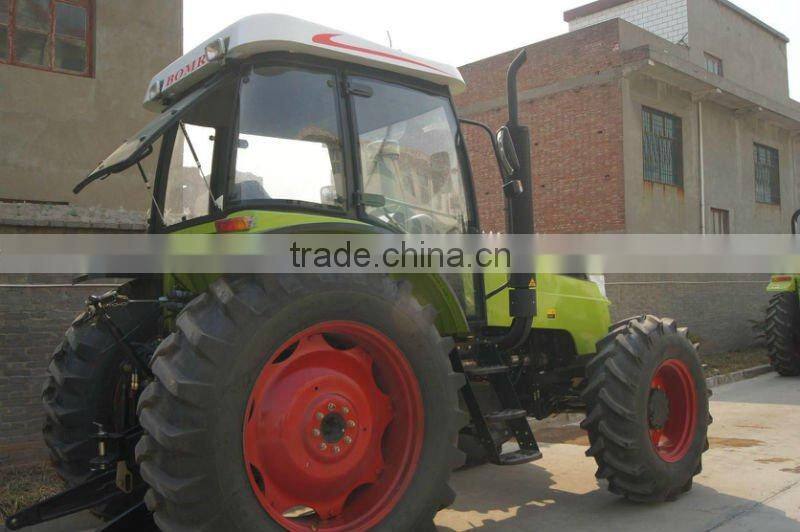

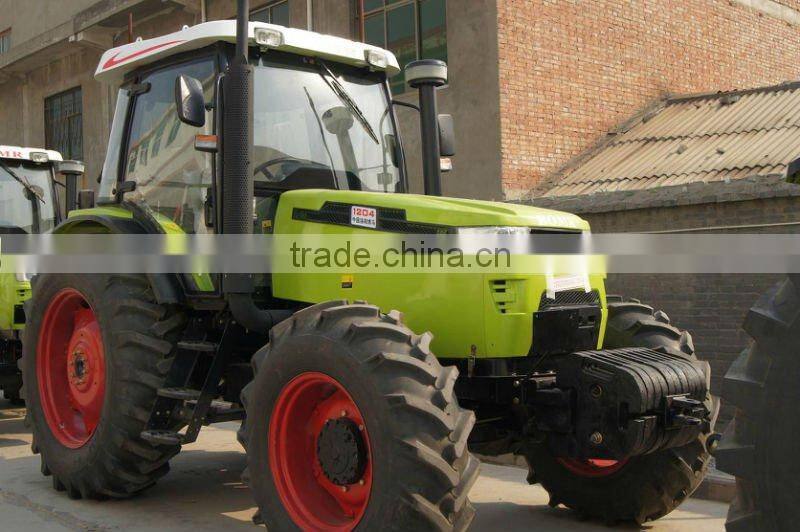

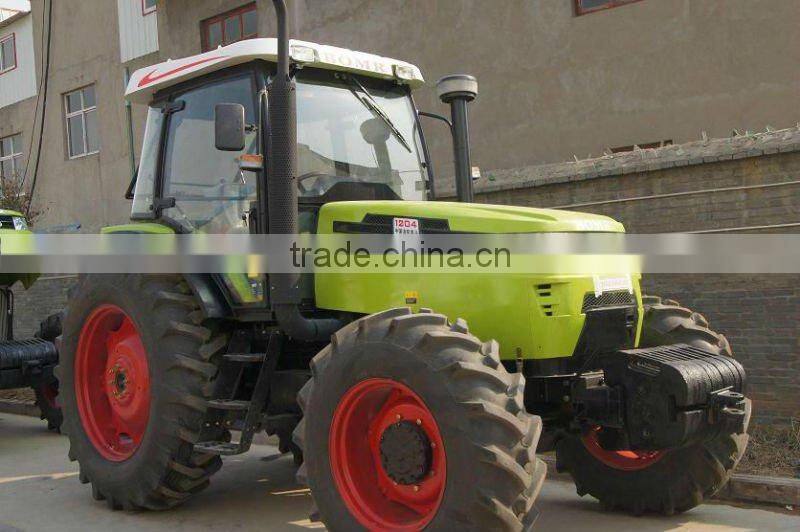

BOMR FIAT Gearbox Luxuriuos Cab Wheeled Tractor (1204 Cab)

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port QINGDAO
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Certificate	EPA	Brand Name	BOMR
Model Number	BOMR 1204	Place of Origin	Henan, China

Product Description

Specifications

1. 12+4 shift gearbox
2. Turbo charge
3. Italy fiat chassis
4. Increase 30% efficiency
5. Save 25% of fule

The characteristic of tractor from 110hp to 130hp

YTO engine, the engine has the strong power and high quality.
Gearbox has 12 forward shifts and 4 reverse shifts.
Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral
Hydraulic steering system has independent oil circuit.
Independent PTO shaft has so many speed of rotation to choose. For example, 540/760/850/1000. It can meet customer’s different requirements when using tractor in the farm.
Pedal operated hydraulic driving brake system and hand shank operated mechanical parking brake system, made the brake system is safety and reliable.
Force buried lifter (force, position comprehensive control and floating control) is using reliably and mending conveniently. Hydraulic system use oil separate structure, which has strong lifting capacity. It matches with many large agricultural implements.
1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.
Use 4 planetary wheeled differential, transmission stably and reliably.

10. Our tractor adopt underneath abnormal fuel tank. The tank’s volume is large. It reaches 230L. And it is satisfied with using tractors for long-time.

11. Reinforced 3 point-suspension postposition is stronger, using reliable and long life. The bottom tie rod can float

The Main Specification of Bomr 110hp to 130hp tractor
Tractor Model		1104	1204	1254	1304
General Specification	Driver Type	4×4	4×4	4×4	4×4
	Length×width×Height(mm)	5015×2335×2970	5015×2335×2970	5015×2335×2970	5015×2335×2970
	Traction force(KN)	26	27	29	32
	Steering	hydraulic	hydraulic	hydraulic	hydraulic
	Wheel base(mm)	2688.5	2688.5	2688.5	2688.5
	Front wheel tread(mm)	1672-2003(1760)	1672-2003(1760)	1822-2153(1910)	1822-2153(1910)
	Rear wheel tread(mm)	1662-2262(1862)	1662-2262(1862)	1662-2262(1862)	1662-2262(1862)
	P.T.O.Max.Power(Kw)	71.25	71.25	81.7	81.7
	Ground clearance(mm)	465	465	465	465
Engine	Type	YTO 110HP	YTO 110HP	YTO 110HP	YTO 110HP
	Bore×Stroke(mm)	108×125	108×125	110×135	110×135
	Rated revolution (r/min)	2300	2300	2300	2300
	Max.torque(n.m)	≥282	≥340	≥350	≥370
	Speed of Max.torque r.p.m.	1700-1800	1700-1800	1600-1800	1600-1800
Transmission	Clutch	Dual-stage clutch
Transmission	Gear box	12F+4R
Working device	Lifter tilling depth control	Height adjustable, floating control
	Max.lifting capacity( KN )	≥28
	Suspension type	Class 2 3-Point hitch
	Speed of P.T.O.(r/min)	stardard:760/1000;optional:540/760,540/1000
Notice:All above parameters are subject to change without notice because of rapid development of products.
