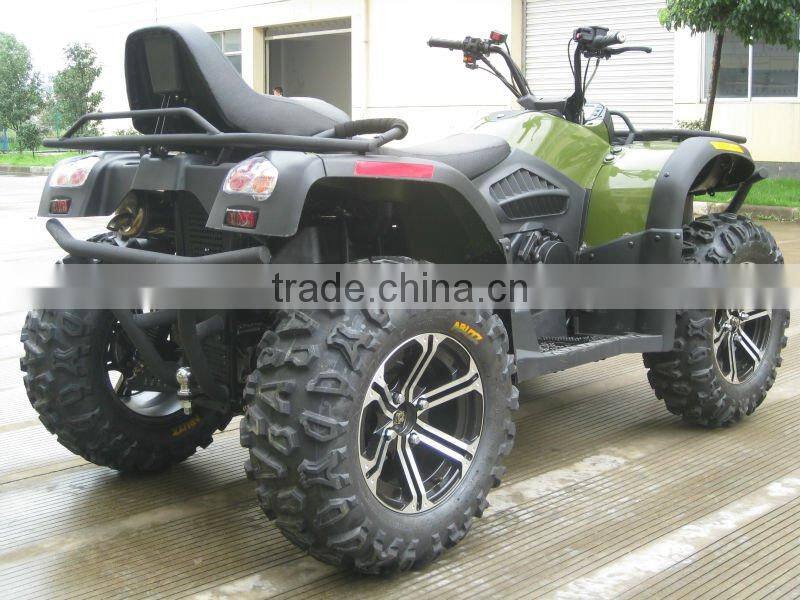

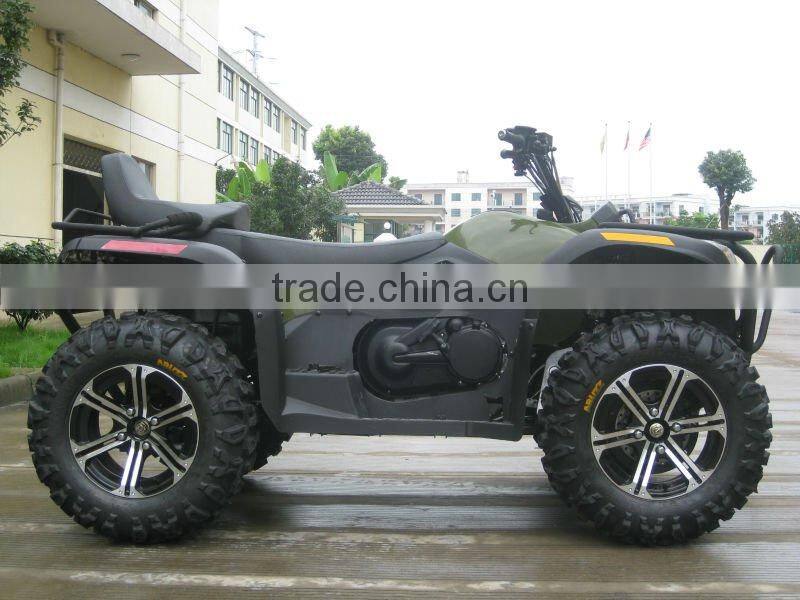

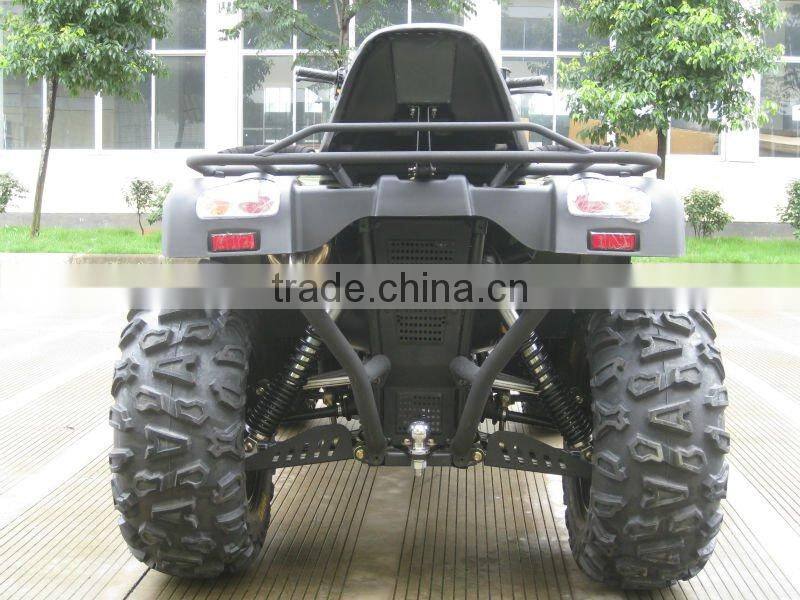

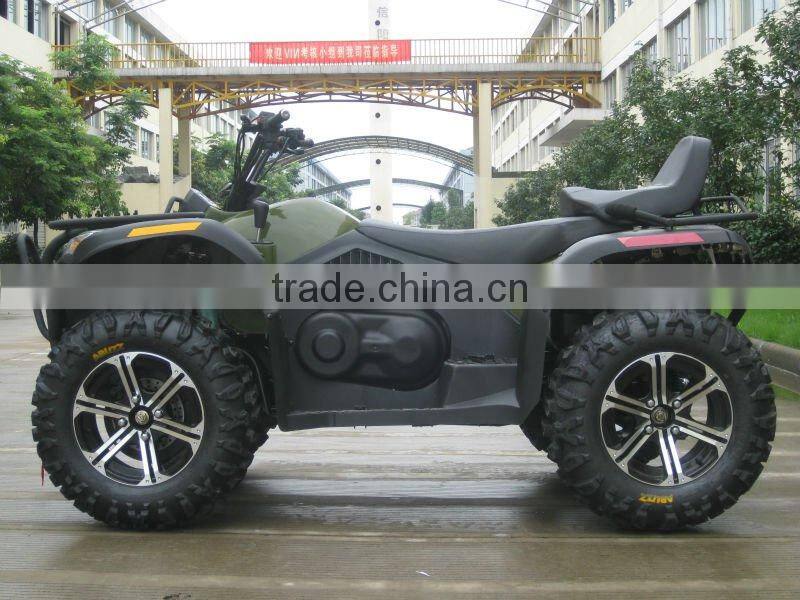

ATV Long Model for 3 People

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Transmission Type	Other, Automatic, Automatic
Certification	Other, EPA / EEC
Model Number	500CC, 500CC

Packaging Details

NUDE PACKAGE

Product Description

Specifications

500cc ATV
EPA / EEC
Single-cylinder, water-cooled
4-Stroke
Steel bottom plate,Aluminum rim,Aluminum A-swing arm

Model number		500cc ATV
Warranty		6 months
Approval		EPA / EEC
Engine type		Single-cylinder, water-cooled
Engine stroke		4-Stroke
Valve configuration		SOHC
Bore*Stroke (mm/in)		92.075.0 / 3.62.9
Displacement (cc)		498 / 500
Compression ratio		10.2:1
Ignition type		DC C.D.I
Carburetion type		Mikuni
Maximum speed(km/h)		80 km/h
Transmission type		V-belt automatic
Primary drive (rear wheel)		Shaft
Reverse		Yes
Front tire		AT 25 x 8 - 12
Rear tire		AT 25 x 10 - 12
Front brake type		Dual disc brake
Rear brake type		Single disc brake

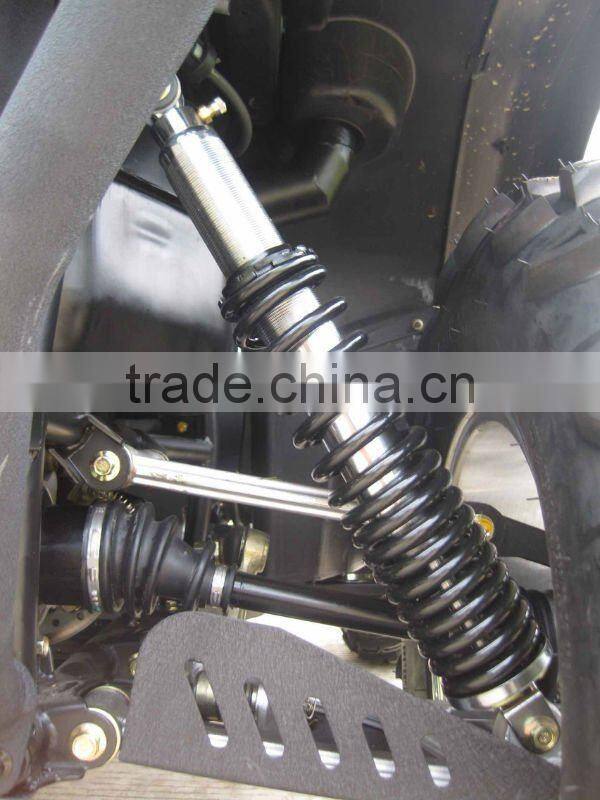

Front suspension		Double wishbone
Rear suspension		Double wishbone
Product dimensions (mm/in)		208511801175 / 82.146.546.3
Ground clearance (mm/in)		252 / 9.9
Wheelbase (mm/in)		1300 / 51.2
Minimum turning radius (mm/in)		3500 / 137.7
Dry weight (kg/lbs)		320 / 704
Fuel capacity (L/gal)		22 / 5.8
Seat height (mm/in)		865 / 34
Number of seats		2
Driveline type		Selectable 4X2 / 4X4 / 4X4-lock
Number of driveline modes		3
Limited slip differential		Front differential
Differential lock		Front differential lock
Front storage		Yes
Rear storage		No
Auto dump bed		No
Headlight (s)		Incandescent lamp
