YTO Brand C902 Crawler Tractor

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Shanghai/Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Crawler Tractor
By wheel	Other, Crawler Drive	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	66.18
Certificate	CE	Brand Name	YTO
Model Number	C902	Place of Origin	Henan, China
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

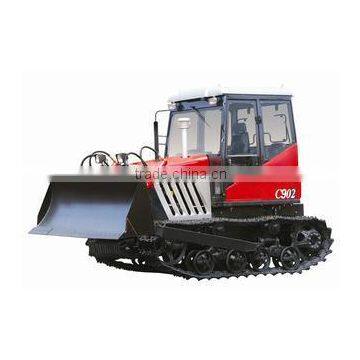

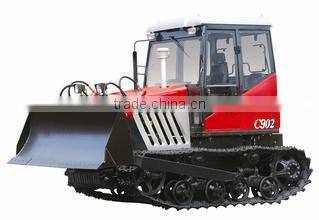

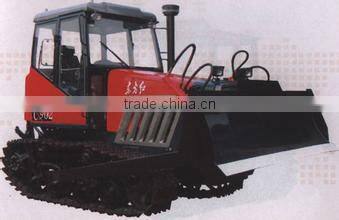

YTO Brand C902 Crawler Tractor

YTO-C902 belongs to C702/C802/C902 series in the power range of 70-90 hp, it features high earth moving efficiency, energy-conserved engine, (4F+2R) engagement sleeve transmission system, single-lever control, shuttle control, hydraulic booster for the steering clutch, floating brake,

new closed structure, the steering oil inlet solution, closed cab, optioned with AC.

Main Technical Parameters:

Engine model		LR6105T22 Diesel
Rated power/Rated rotation speed	kw/r/min	66.18/2200
Overall dimension (LWH) (without bulldozing blade)	mm	4364×1825×2766
Overall dimension (LWH) (with bulldozing blade)	mm	4870×2462×2766
Operating weight (without bulldozing blade)	kg	6400
Operating weight (with bulldozing blade)	kg	6890
Track width	mm	1435
Wheel base	mm	2622
Track width	mm	390
Specific ground contact pressure (w/o push scraper)	Kpa	43.3
Specific ground contact pressure (w push scraper)	Kpa	44.6
Traction force, gear 1	km/h/kn	3.15/46.41
Traction force, gear 2	km/h/kn	6.29/32.75
Traction force, gear 3	km/h/kn	7.30/25.25
Traction force, gear 4	km/h/kn	9.63/17.95
Reverse speed gear 1	km/h	3.39
Reverse speed gear 2	Km/h	6.85
Bulldozing blade
Type		Fixed straight scraper
H * W	mm	850×2462
Depth into soil	mm	290
Max. lifting height	mm	625
