16.0-18.0 Ton Hydraulic Forklift for Transportation in Warehouse

FOB Price

US$ 1 - 6,000 / Unit

1 Unit(Min. Order)

Port Shanghai China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanghai, China
Brand Name	GP	Model Number	CPCD160
Type	Other, Diesel Forklift Truck	Power Souce	Diesel Engine
Rated Loading Capacity	16000kg	Max. Lifting Height	3000mm
Min. Lifting Height	2230mm	Fork Length	900mm
Fork Width	130mm	Overall Dimensions	3845mm
Certification	CE SGS	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

16.0-18.0 Ton Hydraulic Forklift
1.Yanmar 4TNE92/94/98 engine
2.Transmission: TCM technology
3. EUROIII standard
4. CE SGS

16.0-18.0 Ton Hydraulic Forklift for transportion in warehouse

Advantage

1. Three alternatives of engine: Imported Isuzu C240, Yanmar 4TNE92/94/98 engine, and domestic Xinchai 490/495. Economical but powerful enough.

2. Transmission: with TCM technology.

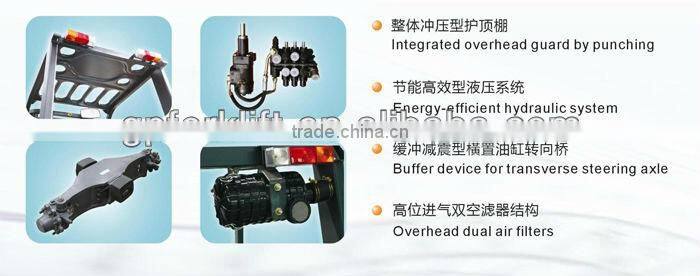

3. Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low tensional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving.

4. The optional imported engines meet EU stage-III mission control regulation and obtain EPA accreditation.

Specification:

Model	CPCD160	CPCD150	CPCD160	CPCD180
Overall height fork raised (with backrest)(mm)	5884	6105		6470
Mast Lifting height(mm)	4000
Free lift(mm)	0
Overall height fork lowered (mm)	3884	4105		4470
Backrest height (from upper face of forks)(mm)	1035	1175
Overall length (with forks)(mm)	6390	7220		7290
Overall length (without forks)(mm)	4890	5420		5490
Overall height(over head guard)(mm)	2875	3525		3580
Overall width(mm)	2450	3100		3180
Fork length(mm)	1500	1800
Fork thickness(mm)	87	87		96
Fork width (mm)	200	250		260
Lateral for adjustment (outside of fork)(mm)	508-2012	1476-2500
Overhead-guard clearance (from face of sent)(mm)	1000
Coupler height(mm)	630	760		825
Fork overhang(mm)	804	842		912
Rear overhang(mm)	986	1075
Wheel base(mm)	3100	3500
Tread(front)(mm)	1765	2300
Tread(read)(mm)	1890	2500		2500
Min under-clearance (bottom of mast)(mm)	260	305
Min turning radius(mm)	4600	5080
Min intersecting aisle (mm)	3780	4520		4560
Tilt angles(forward backward)(mm)	6/12

SPECIFCATION		Model
	CPCD160		CPCD150	CPCD160	CPCD180
	CD-QB	CD-QFB	F-	F-	F-
Load Capacity(kg)	16000		15000	16000	18000
Load Center (mm)	600		900
Power Type	DIESEL
Tire Type	Pneumatic
Lifting Speeds (With Load/Without Load(mm/s)	270/310		310/510		240/390
Lowering Speeds (With Load/Without Load(mm/s)	<600>=300
Max Driving Speeds(km/h)	24/26	24/27	30/32		32/34
Max Gradebility(%)	1a7.5
Brake Distance(m)	<=7
Wheel (Front/Rear)	4/2
Tire (Front/Rear)	12.00-20-18PR 12.00-20-18PR		12.00-24-16PR 12.00-24-16PR		14.00-24-24PR 14.00-24-24PR
Weight Distribution With Load (Front/Rear)(kg)	30490/ 3810	30530/ 3770	35460/ 3940	36460/ 4240	41400/ 4610
Weight Distribution Without Load (Front/Rear)(kg)	8660/ 9640	8690/ 9610	11710/ 12690	12010/ 12690	14910/ 13070
Battery Voltange/Capacity(V/Ah)	2x12/150
Service Brake	AIR-BOOST TYPY
Parking Brake	SHDE-DRUM TYRE
Internal Combustion Engine Model	DACHAI CA6DE1	Mitsubishi 6D16TLE2C	Mitsubishi 6D24-E1
Internal Combustion Engine Fuel Tank Capacity(L)	240		480
Transmission Number Of Speed Fwd / Revs Type	Mechanical shift	ELECTRIC -SHIFT
Total Weight(KG)	18300		24400	24700	28010

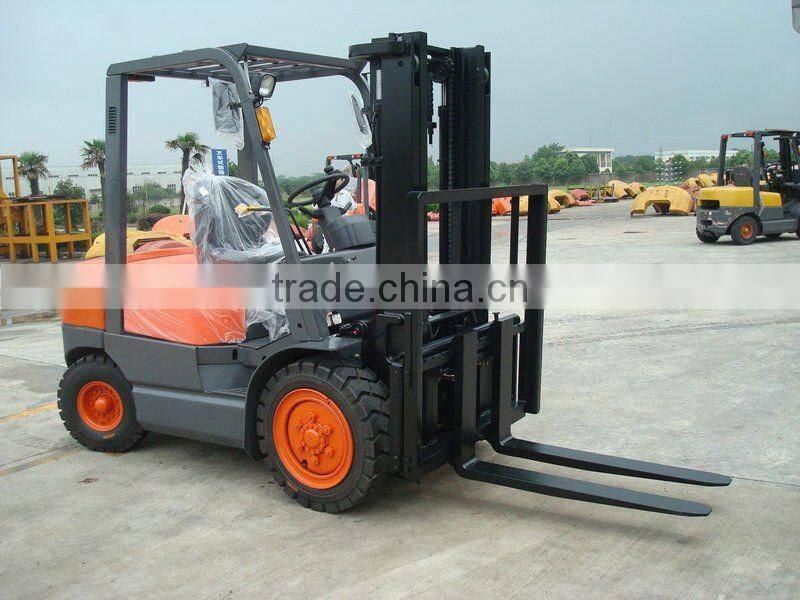

Picture:
