2014 hot sale mini trencher

FOB Price

US$ 653 - 660 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Garden Cultivator
Power Type	Gasoline	Power(W)	6300
Certification	iso 9001	Warranty	1 year
Use	ditch /earth	Place of Origin	Shandong, China
Brand Name	HQ	Model Number	1WG-4-135
Weight	132kg	Dimension(LWH)	1650X600X980mm
After-sales Service Provided	Engineers available to service machinery overseas

Technical parameters of mini trencher

Model		1WG - 4
Drive Type		2WD
LongWideHigh ( mm)		1650X600X980
Operating Speed (km/h)		Ditch 0.72 / Earth 0.9
Handrails to rotational positioning		360° rotation divide 12 position
Handrails to upper and lower positioning		4-6 position
Structural weight (kg)		132
Engine	Model	186 FS Diesel Engine
	Type	Single cylinder, Horizontal, Air cooling , Four stroke
	Rated speed r/min	1800
	Rated power	9 hp / 6.3 kw
Transmission system	Clutch	Belt Tension Wheel
	Connection method	B3200 Triangle tape B3200
	Tire Standard	4.00 - 7
Rotary Tillage Width (cm)	Ditch ≥ 12 / Earth 15 ~ 30
Trenching depth (cm)	≥20
Ridging height(cm)	≥10
Cutter Quantity	Ditch 8 / Earth 10
Rotary Blade Models	Ditch KG220 / Earth PT165
HS Code	84328090
Package size (mm)	1100X580X1000 for iron frame box
40'HQ Container load	150 units in SKD condition
40'HQ Container load	210 units in CKD. condition.
Price terms:	FOB Qingdao Port, China
Price validity:	30 days.
Warranty time:	12 months after shipment at the port of destination.
Payment	1) Payment is T/T30% in advance, 70%TT before shipment. 2) For sample, full t/t payment should be paid before shipment.
Delivery Time	Within one month after receive payment.

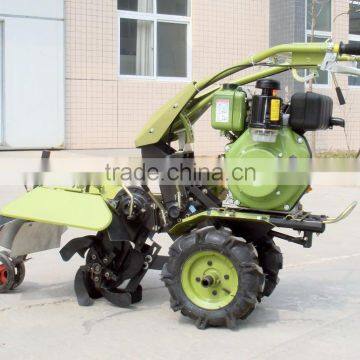

Photos of mini trencher
