2T Electric Forklift Good Price YTO CPD20

FOB Price

US$ 13,000 - 15,500 / Set

1 Set(Min. Order)

Port SHANGHAI/QINGDAO
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	YTO	Model Number	CPD20
Type	Powered Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	2000kg	Max. Lifting Height	6000mm
Min. Lifting Height	3000mm	Fork Length	1070mm
Fork Width	125mm	Overall Dimensions	238011504030
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

2T electric forklift Good price YTO CPD20

Product Description

1. Rated load: 2000kgs

2. Lifting height: 3000mm

2T Electric Forklifts,with CURTIS Semi AC Motor driver motor, large capacity battery, pneumatic and solid tire for option,Double & triple mast, full free lift & side shifter.

Specification: 2T electric forklift Good price YTO CPD20

Speciality parameter	Model					CPD20
	Power type					Battery
	Rated capacity				kg	2000
	Load center			d	mm	500
	Lift height			h2	mm	3000
	Mast tilt angle (forward/backward)			α/β	Deg	6/12
	Front overhang			L3	mm	483
	Wheel-base			L4	mm	1500
	Tread(front/rear)			b4/b5	mm	970/950
Performance parameter	Travel brake					Hydraulic-Foot pedal
	Parking brake					Mechanical-Hand lever
	Lift speed(with/without load)				mm/s	260/400
	Lower speed (with/without load)				mm/s	(with load)300
	Travel speed (with/without load)				km/h	11/12
	Max. gradeability (with load)				%	1
Power, transmission and others	motor	Driving motor	Model			XQ-6.3-1T
			Rated power		kw	6.3
			Rated rotation		r/min	1200
		Working motor	Model			XQD-8.6-C
			Rated power		kw	8.6
			Rated rotation		r/min	1550
	Controller	Manufacturer				GE
	Controller	Type				MOSFET
	Battery	Voltage			V	48
		Capacity			Ah	630
		Size(L×W×H)			mm	820×1065×520
	Gearbox	Transmission type				Mechanical
	Tire	type				Pneumatic tyre
		Model	Front			7.00-12-12PR
		Model	Rear			18×7-8-14PR
Other	Self.weight				kg	3970
	Free lift height			h4	mm	140
	Fork	Thickness×Width×Length		c×b×a	mm	40×125×1070
	Overall dimensions	Overall length(without forks)		L2	mm	2380
		Overall width		b1	mm	1150
		Overall height	Extended height(mast)	h1	mm	4030
			Lower height (mast)	h3	mm	1995
			Overhead guard	h7	mm	2150
	Min. turning radius			Wa	mm	2050
	Min. under ground clearance	Under mast		m1	mm	110
	Min. under ground clearance	Center of wheel-base		m2	mm	120

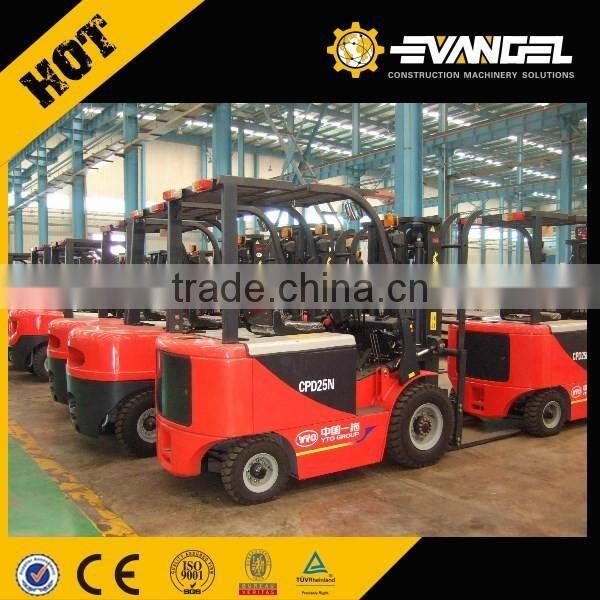

Photos: 2T electric forklift Good price YTO CPD20
