Press Screw Separator/Animal Manure Separator

Press Screw Separator/Animal Manure Separator / cow manure separator /pig manure separator/Screw Press Separtor

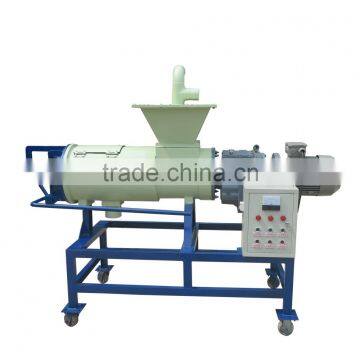

The LX manure separator is a screw press that divides the animal waste into two streams: the manure slurry and the solids. The liquid is then drained into a waste lagoon or storage tank while the dry solids can be put to a variety of uses, including compost, fertilizer and animal bedding. The separator could also work with microbial treatment system to enhance each other’s benefits and create an even more efficient means of manure management.

Solids separation is an excellent way to extract the nutrient-rich solids for use in other applications such as fertilizer or composting. The fertilizer value of treated manure is much better than untreated, and taking out recalcitrant solids with a separator further enhances the manure treatment. So the separation and biological treatment together decreases or even eliminates the amount of nitrogen fertilizer the farms need to purchase.

Specification

Working capacity

Pig manure slurry: 20-25M³/hour

Cattle manure slurry: 10-15M³/hour

Chicken manure slurry: 7-10M³/hour

Anaerobic fermentation slurry: 15-20M³/hour

Power: 380V/50Hz, 3 Phases, 9Kw

Moisture content after separation: 40-55%

Dimension: 2000x770x1500mm
