Galvanized steel mesh panels
- Xingang Tianjin
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | MAISHI | |
| Model Number | MS88 | Material | Other, Galvanized Iron Wire, Galvanized Iron Wire | |
| Type | Wire Cloth | Application | Fence Mesh | |
| Hole Shape | Square | Aperture | 0.5cm-10cm | |
| Wire Gauge | 0.5mm_3mm |
Product Description

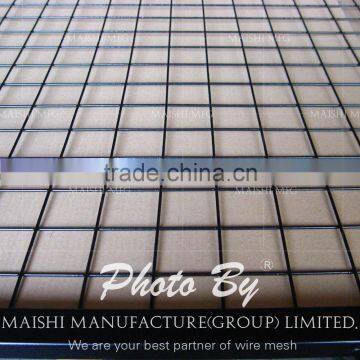

Galvanized steel mesh panels:
The goods can be returned or compensated if the quality is not ok.
Hebei Maishi Wire Mesh Group supply Galvanized Welded Wire Mesh, Stainless Steel Welded Wire Mesh and PVC Welded Wire Mesh with high quanlity,favorable price and excellent service.
Hot Dipped Galvanzied Welded Wire Mesh
Hot Dipped Glavanized Welded Wire Mesh Fence
Hot Dipped Welded Wire Mesh
Welded Mesh
Opening: 1/4"x1/4" to 6"x6"
Wire diameter: 0.45mm-4.5mm
Width: 1m,1.22m,1.524m,1.82m,2.0m etc., custom require available at request.
Roll length: 15m,30m,50m etc,. custom require available at request.
Material:
Electro galvanized wire, hot-dipped galvanized.
We choose the best low carbon wire or stainless steel wire material available in China.
The high quality & reasonable price product is from the right material.
Welding type:
Electro galvanized before welding wire mesh
Electro galvanized before welding wire mesh
Hot-dipped galvanized before welding wire mesh
Hot-dipped galvanized before welding wire mes
Iron/galvanized wire+pvc coated
Stainless steel 304,316 wire
We choose the best low carbon wire or stainless steel wire material available in China.
The high quality & reasonable price product is from the right material.
Produce:
Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement;
The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.
Package: in waterproof paper in rolls,custom packing available at request.
Specification List of Welded Wire Mesh | ||
Opening | Wire diameter | Width |
1/4" x 1/4" | 0.5mm-0.7mm | 300mm-1828mm |
3/4" x 3/4" | 0.7mm-2.0mm | 300mm-1828mm |
3/8" x 3/8" | 0.7mm-1.1mm | 300mm-1828mm |
5/8" x 5/8" | 0.8mm-1.2mm | 300mm-1828mm |
1/2" x 1/2" | 0.45mm-1.6 mm | 300mm-1828mm |
1" x 1" | 0.7mm-3.0mm | 300mm-2000mm |
1" x 1/2" | 0.8mm-1.6mm | 300mm-1828mm |
1-1/2" x 1-1/2" | 0.7mm-3.5mm | 300mm-1828mm |
1" x 2" | 1.6mm-2.1mm | 300mm-1828mm |
2" x 2" | 0.7mm-4.0mm | 300mm-2500mm |
2" x 3" | 1.5mm-3.5mm | 300mm-2000mm |
2" x 4" | 2.0mm-4.0mm | 300mm-1828mm |
3" x 3" | 1.0mm-4.5mm | 300mm-2500mm |
3" x 4" | 1.5mm-4.5mm | 300mm-2000mm |
4" x 4" | 1.0mm-4.5mm | 300mm-2500mm |
5" x 5" | 2.5mm-4.5mm | 300mm-2500mm |
6" x 6" | 2.5mm-4.5mm | 300mm-2500mm |
Technical Note: | ||
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Application:
› Guarding
› Railings
› Architectural
› Ceiling Tiles
› Partition Systems
› Farm
6 x 6mm hole - Mouse protection
13 x 13mm hole - Fruit cages, bird protection, engineering uses
13 x 25mm hole - Bird protection, enclosures for small animals
20 x 20mm hole - Rat and squirrel protection
25 x 25mm hole - Fox protection, cat and dog enclosures
50 x 50mm hole - Fox protection, dog enclosures
Payment term:
T/T(30%T/T paid in advance and 70% paid against of BL copy), irrevocable L/C at sight, can be negotiable . .
Sample:free sample sent on request.
Stock & Loading:
We have enough stock for normal sizes in case of the urgent orders.
