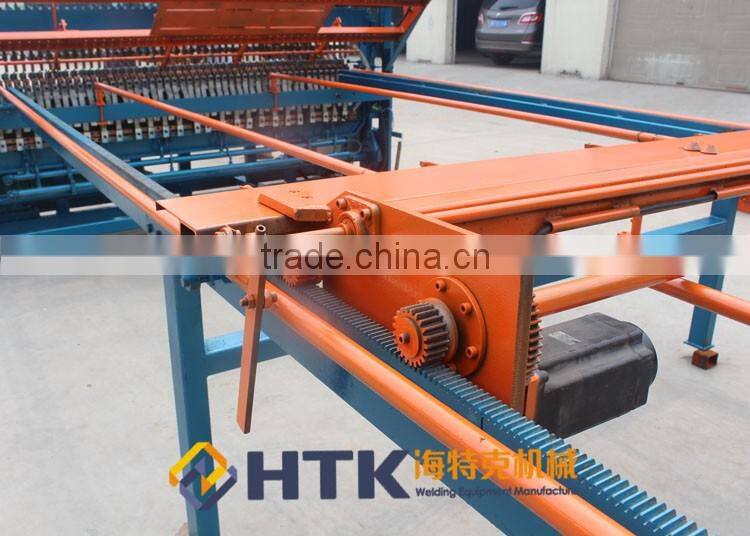

High Quality Automatic Welded Fence Mesh Machine/Welded Wire Fence Panel Machine/Iron Fence Wire Mesh Welding Machine
- Tianjin Qingdao Shanghai etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
HTK Factory Automatic Reinforcing Wire Mesh Welding Machine
-
Full Automatic Welding Wire Mesh Making Machine With Best Price (ISO9001 Manufacturer)
-
Factory for Sale Automatic Building Steel Wire Mesh Welding Machine
-
2.5mm-6.0mm Galvanized Iron Wire Mesh Fence Welding Machine With Best Price
-
Direct Factory Sale Heavy Welded Wire Mesh Machine
-
Construction Wire Mesh Welding Machine/Welded Mesh Fence Machine
Product Details
| Place of Origin | Hebei, China | Brand Name | HTK | |
| Model Number | DNW-4 | Voltage | 380V/220V/440V | |
| Current | 60A | Rated Capacity | 120 KVA x 4 | |
| Rated Duty Cycle | 50% | Dimensions | 3m x 1.6m x 1.8m | |
| Weight | 2.5T | Usage | wire mesh welding machine | |
| Certification | ISO 9001:2008, BV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Quality Automatic Welded Fence Mesh Machine/Welded Wire Fence Panel Machine/Iron Fence Wire Mesh Welding Machine

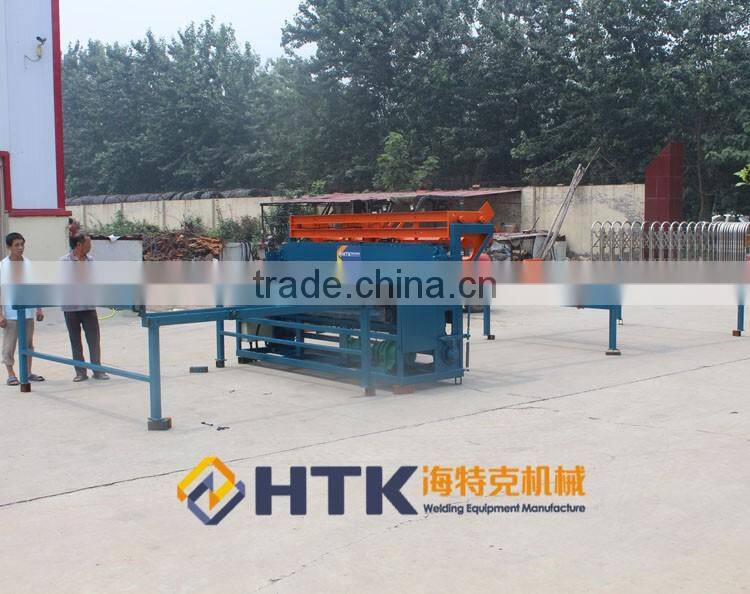

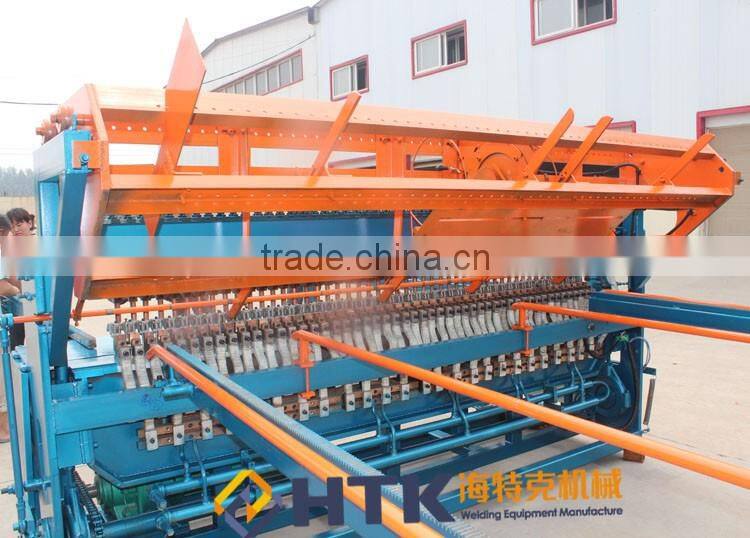

I. Descriptions Of Welded Wire Mesh Machine
This equipment is the mechanical electronic computer integration advanced welds the net equipment.the organzine may adjust may appear between the latitude and the latitude on the identical standing net the different size hole.the welding transform voltage uses the new highly effective transform voltage mesh, the wire diameter scope which the expansion may weld.The machine welds the net piece smoothly, diagonal line error small, is easy to operate.
II. The Specifications Of Welded Wire Mesh Machine
DNW-4 | DNW4-1 | DNW4-2 | |||
Wire diameter | 2.8-5.0mm | Wire diameter | 3.0-6.0mm | Wire diameter | 5.0-8.0mm |
Weft spacing | 25-200mm | Weft spacing | 25-200mm | Weft spacing | 50-300mm |
Warp spacing | 50-300mm | Warp spacing | 50-300mm | Warp spacing | 50-300mm |
Welding width | 2500mm | Welding width | 2500mm | Welding width | 2000mm |
Welding speed | 55times/min | Welding speed | 55 times/min | Welding speed | 55 times/min |
Welding point | 32 | Welding point | 51 | Welding point | 41 |
Wire form | Precut wire | Wire form | Precut wire | Wire form | Precut wire |
Rated voltage | 380V | Rated voltage | 380V | Rated voltage | 380V |
Rated power | 160KVA x 4 | Rated power | 180KVA x 6 | Rated power | 200KVA x 5 |
Note:Special type can be made according to client's requiment.
The rated voltage can be made as your requirement.
III. The Details Of Welded Wire Mesh Machine
| Welding Material | Galvanized iron wire/black wire/ drawing wire |
| Control Systerm | PLC control systerm |
| Machine Cooling Device | Water colling |

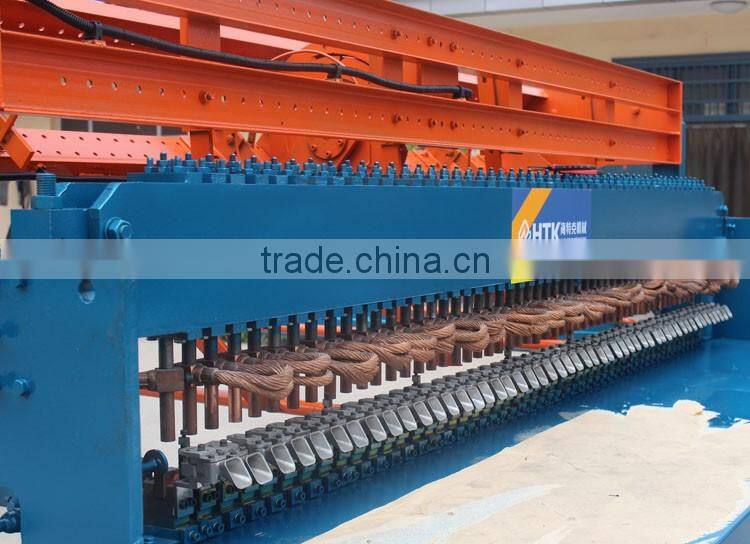

| Welding Electrode | Picks chromium copper |
| Net Systerm | CNC stepper motor control |

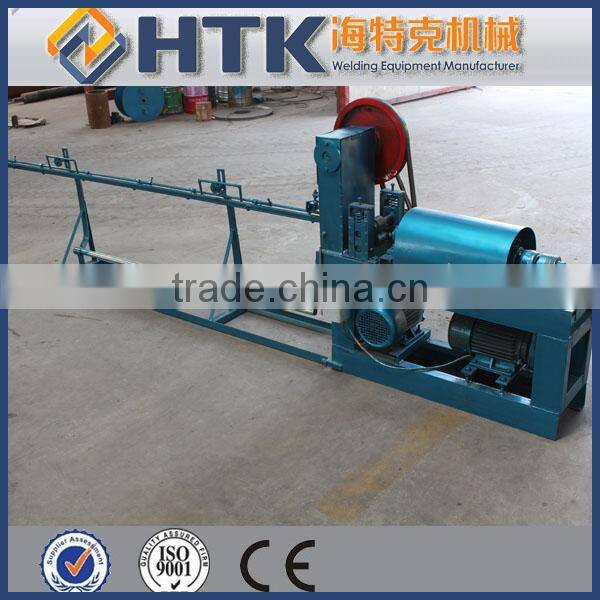

| Machine Accessories | Wire straightening and cutting machine |
Welded Wire Mesh Machine Accessories
| MOQ | 1Set |
| Capacity | 5 sets per month |
| Port | Tianjin, Qingdao, Shanghai, etc |
| Delivery Time | 7 days(stock goods), 20days after received the deposit |

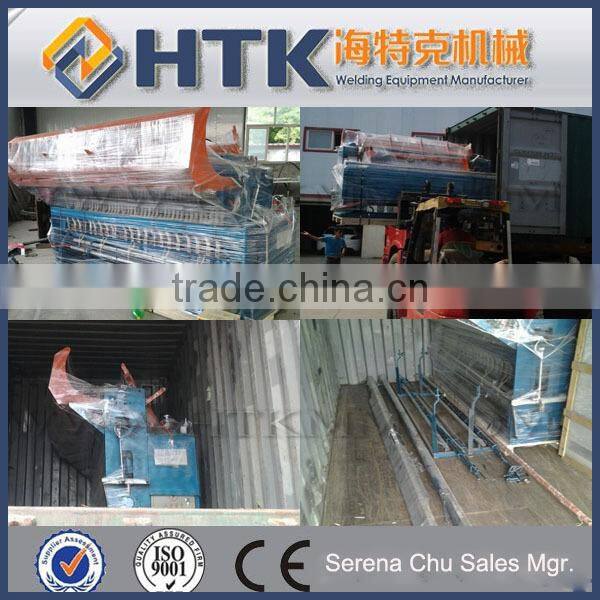

| Packaging | Plastic films and wooden pallet, cabinet packed by wooden box |
Pre-sales Service
1.Reply you enquiry in 24 hours working hours
2.Experienced staffs answer all your questions about the machine
3.Exclusive and unique solution can be provided to our customer by your well-trained and professional engineer.
After-sales Service
1.Maintenance period: one year
If the buyers need, we can send our technical staff to the buyers’ place to debug the machine and providing the training in 20 days after the machines arrive at the destination port.
2.The debugging fees: free
3.The training fees: USD80-100/day for each technical
4.The numbers of technical persons: most often one technical person per net machine
5.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’ account. During the maintenance period:the parts damaged non-artificially will be provided free of charge. If you need the technicians, we will assign the expertised staff to your company. And the fees, such as round-trip tickets, accomodation etc, are all in your account. 6.After the maintenance period: If you need the machine parts,we will provide it as our cost.
Hebei HTK Welding Equipment Manufacture Co., Ltd
Formerly Known as Shenzhou City Chaoyi Wire Mesh Equipment Co.,Ltd
Business Type: Direct Factory , Manufacturer
Location: Shezhou,Hebei, China(Mainland)
Year Established: 2005
We have 2 senior engineers,10 senior technicians,more than 100 employees
1.> Products: welded wire mesh machine, Chain link fence machine, field fence machine
2.> Supply ability: we have the complete accessories, 10 sets per month.
3.> Warehouse: We have many spot goods to ensure the needs of customers
4.> Main Market: Algeria, India, Thailand, Burma, South Africa, South Asia, Egypt, etc
Q: Does your company is a factory or trading company?
A.We have two factory ourself. and we have do business more than 10 years.
Q: What's the producing time and delivery time?
A.If we have stock, delivery to Tianjin port about 5 days, No stock, it wil be 20-30days after received your deposit.
Q: What's the departure port?
A.Usually Tianjin Port, Guangzhou, Qingdao, Shanghai and other ports in China.
Q: what's the packing of the machine
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Q: What's the payment term?
A.Usually by T/T( 30% in Advance), L/C at sight.
Q: Can I change the motor as my local voltage?
A.We can change the voltage as your requirement, and there's no extra charge.
Q: Can you OEM( use my logo and color)?
A.We can OEM with your logo and color design.
Q: Does machine have guarantee period?
A. the guarantee period is one year. it is free to change the part.
Q: How do your control quality?
A.We have an inspection team to check the products at all stages of the manufacturing process-raw material, woven fence process or test finished products, etc. 100% inspection in assembly line to achieve the required quality levels.
Any interests in our welded wire mesh machine,pls feel free to contact us,competitive price will be quoted soon.
About the machine, we have very models, The four important elements will help you to choose, Wire Diameter, Width, Hole Size, Length. Due to the voltage is different from all over the world. so the voltage is also important.
