Home > Products > Network Accessories > IEEE 802.11b/g/n Network LAN Adapter Card,802.11b/g/n Wi-Fi USB Wireless Network Card for pc

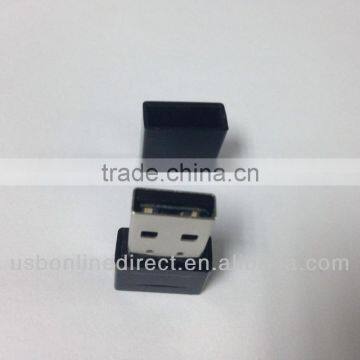

IEEE 802.11b/g/n Network LAN Adapter Card,802.11b/g/n Wi-Fi USB Wireless Network Card for pc

FOB Price

US$ 3.6 - 4.2 / Piece

100 Pieces(Min. Order)

Port Shenzhen 802.11b/g/n network lan adapter card
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Server
Type	Wireless	Kind	External
Transmission Rate	54Mbps	Interface Type	USB
Certification	CE, ROHS, FCC, CE,FCC,ROHS	Brand Name	USBONLINE
Model Number	CECP0083	Place of Origin	Guangdong, China

Product Description

Specifications

IEEE 802.11b/g/n Network LAN Adapter Card,802.11b/g/n Wi-Fi USB Wireless Network Card for pc

Product Description ( 802.11b/g/n network lan adapter card)

IEEE 802.11b/g/n Network LAN Adapter Card,802.11b/g/n Wi-Fi USB Wireless Network Card for pc

Features:

Project Name 802.11b,g,n WIFI Module 1T1R
Model NO FN-8134EU1
Drawing: LF WEI Check Approved: Jim HU

Introduction
FN-8113EU is a highly integrated and excellent performance Wireless LAN (WLAN) USB2.0
network interface device. High-speed wireless connection up to 150 Mbps.
1.1 Overview
The general hardware for the module is shown in Figure 1. This WLAN Module design is based
on Realtek RTL8188Eus. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out)
Wireless LAN (WLAN) USB2.0 network interface controller complying with the 802.11n
specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is
designed to provide excellent performance with low power Consumption and enhance the
advantages of robust system and cost-effective.

System Characteristics
Main Chipset Realtek RTL8188EUS
Operating Frequency 2.400~2.4835GHz
WIFI Standard iEEE802.11b/g/n 1*1
Modulation 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)
802.11 g/n: OFDM
PHY Data rates 802.11b: 11,5.5,2,1 Mbps
802.11g: 54,48,36,24,18,12,9,6 Mbps
802.11n: up to 150Mbps
Receiver Sensitivity 130M : -70dBm@10% PER; 108M : -70dBm@10% PER; 54M :
-70dBm@10% PER; 11M:-87dBm@8% PER; 6M:-90dBm@10%
PER; 1M:-92dBm@8% PER
Host Interface USB 2.0
Operation Range Up to 150meters in open space
RF Power <14dBm@11n,<18dBm@11b,<15dBm@11g
RF Antenna External Antenna (2.4GHz 50Ohm Resistance)
OS Support Android / Win CE /iOS /Linux/Windows 2000/XP/Vista/WIN7
Security WEP,TKIP,AES,WPA,WPA2
Power Consumption 5Vdc 75mA Max
Operating
Temperature
-20~ +45°C Ambient Temperature
Storage Temperature -40~ +70°C Ambient Temperature
Humidity 5% to 90%maximum (non-condensing)
Dimension Typical L18.30*W16.50*H1.80mm

More pictures for your review:

Packaging & Shipping ( 802.11b/g/n network lan adapter card)

IEEE 802.11b/g/n Network LAN Adapter Card802.11b/g/n Wi-Fi USB Wireless Network Card for pc

Package included:
* Blister Packing

Shipping: By DHL, EMS, UPS, FedEx, China Post

Our Services (802.11b/g/n network lan adapter card)

IEEE 802.11b/g/n Network LAN Adapter Card,802.11b/g/n Wi-Fi USB Wireless Network Card for pc

Company Information (802.11b/g/n network lan adapter card)

IEEE 802.11b/g/n Network LAN Adapter Card,802.11b/g/n Wi-Fi USB Wireless Network Card for pc

Why did our Customers choose us?

1.Strong R&D support

We have a strong R & D team with rich experience in the filed of audio products Fully possess the capability to do 2D design, 3D design, prototype, and so on.

2.Complete Facilities

Having own plastic injection center for doing all the injections by ourselves;

With coating and printing workshop for plastic coating, UV, and silk or pad printing;

Possessing advanced testing equipments for strict quality control & new product development; With package sealing machines and ultrasonic machines.

3.10 Years of Experiences

Since the establishment, in 2003, we have been dedicated to providing customers with customer satisfaction oriented OEM & ODM services and specialized in designing, manufacturing and marketing medium and usb charger car charger, mini usb charger and so on.

4.Long Term Supply Chain

Pad printing Possessing advanced testing equipments for strict quality control & new product development With package sealing machines and ultrasonic machines.

To get more info., Pls kindly check our website:

1.For general computer accessories:

2.For ipad&iphone accessories:

FAQ (802.11b/g/n network lan adapter card)

IEEE 802.11b/g/n Network LAN Adapter Card,802.11b/g/n Wi-Fi USB Wireless Network Card for pc

How could I get samples?
We can provide samples if you have?a Fedex or DHL account or other courier freight collectable account and agree?to pay the courier freight.or,you send us the samples charge together with the courier cost by T/T.

How much the courier freight will be for the samples?
Courier freight depends on the quantity, weight and carton size and your area.

How can I get your price list?
        Please send us your email or fax for our price list and order information.

Can we have our logo or company name to be printed on your products or the package?
        Yes, you can. We can print your Logo and company name etc in our products by silk screen printing according to your artwork design, and the minimum quantity for silk screen printing is 2000 units per logo. You can send us the artwork by email in JPG, TIF, AI, EPS, TIFF or CorelDraw formats.

What's your usual payment term for orders?
We accept terms of T/T in advance or L/C at sight, and T/T preferable under US$20,000.

Is there other payment method available?
Yes, we accept paypal payment for transaction below USD 2000.00,

How can we become your sole distributor?
If you can sell our products USD20,000 to USD50,000 per month, you could be one of our distributor in your city or area; If you can sell our products worth more than USD50,000 per month, you could be our sole distributor in the country.
