802.11b/g/n Wi-Fi USB Wireless Network Card for pc/150Mbps Mini Wireless USB Adapter support Windows 2000,XP/wifi dongle

Specifications

802.11b/g/n Wi-Fi USB Wireless Network Card for pc/150Mbps Mini Wireless USB Adapter support Windows 2000,XP/wifi dongle

Features:

Project Name  802.11b,g,n   WIFI   Module 1T1R
Model NO  FN-8134EU1
Drawing: LF WEI  Check Approved: Jim HU

Introduction
FN-8113EU  is  a  highly  integrated  and excellent performance Wireless  LAN  (WLAN)  USB2.0
network interface device. High-speed wireless connection up to 150 Mbps.
1.1 Overview
The general hardware for the module is shown in Figure 1. This WLAN Module design is based
on Realtek RTL8188Eus. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out)
Wireless  LAN  (WLAN)  USB2.0  network  interface  controller complying  with  the  802.11n
specification.  It  combines  a  MAC,  a  1T1R  capable  baseband, and  RF  in  a  single  chip.  It  is
designed  to  provide  excellent  performance  with  low  power  Consumption  and  enhance  the
advantages of robust system and cost-effective.

System Characteristics
Main Chipset  Realtek RTL8188EUS
Operating Frequency  2.400~2.4835GHz
WIFI Standard  iEEE802.11b/g/n 1*1
Modulation  802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)
802.11 g/n: OFDM
PHY Data rates  802.11b: 11,5.5,2,1 Mbps
802.11g: 54,48,36,24,18,12,9,6 Mbps
802.11n: up to 150Mbps
Receiver Sensitivity  130M : -70dBm@10%  PER;  108M : -70dBm@10%  PER;  54M :
-70dBm@10%  PER;  11M:-87dBm@8%  PER;  6M:-90dBm@10%
PER; 1M:-92dBm@8% PER
Host Interface  USB 2.0
Operation Range  Up to 150meters in open space
RF Power  <14dBm@11n,<18dBm@11b,<15dBm@11g
RF Antenna   External Antenna (2.4GHz 50Ohm Resistance)
OS Support  Android / Win CE /iOS /Linux/Windows 2000/XP/Vista/WIN7
Security  WEP,TKIP,AES,WPA,WPA2
Power Consumption  5Vdc 75mA Max
Operating
Temperature
-20~ +45°C Ambient Temperature
Storage Temperature  -40~ +70°C Ambient Temperature
Humidity  5% to 90%maximum (non-condensing)
Dimension  Typical   L18.30*W16.50*H1.80mm

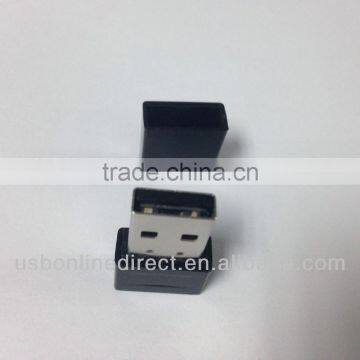

More pictures for your review:

Shipping: By DHL, EMS, UPS, FedEx, China Post
