Kjeldahl protein analyzer

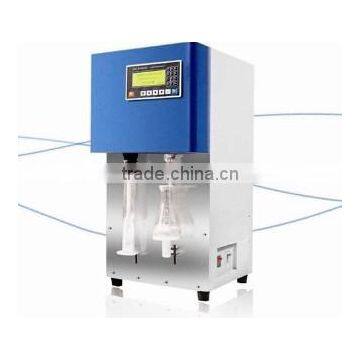

Automatic Kjeldahl Nitrogen Analyzer

III.  Safety guarantee system:

1. Electric leakage protection----protect personal safety of operators

2. Digestion tube absence protection----ensure system not working under the situation of digestion tube uninstalled.

3.  Safety door protection----ensure safety of operators during distillation

4.  Steam system overpressure protection----avoid danger caused by too high pressure in steam system

5.  Distillation system water shortage protection---the system will stop working if no water in distillatory kettle or too low water level

6. Prewatering mode-- firstly add a certain amount of water to dilute the concentrated sulfuric acid in digestion tube before adding alkali, properly reducing sharp reaction of acid and alkali.

7. Alternate alkalifying—the alkalifying process is not once and instant but at interval, properly reducing acid or alkali overreaction.

V.    Technical index:

1. Measurement range:0-250mg N

2.   Distillation speed ≈15—20ml/min; ≤5-8min for each sample

3. Recovery: 99.5%±0.5%

4.   Distillation time: arbitrarily set between 0—999s

5.   Consumption of cooling water: 1.2L—4L/min

6.   Addition of water, alkali and acid: 0—150ml

7. Operation mode: manual distillation/automatic distillation dual mode

8.  Automatic distillation dual mode: freely set 10 kinds of distillation programs

9. Voltage: AC220V / 50HZ

10. Power: 1200w

11. Dimension: 340mm*380mm*680mm
