small colloid mill for food processing
- Shanghai or Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BLS | |
| Model Number | JML | Type | Grain Processing Equipment | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

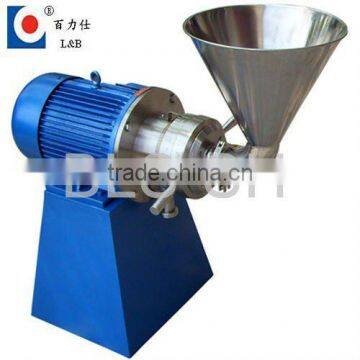

Small colloid mill for food processing
Operation Principle
Colloid mill works by shearing, grinding and high-speed stirring. Grinding process occurs in the relative movement between two teeth with one revolving in high speed and another still, which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl. The above forces effectively evenly disperse, emulsify, smash material.
JM-F/L is a new equipment that wet processes superfine grain, which is used to homogen, emulsify, mix and smash various semi-liquids, liquids and late emulsion.
colloid mills | um | t/h | mm | mm | mm | mm | r/min | kw | mm | kg |
Model | Fineness | Output | Diameter of Scafe | Cooling Pipe | Diameter of Inlet | Diameter of Outlet | Speed | Power | Outline Dimension | Weight |
JML-50 | 2-40 | 0.01-0.1 | 50 | 10 | 30 | 20 | 2800 | 1.5 | 270*500*700 | 55 |
JMF-50 | 2-40 | 0.01-0.1 | 50 | 10 | 30 | 20 | 2800 | 1.1 | 255*500*700 | 50 |
JML-65 | 2-40 | 0.02-0.5 | 65 | 10 | 30 | 20 | 2800 | 1.5 | 270*500*700 | 57 |
JMF-65 | 2-40 | 0.02-0.5 | 65 | 10 | 30 | 20 | 2800 | 2.2 | 500*345*675 | 70 |
JMW-80 | 2-40 | 0.3-1 | 80 | 12 | 48 | 25 | 2800 | 3 | 630*380*790 | 75 |
JML-80 | 2-40 | 0.3-1 | 80 | 12 | 48 | 25 | 2800 | 3 | 335*570*920 | 85 |
JMF-80 | 2-40 | 0.3-1 | 80 | 12 | 48 | 25 | 2800 | 4 | 700*570*920 | 140 |
JMW-100 | 2-40 | 0.5-2 | 100 | 12 | 66 | 25 | 2800 | 5.5 | 680*370*900 | 115 |
JML-100 | 2-40 | 0.5-2 | 100 | 12 | 66 | 25 | 2800 | 5.5 | 390*645*980 | 145 |
JMF-100 | 2-40 | 0.5-2 | 100 | 12 | 66 | 25 | 2800 | 5.5/7.5 | 800*645*980 | 230 |
JMW-120 | 2-40 | 0.5-3 | 120 | 12 | 66 | 32 | 2800 | 7.5 | 680*370*900 | 120 |
JML-120 | 2-40 | 0.5-3 | 120 | 12 | 66 | 32 | 2800 | 7.5 | 390*645*980 | 150 |
JMF-120 | 2-40 | 0.5-3 | 120 | 12 | 66 | 32 | 2800 | 7.5 | 800*645*980 | 240 |
JMW-140 | 2-40 | 0.5-4 | 140 | 12 | 66 | 32 | 2800 | 7.5 | 680*370*900 | 160 |
JML-140 | 2-40 | 0.5-4 | 140 | 12 | 66 | 32 | 2800 | 7.5 | 390*745*1020 | 180 |
JMF-140 | 2-40 | 0.5-4 | 140 | 12 | 66 | 32 | 2800 | 7.5/11 | 800*750*1020 | 290 |
JMF-180 | 2-40 | 1.-7 | 180 | 12 | 100 | 38 | 2800 | 11./15 | 900*850*1200 | 360 |
JMF-200 | 2-40 | 1.-10 | 200 | 12 | 100 | 38 | 2800 | 15/18.5 | 900*850*1200 | 400 |
W L F | ||||||||||
...
