Product Details
| Condition | New | Mixer Type | Agitator | |
| Product Type | Paint | Application | Liquid | |
| Additional Capabilities | Milling | Place of Origin | Zhejiang, China | |
| Brand Name | BLS | Model Number | Q100-20000L | |
| Max. Loading Capacity | 20000L | Voltage | 220V or 380V | |
| Power(W) | 0.55KW-5.5KW | Dimension(L*W*H) | As per request | |
| Certification | CE, ISO, SGS | Warranty | 1 year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

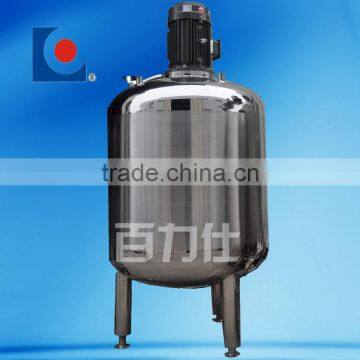

Paint mixing tank
Application range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.
2. Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristic:
1. Made of single-layer stainless steel structure.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements).
7. Ladder (According to customer requirements).
8. Liquid level meter and level controller (According to customer requirements ).
It can be made according to special requirements of customers. Total height (H) is in accordance with outlet height of 800 mm. If outlet height is changed, then total height(H) shall also be adjusted.
| Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet | Heat preservation layer | Motor power | Blending speed |
| (L) | (mm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
| 1000 | 1060*1220 | 2550 | 51 | 60 | 1.1 | 960 |
| 1500 | 1160*1500 | 2850 | 51 | 60 | 1.1 | 960 |
| 2000 | 1340*1500 | 2900 | 51 | 60 | 1.1 | 960 |
| 3000 | 1410*2000 | 3400 | 51 | 60 | 1.5 | 960 |
| 4000 | 1620*2000 | 3450 | 51 | 60 | 1.5 | 960 |
| 5000 | 1810*2000 | 3500 | 51 | 60 | 2.2 | 960 |
| 6000 | 1980*2000 | 3550 | 51 | 60 | 2.2 | 960 |
| 7000 | 1930*2440 | 4000 | 51 | 60 | 3 | 960 |
| 8000 | 2060*2440 | 4000 | 51 | 60 | 3 | 960 |
| 9000 | 2180*2440 | 4050 | 51 | 60 | 4 | 960 |
| 10000 | 2300*2440 | 4050 | 51 | 60 | 4 | 960 |
| 12000 | 2270*3000 | 4600 | 51 | 60 | 5.5 | 960 |
| 15000 | 2530*3000 | 4700 | 51 | 60 | 5.5 | 960 |
| 20000 | 2640*3660 | 5400 | 51 | 60 | 5.5 | 960 |
Please contact our After-sales service department in time within 30 days after you received the cargo. | |
Tel: 0086-13157735760 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
Process | Please provide the copy of Sales Contract and describe the problems appeared. |
Problems confirmation: | |
Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
Serious problem: | |
a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
b | Have a negotiation of the compensation and sign agreements |
c | Our After-Sales Department will perform the duties as the agreements |
...
