3000 Gallon Top Entry Small Impeller Mixing Tank for Sales

FOB Price

US$ 1,500 - 15,000 / Set

1 Set(Min. Order)

Port Ningbo
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Mixer Type	Agitator
Product Type	Cosmetic	Application	Other, 3000 gallon Top Entry Small Impeller Mixing Tank for sales, cosmetic processing machine
Additional Capabilities	Other, impeller mixer	Place of Origin	Zhejiang, China
Brand Name	BLS	Model Number	GMT
Max. Loading Capacity	5000L	Voltage	110V~480V
Power(W)	0.75KW~45KW	Dimension(LWH)	Custom Made
Certification	ISO9001	Warranty	12 Months
After-sales Service Provided	Overseas service center available

Product Description

3000 gallon Top Entry Small Impeller Mixing Tank for sales

Brand: L&B

Material : stainless steel 304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2008

Product Name:	3000 gallon Top Entry Small Impeller Mixing Tank for sales
Description:	Designed according to ISO9001 standard, widely used for mixing and blending liquid media in the food-processing, cosmetics and pharmaceutical industries etc.
Heating method	By electricity (oils or water), by steam, by gas
Material:	SS304/SS316
	jacket: miller board, hollow jacket or semi-tube, coil pipe jacket
	insulation layer: PU foam
	as to the thickness, we can make it according to your requirement.
Optional Configuration	1.manhole
	2.CIP spraying ball
	3.adjusting feet
	4.sample valve
	5.temperature gauge
	ure gauge
	7.level gauge
	8.sanitary breathing cover
	9.Dismountable materials input pipe assembly

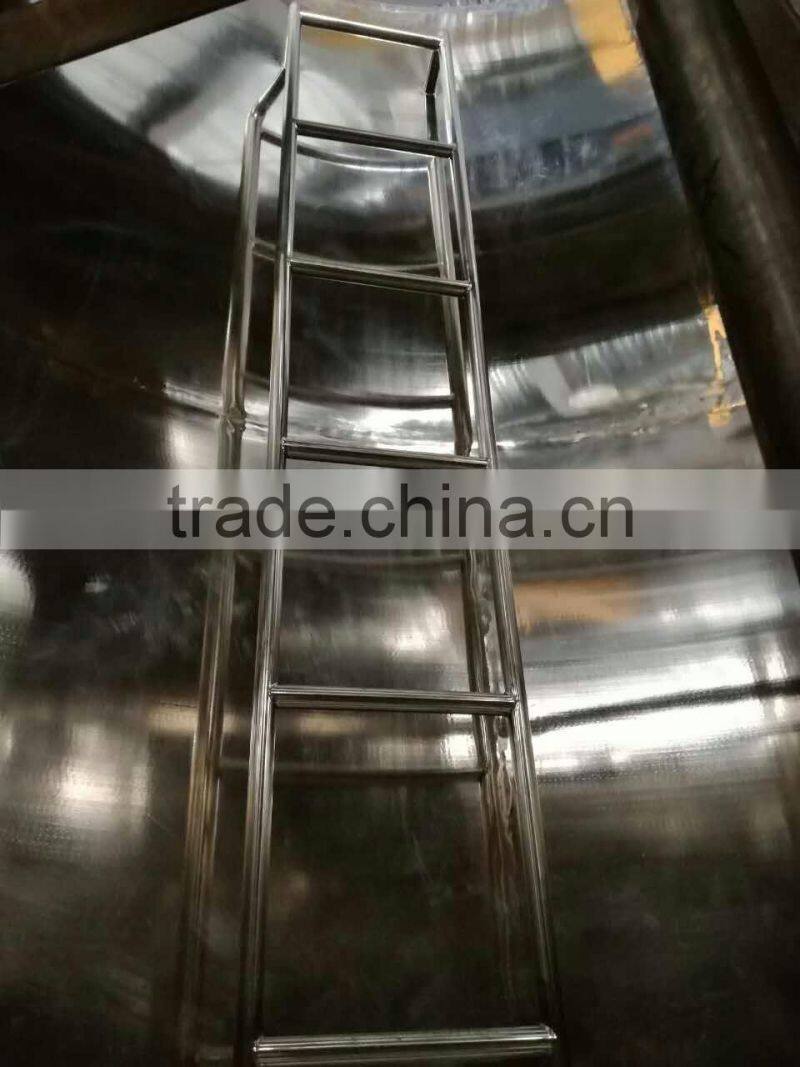

	10.Ladder
	11.Liquid level meter and level controller
	12.Eddy-proof board
Capacity:	50L-10000L
Agitator Type:	Anchor, frame, propeller, oar, turbo, homogenizer, impeller etc or without
Mechanical seal:	SIC/SiC/EPDM(Standard)
Layer	Single, double or three layer
Structure:	cylinder,dished head dished bottom,conical head,conical bottom,flat cover, double hinged lid pressure flange cover etc.
Pressure:	Normal pressure or under pressure
Agitator power:	0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW
Sealing option:	Sanitary single mechanical seal/Double mechanical seal with cooling system
Voltage:	110-480V, 50/60Hz
Motor:	SIEMENS, ABB, LOCAL etc.
Surface treatment:	Inner polished and outside polished(Inside Ra<0.6 micron,surface mirror plosih Ra<0.9 micron)
Available connection:	Clamp, Thread Butt weld, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electric
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case Or as per the request of customers
Delivery details:	Usually within 3 weeks after receiving T/T down payment

Effective volume	Dimension of tank	Total height	Diameter of inlet&outlet	Heat preservation layer
(L)	(mm)	(mm)	(mm)	(mm)
500	840*1000	2250	38	60
600	920*1000	2300	38	60
700	990*1000	2300	38	60
800	950*1220	2500	38	60
900	1010*1220	2500	38	60
1000	1060*1500	2850	51	60
1500	1160*1500	2850	51	60
2000	1340*1500	2900	51	60
3000	1410*2000	3400	51	60
4000	1620*2000	3450	51	60
5000	1810*2000	3500	51	60
6000	1980*2000	3550	51	60
7000	1930*2440	4000	51	60
8000	2060*2440	4000	51	60
9000	2180*2440	4050	51	60
10000	2300*2440	4050	51	60
12000	2270*3000	4600	51	60
15000	2530*3000	4700	51	60
20000	2640*3660	5400	51	60

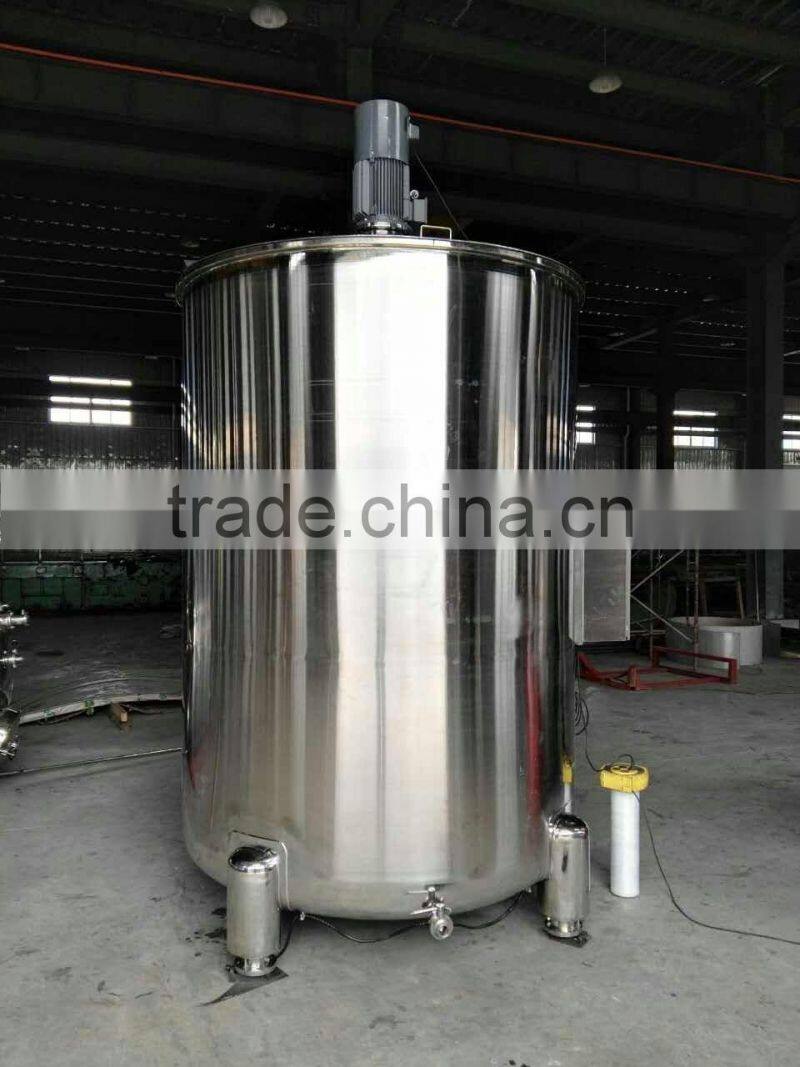

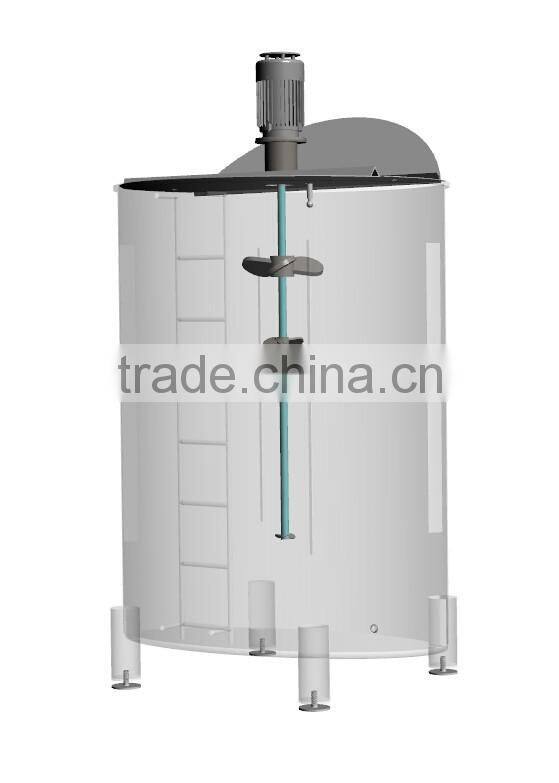

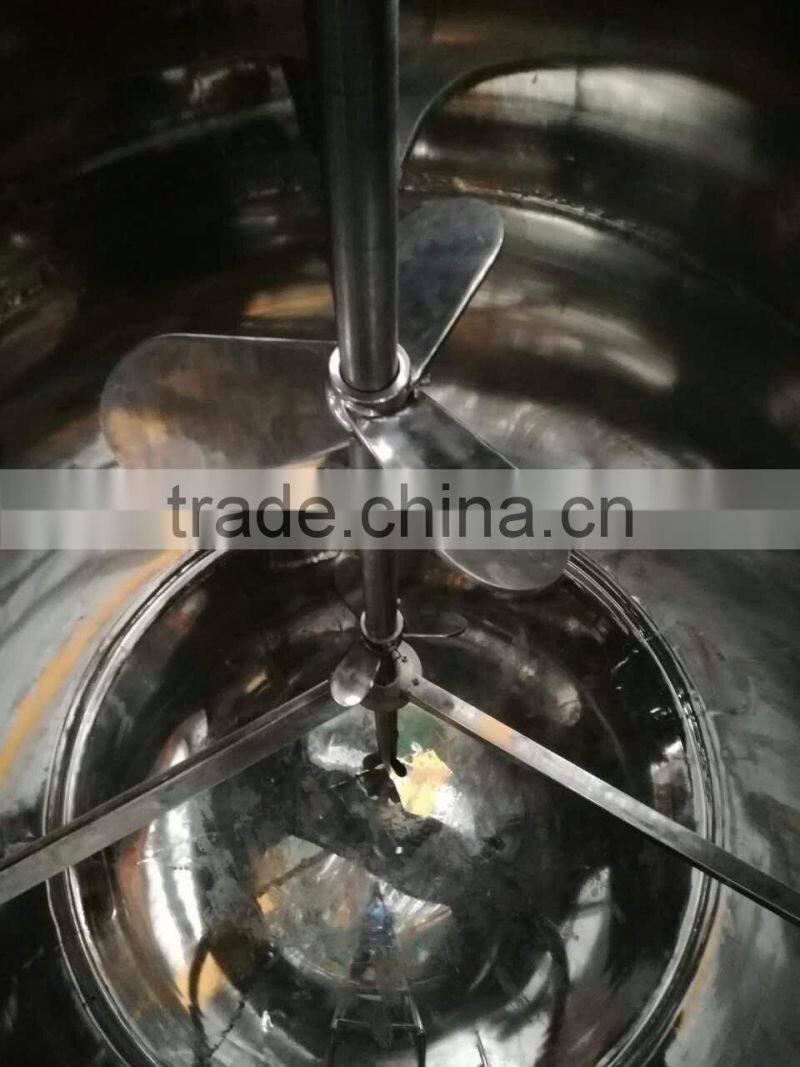

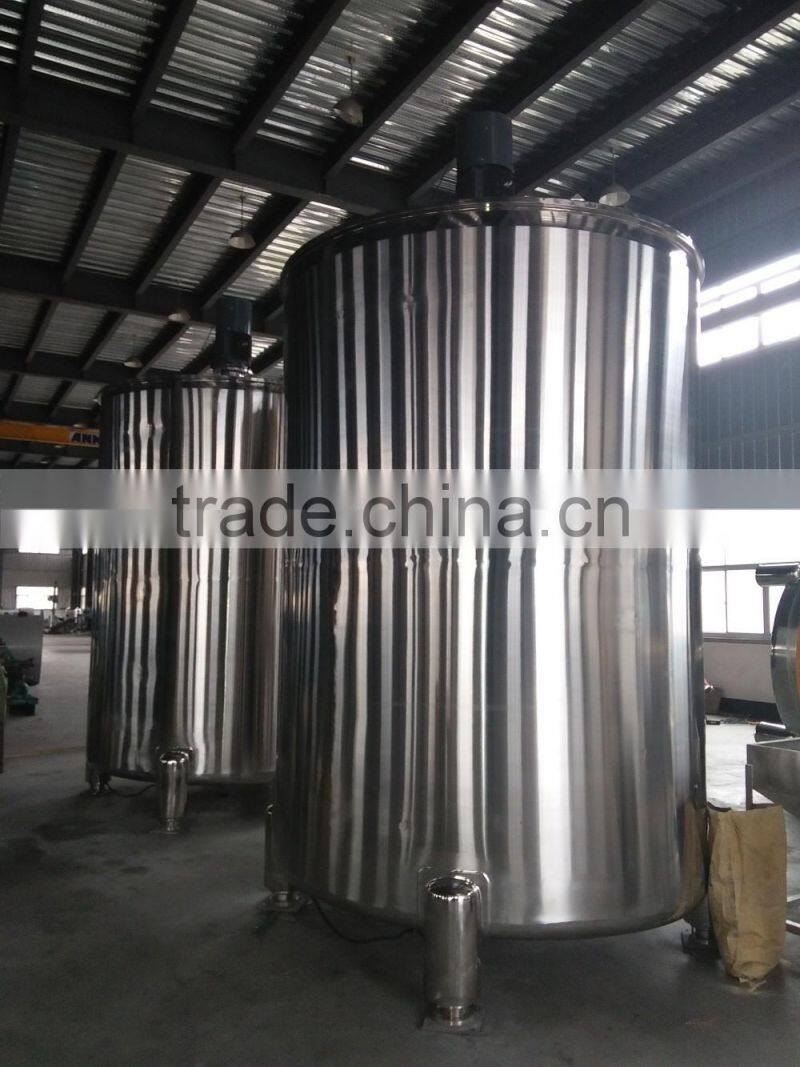

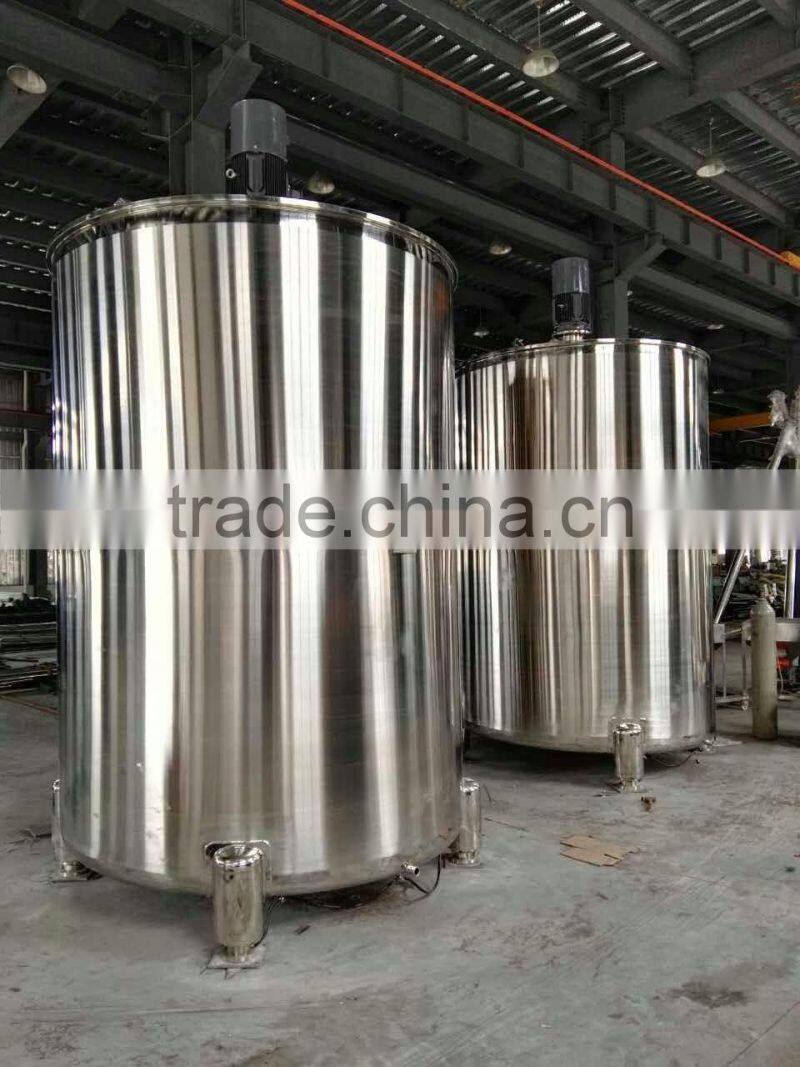

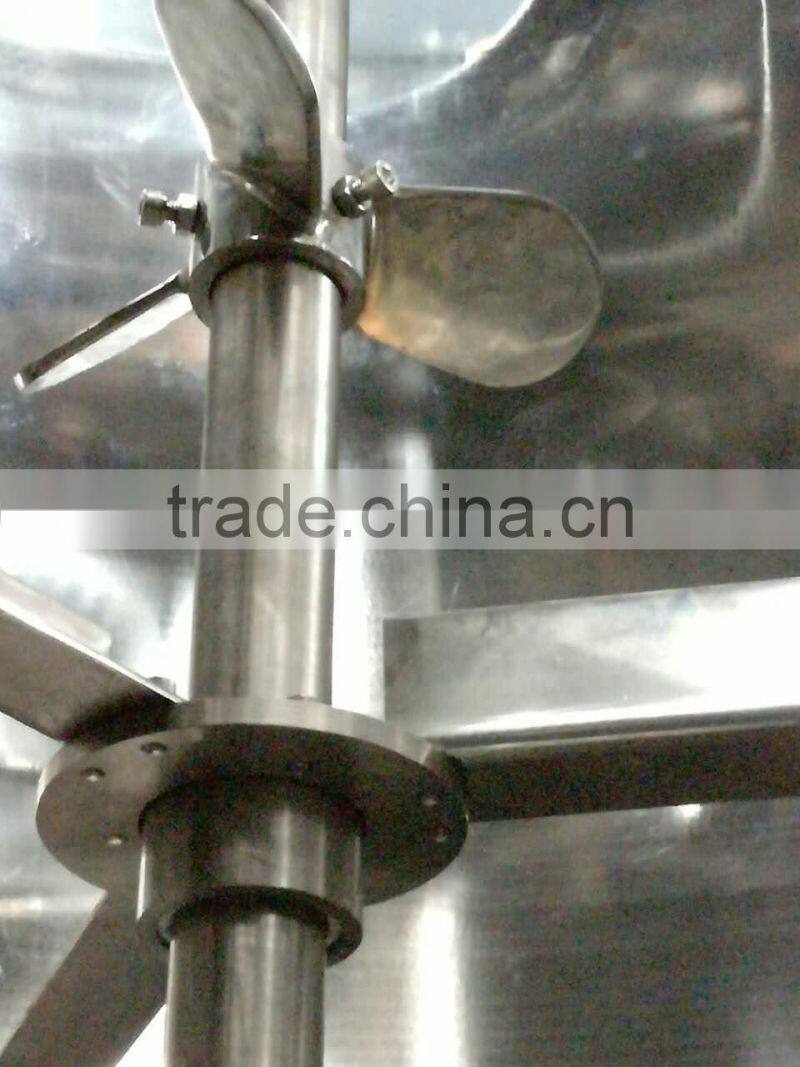

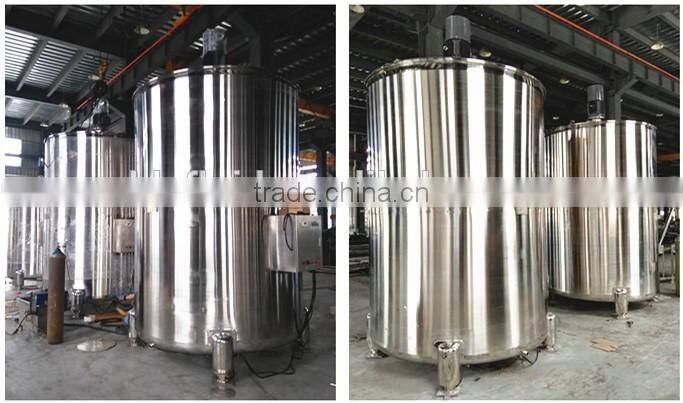

Detailed Images

Packing & Delivery

Certifications

Our Company

FAQ

Our Service

Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
Process	Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:	Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a	We will dispatch our Quality and Problems Appraisers to make a confirmation.
b	Have a negotiation of the compensation and sign agreements
c	Our After-Sales Department will perform the duties as the agreements
