Home > Products > Stainless steel tank > Steel 3000RPM Vacuume Small Lab Emulsifier Mixer

Steel 3000RPM Vacuume Small Lab Emulsifier Mixer

FOB Price

US$ 2,000 - 20,000 / Set

1 Set(Min. Order)

Port ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Mixer Type	Agitator
Product Type	Cosmetic	Application	Liquid
Additional Capabilities	Other, vacuum emulsifying mixer	Place of Origin	Zhejiang, China
Brand Name	L&B	Model Number	BRH3
Max. Loading Capacity	20000L	Voltage	110V~480V,50/60Hz
Power(W)	0.75KW~45KW	Dimension(LWH)	customized
Certification	ISO	Warranty	12 Months
After-sales Service Provided	Overseas service center available

Product Description

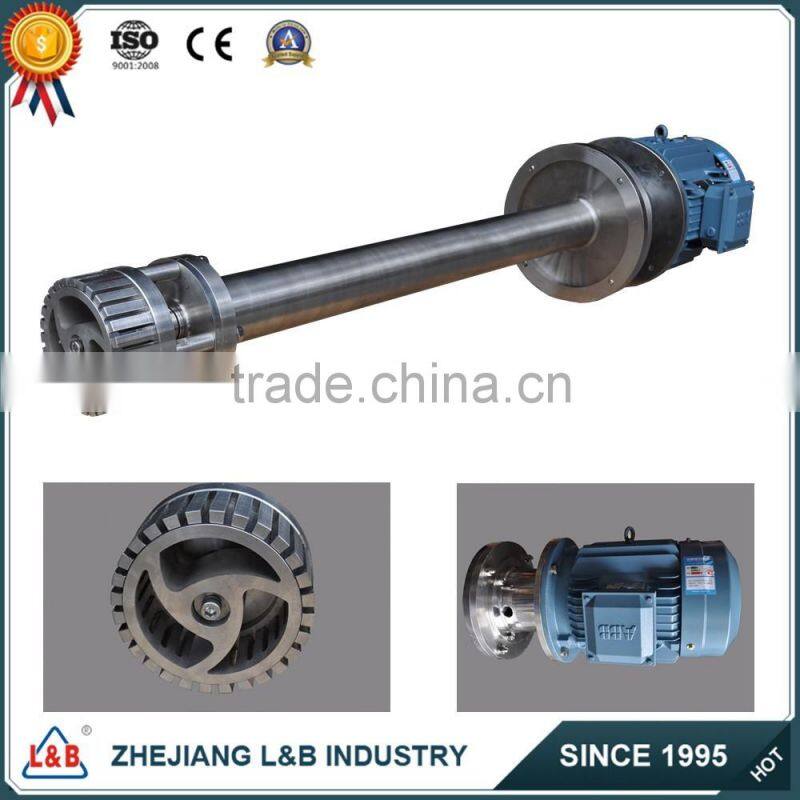

Steel 3000RPM Vacuume Small Lab Emulsifier Mixer

Brand: L&B
Material : stainless steel 304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2008

Reference parameters of high shear homogenizer:
Name	Steel 3000RPM Vacuume Small Lab Emulsifier Mixer
Brand name	L&B
Material	ss304 and ss316(ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong.)
MOQ	one set
Warranty	mechanical seal warranty period is 6 months, sleeve is 1 month, and other parts within 12 months
Wearing parts	sleeve, mechanical seal
Sleeve material	graphite bushing, PTFE etc.
Motor power	1.1-75kw
Speed	2800rpm
Package	plywood case
Deliver	with 10 working days after received the payment
Payment terms	T/T advance
Capacity	5-10000L/H
Motor	Siemens is optional
Hot sale	high temperature heat treatment, difficult deformation

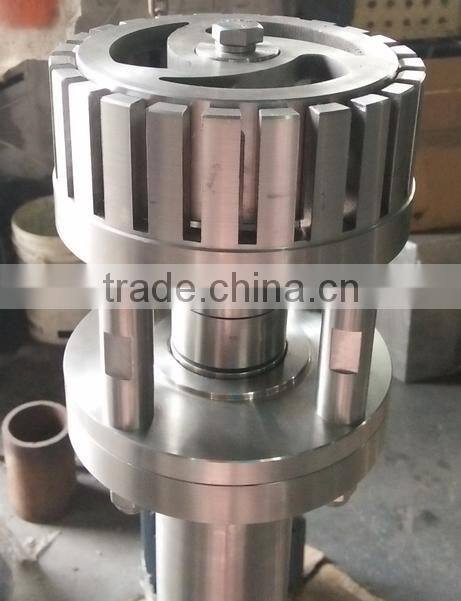

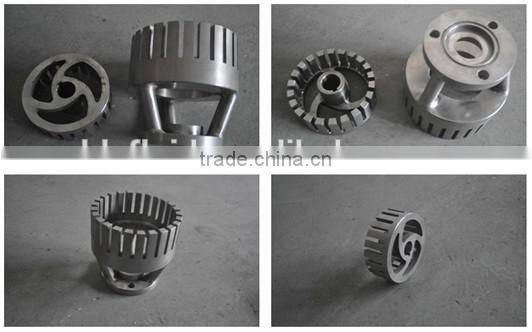

Different types	1) BRH I: straight tooth, be good at dispersive mixing, suit liquid(exclude oil) and powder mixing; 2) BRH II: oblique tooth, be good at homogeneous emulsifying, suit oil liquid and powder mixing; 3) BRH III and kettle bottom emulsification head: straight tooth and oblique tooth are optional, small capacity, proof pressure(positive pressure≤3 Bar, negative pressure≤1Bar, high pressure≤8Bar). 4) BRH IV: straight tooth and oblique tooth are optional, suit 1.5T-2.5T tank, the whole length can reach 2.5m-2.7m, motor power is more than 30kw(equipped with water-cooling system). 5) BRJ: with shear, good at emulsifying, best at dispersion, suit ≤10T tank, with water-cooling mechanical seal(it must be equipped with water-cooling system in bearing).

Applicable range:

1. Suitable for all kinds of large and small reaction kettle, uniform, fine on the common container, emulsification.
2. Small capacity of emulsion can be used for mobile lifting.
3. Widely applied in food, beverage, chemical, biochemical, petrochemical, pigments, dyes, paints, pharmaceuticals and other industries.

Structure characteristics:

1. Simple overall structure, small size, light weight.
2. Humanized structure design and easy to operate.
3. Low noise and smooth operation.

Model	Power	Speed	Length	Capacity
	(kw)	(rpm)	(mm)	(L/H)
BRH-80	1.1	2800	350	10~40
BRH-90	1.5	2800	350	10~50
BRH-100	2.2	2800	650	50~100
BRH-120	3	2800	750	100~200
BRH-120A	4	2800	750	100~300
BRH-140	5.5	2800	900	200~600
BRH-140A	7.5	2800	900	200~800
BRH-160	11	2800	1050	500~1500
BRH-180	18.5	2800	1200	600~2000
BRH-200	22	1400	1200	800~2500
BRH-220	30	1400	1355	1000~3500
BRH-240	45	1400	1395	1500~5000
BRH-270	55	1400	1600	2000~8000
BRH-290	75	1400	1650	3000~10000

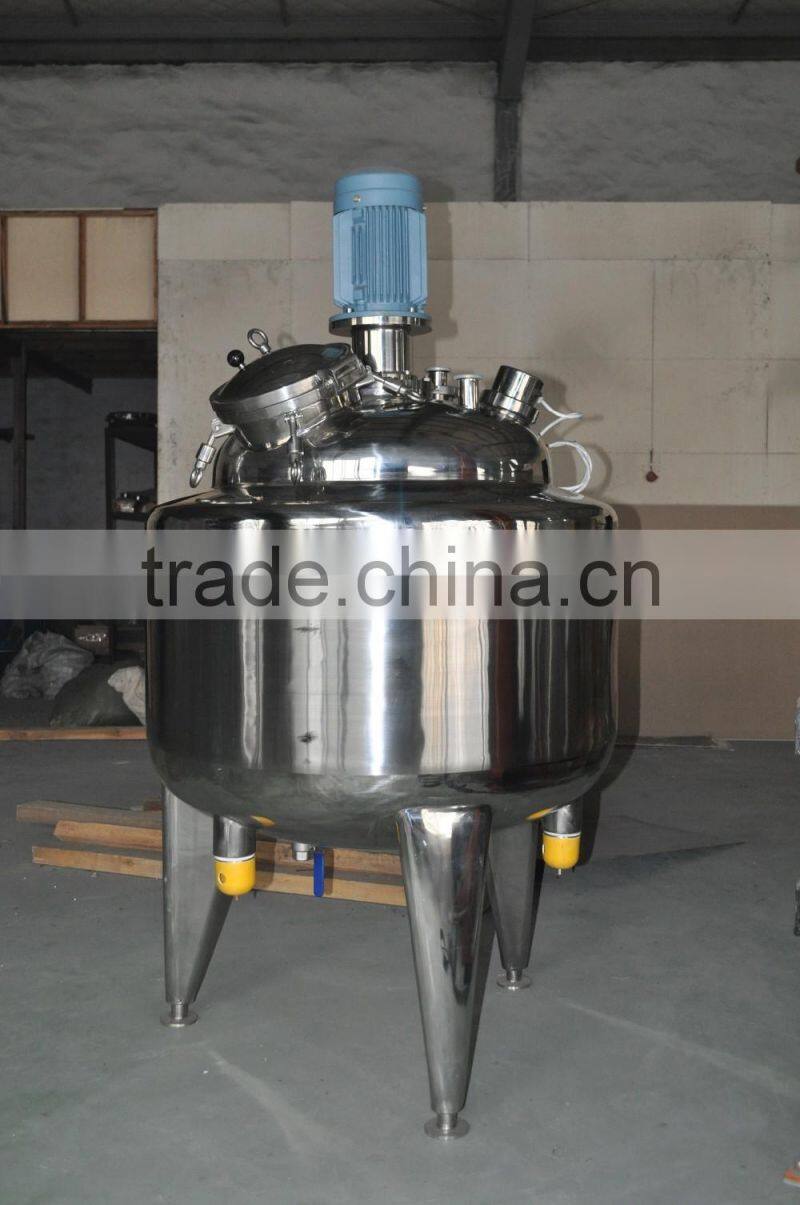

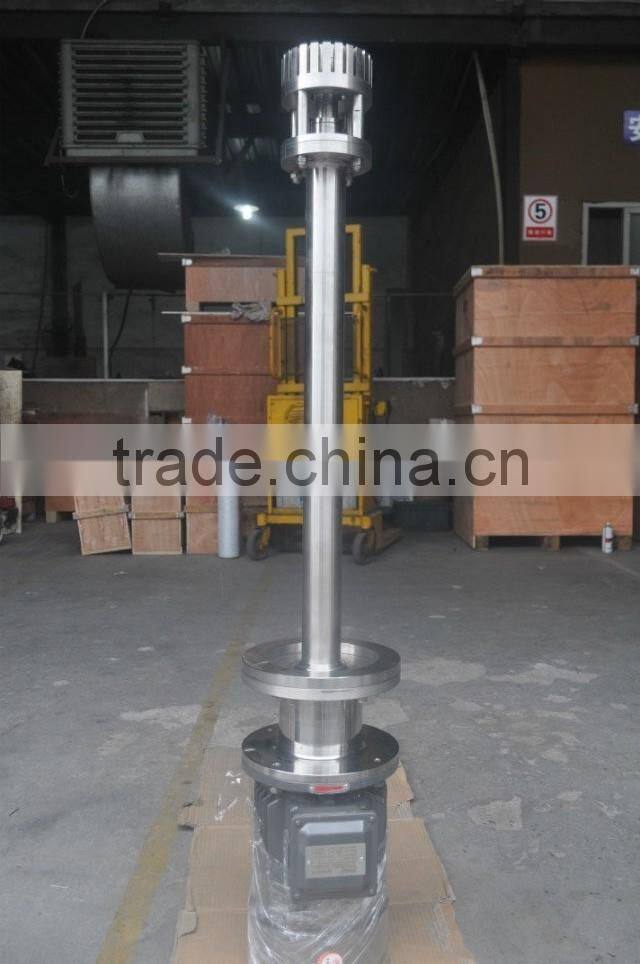

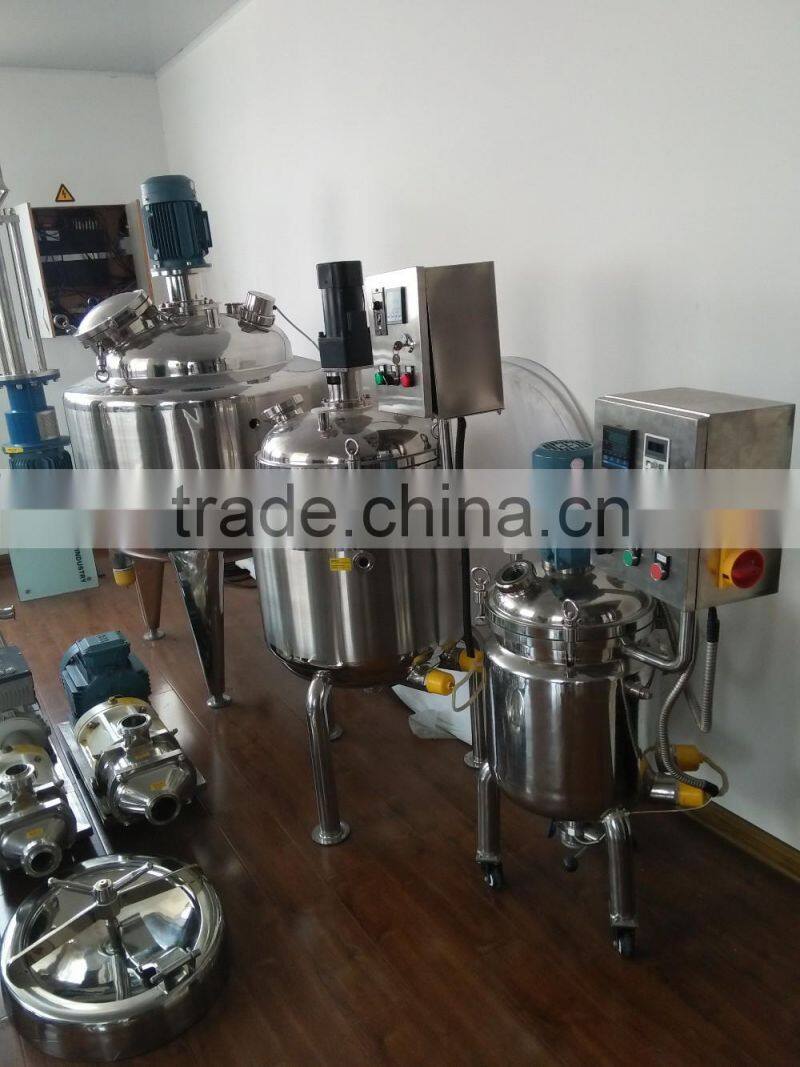

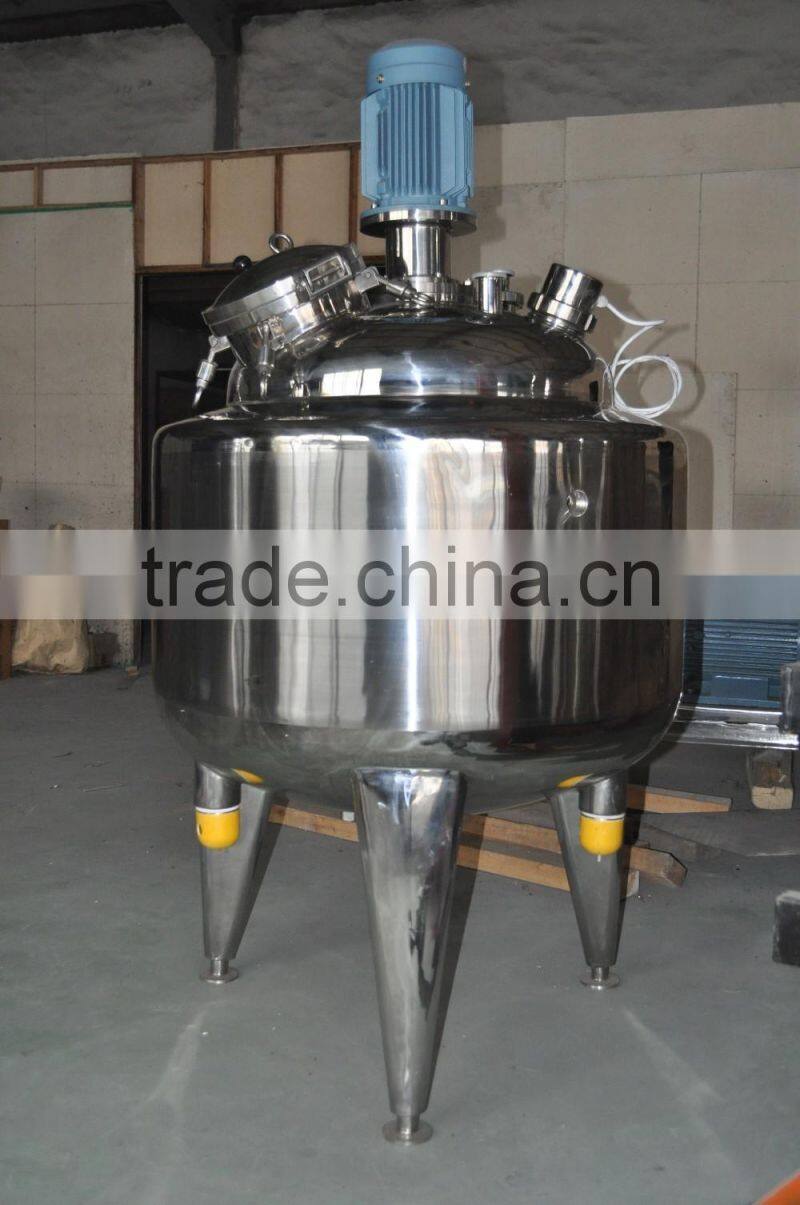

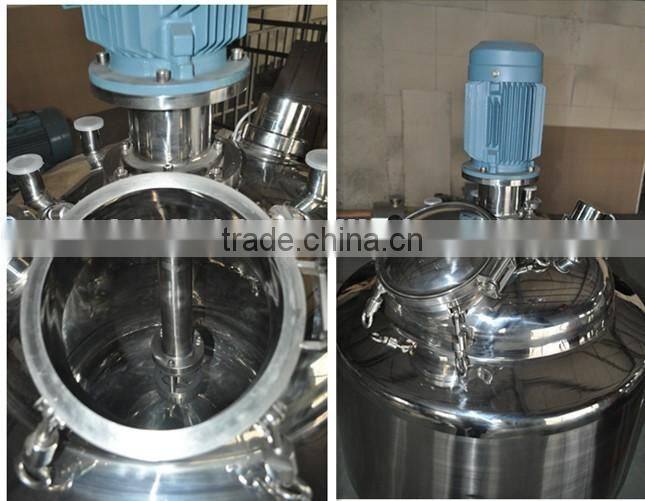

Detailed Images

Packing & Delivery

Certifications

Our Company

FAQ

Our Service

Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
Process	Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:	Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a	We will dispatch our Quality and Problems Appraisers to make a confirmation.
b	Have a negotiation of the compensation and sign agreements
c	Our After-Sales Department will perform the duties as the agreements
