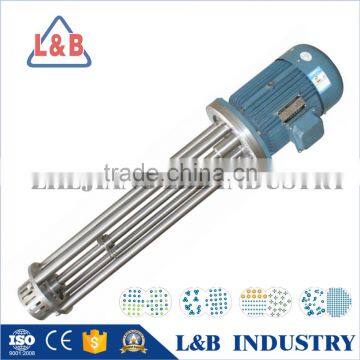

Steel 2800RPM Rotor And Stator High Shear Homo Mixer

Steel 2800RPM Rotor and Stator High Shear Homo Mixer

    It is a kind of vertical installation of emulsification equipment. Stator design for claw type coupling structure, material from the host upper and lower suction at the same time, and around the centrifugal throw, Shear homogeneous efficiency multiplied, to avoid the problem of kettle inside the upper material is easy to produce blind Angle.

Characteristics

1. Simple overall structure, small size, light weight.
2. Humanized structure design and easy to operate.
3. Low noise and smooth operation.

Applicable range

1. Suitable for all kinds of large and small reaction kettle, uniform, fine on the common container, emulsification.
2. Small capacity of emulsion can be used for mobile lifting.
3. Widely applied in food, beverage, chemical, biochemical, petrochemical, pigments, dyes, paints, pharmaceuticals and other industries.

Different types:

1) BRH I: straight tooth, be good at dispersive mixing, suit liquid(exclude oil) and powder mixing;

2) BRH II: oblique tooth, be good at homogeneous emulsifying, suit oil liquid and powder mixing;

3) BRH III and kettle bottom emulsification head: straight tooth and oblique tooth are optional, small capacity, proof pressure(positive pressure≤3 Bar, negative pressure≤1Bar, high pressure≤8Bar).

4) BRH IV: straight tooth and oblique tooth are optional, suit 1.5T-2.5T tank, the whole length can reach 2.5m-2.7m, motor power is more than 30kw(equipped with water-cooling system).

5) BRJ: with shear, good at emulsifying, best at dispersion, suit ≤10T tank, with water-cooling mechanical seal(it must be equipped with water-cooling system in bearing).

Zhejiang L＆B Fluid Equipment co., Ltd

    a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.

    We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).

    We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
