Stepper Motor Pulse Driver in Shanghai

Product Application

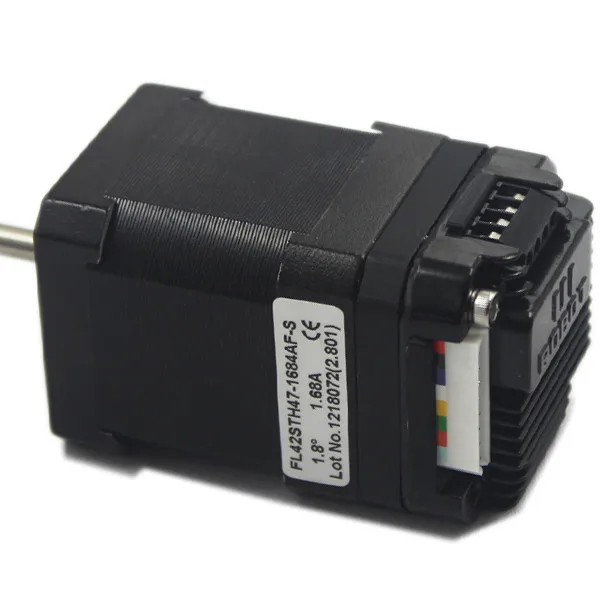

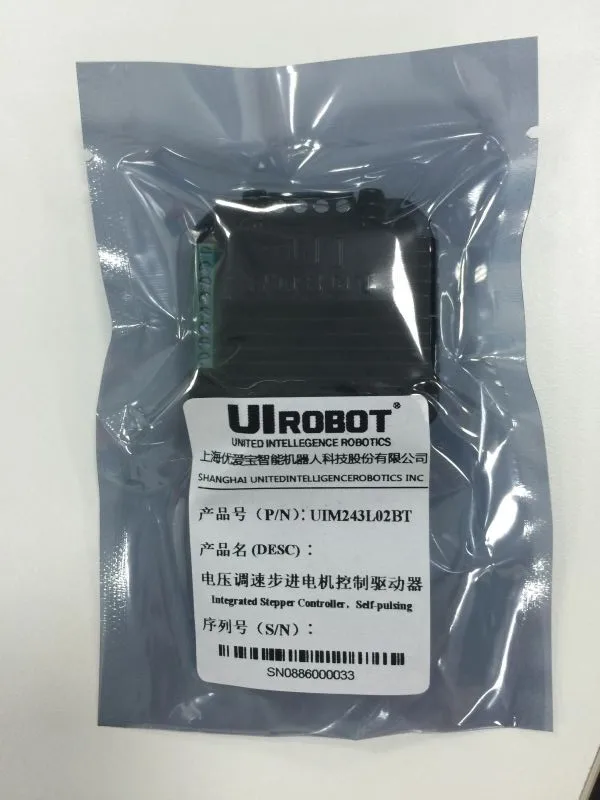

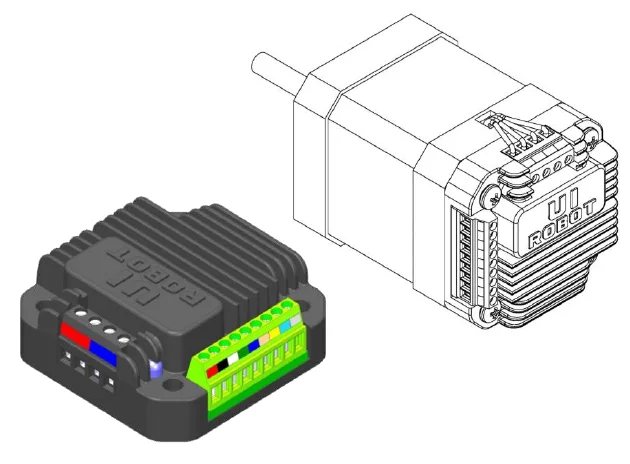

UIM243XX  stepper motor pulse driver are series of microprocessor embedded, voltage control, miniature stepper motor controller. UIM24301 is a sub-miniature controller, whose land pattern is standard DIP18(0.6”width) and can be mounted onto user PCB directly. With the UIM243XX controller, motor speed can be adjusted through an analog voltage. There are 3 ways to generate the said analog voltage:1) use the on-board trimmer,2) use user potentiometer or 3) direct input a voltage. Run/stop, direction, high/low speed range and, enable/disable can be controlled simply by shorting the corresponding terminal to the ground. UIM243XX controllers can run the motor without user device. UIM24302 provides 0-2A adjustable phase current, and UIM24301 provides 0-1A adjustable phase current.UIM24302 can be mounted onto NEMA 17/23 series stepper motor seamlessly through adapting flanges. The enclosure is made of die-cast aluminum which provided a rugged durable protection and improves the heat dissipation.

Main Features

Shanghai United Intelligence Robotics INC.

Shanghai United Intelligence Robotics INC.(Shanghai Uirobot Technology Co., Ltd.) is a high-tech enterprise Registered in the Pudong Zhangjiang High-Tech Park, Uirobot is committed to the development of the robotic industry. Our robotic products have full independent intellectual property rights.

We advocate the philosophy of modular design and manufacture; that is, all our robots are independent modules, with each module using a unified communication protocol to communicate with other modules. In addition, the mechanical interfaces of all modules are also simple and similar to each other.

Different modules can be assembled flexibly to form robots with different functions. With user friendly features, users do not need to understand how the specific module works at the back end; they just need to combine / separate modules according to their request, which can greatly improve the versatility and flexibility of robot application and assembly.

Our lead researchers have many years of research and development experience for industrial and civilian robots.

Under Uirobot, we have developed a variety of robot components, such as wheeled and tracked mobile platforms with dedicated camera rotating heads, military-level operation control boxes, small sizes, powerful functions, intelligent stepper motor controllers, CanBus protocol-based control systems and so on. These components can be used to resolve related technical problems by themselves, or can be combined together to form robotic products with different functions.

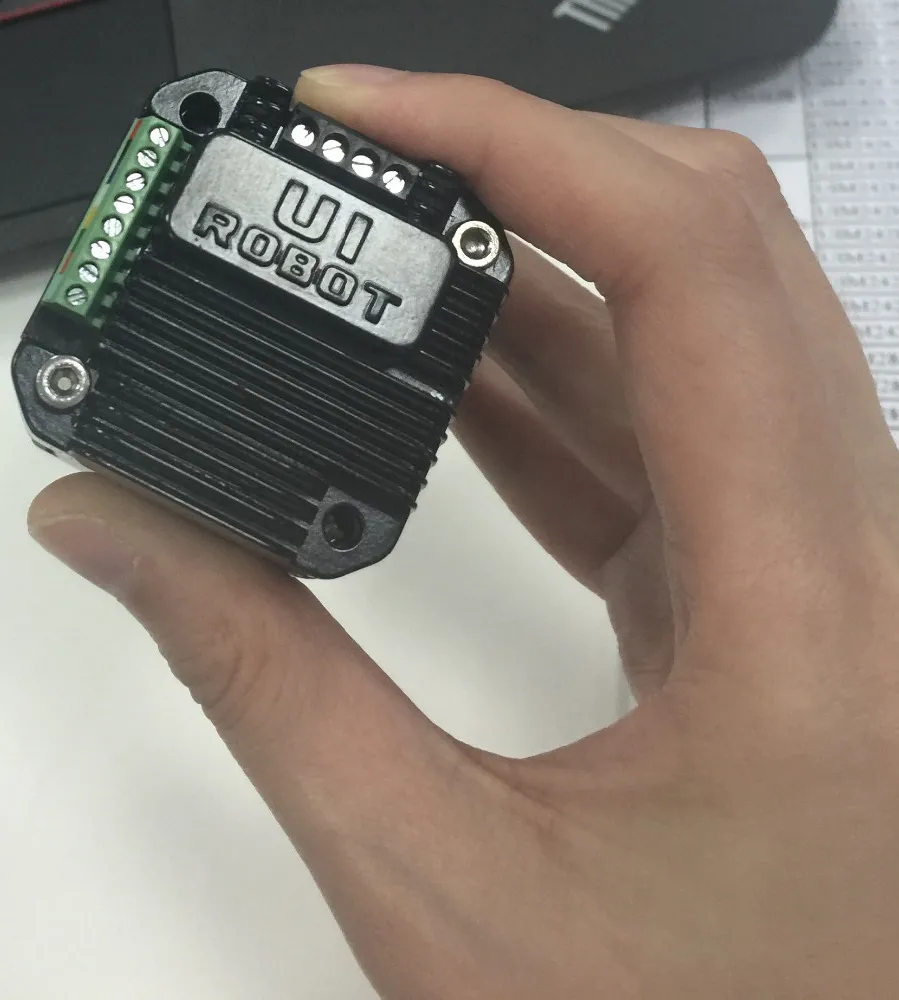

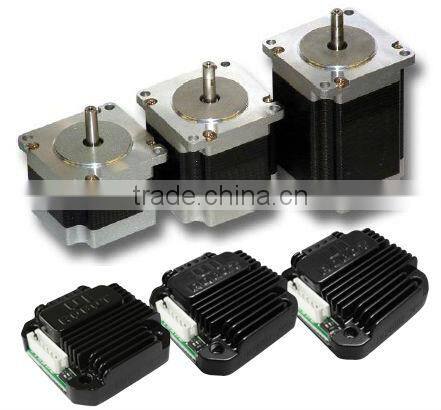

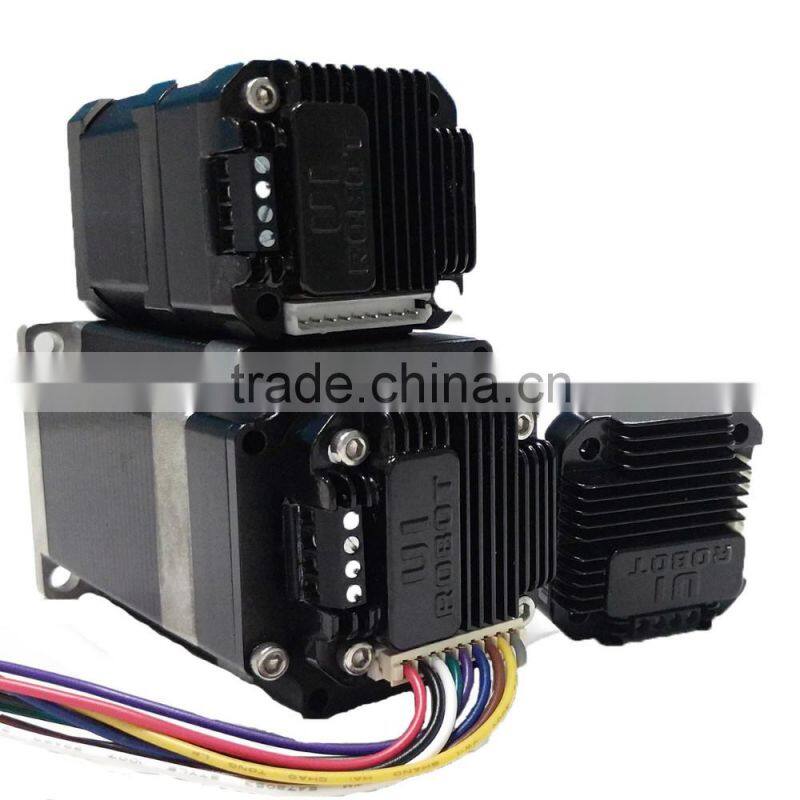

Furthermore, we have also launched a series of stepping motor controllers. Suitable for use in both our robots and other applications, these products are characterized by small sizes and strong driving ability. With full intellectual property rights, these items are completely different from similar products on the market. With a size of just 42 x 42 x 14mm (L x W x H), these controllers have flanges that enable direct mounting onto 42, 57, 85 and 110 series stepper motors. Divided into parallel port series, UART (eg. RS232) series, CAN series etc., our ultra-miniature and micro intelligent stepper motor drivers are the only product featuring such small designs, high intelligence and high driving performance in the domestic industry.

We hope to develop new ideas and new realms in the field of robotic research and manufacturing, making our robot products as ubiquitous as home computers, and similarly playing an active role in the daily life of ordinary people. We desire to become the benchmark for robotics companies worldwide, and push the robotics industry into an advanced era.

Believing in "customers first, be creative and proactive", we will continue to provide our clients with great products and top quality services.
