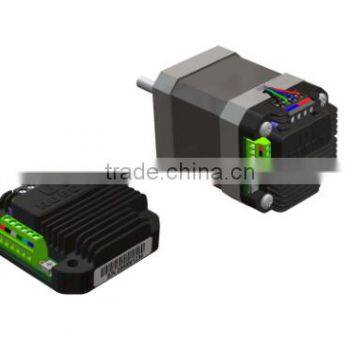

UIM243 series voltage control miniature integrated stepper motor controller

Control Methods（Ambient Temperature 25）

Environment Requirements

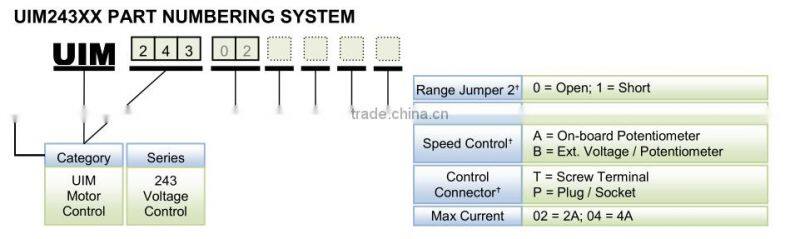

In order to serve you quicker and better, when you order UIM243 series voltage control miniature integrated stepper motor controller, please provide the product model number in following format.

Note:
1） If not selected, the code box(es) can be deleted. Default options are: T (screw terminal), A (on-board potentiometer), 1 (J1 short), 1 (J2 short)

Examples:
UIM24302；UIM24304PA00；UIM24302TB

Examples of Control Connector options:

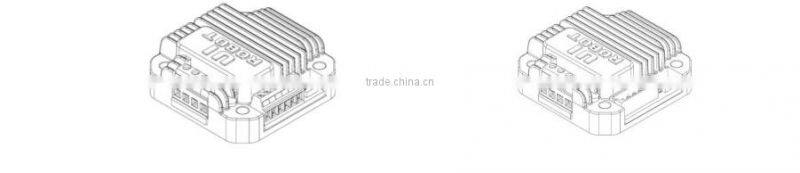

                                                        Screw Terminal

                                Rectangular Plug / Socket

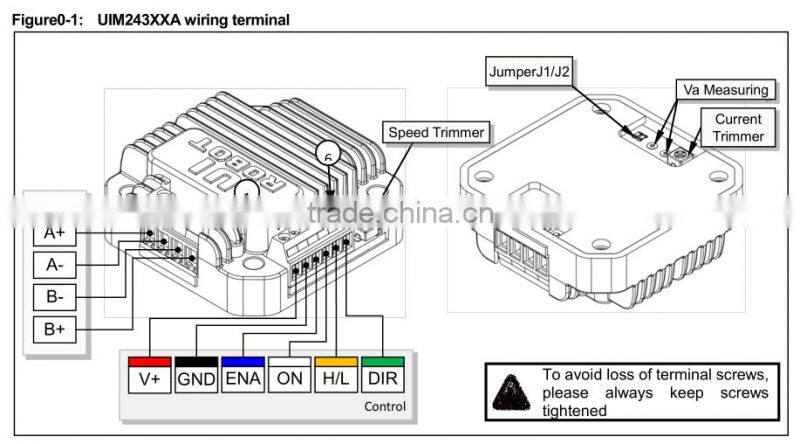

UIM243XXA Wiring Terminal:

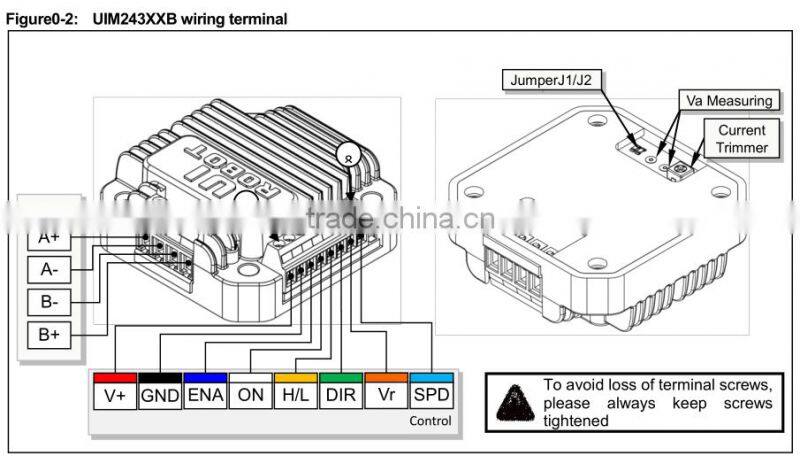

UIM243XXB Wiring Terminal:

Control Terminals

NOTICE: Only UIM243XXB provides this port.

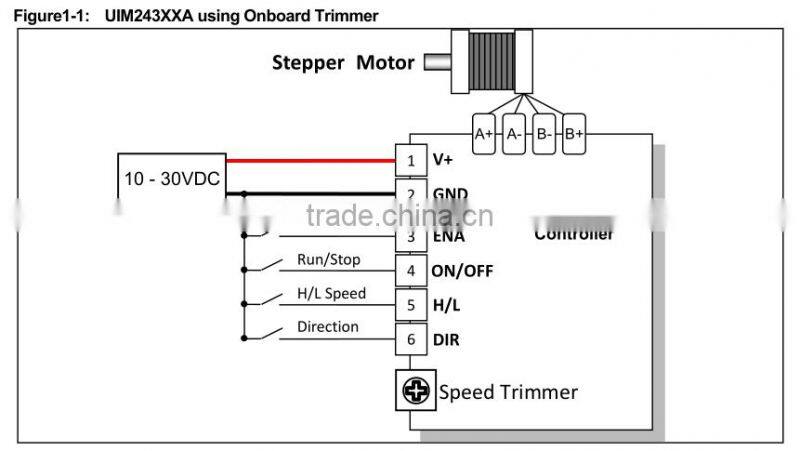

UIM24302A controller is equipped with a million-cycle speed adjusting trimmer.
UIM24302B allows the user to use an external potentiometer or external voltage to control the speed. Run/stop, direction, high/low speed range and, enable/disable can be controlled simply by shorting the corresponding terminal to the ground. UIM24302 controllers can run the motor without user control device.

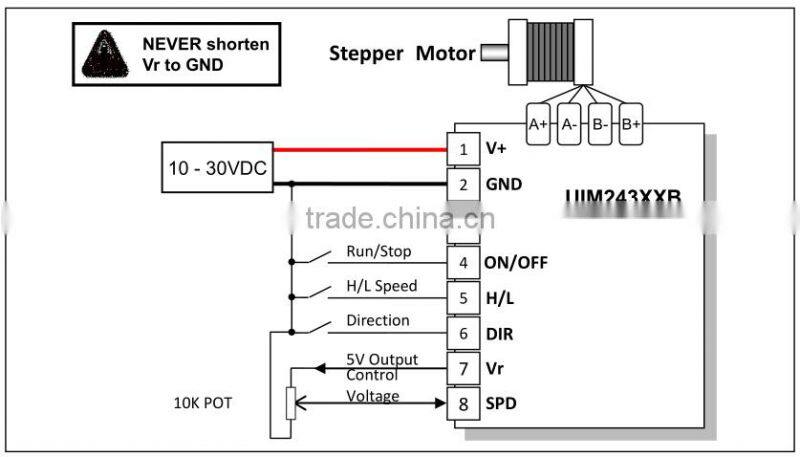

UIM243XXB with External POT

For users need to use external potentiometer (POT) to control the speed, UIM24302B provides a 5V reference voltage output, and a speed control voltage input port. The resistance of the POT should be between 5K and 10K ohms. Less than 5K will result in excessive power consumption, and larger than 10K will cause inaccurate measurement.

Figure1-2: UIM243XXB with External POT
