2 Phases Stepper Motor Controller With Can2.0 (UIM242XX)

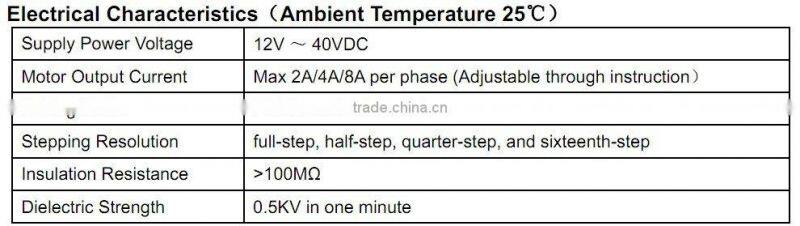

Specifications

   stepper motor controller

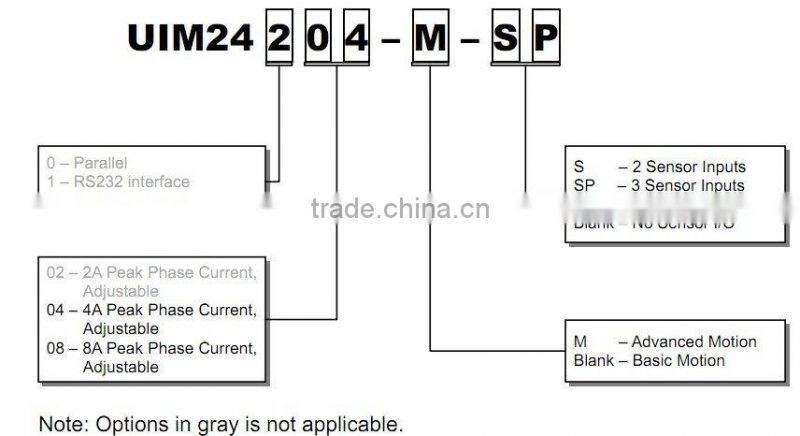

 miniature stepper motor controller with CanBus (UIM242XX)

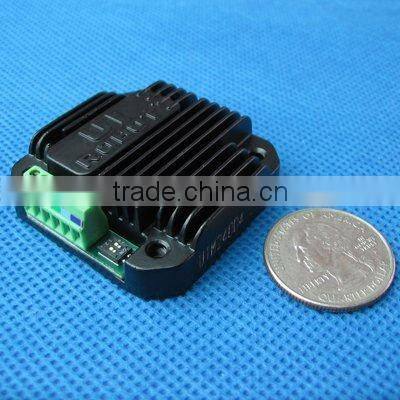

UIM24204 and UIM24208 are miniature stepper motor controller with CAN network capability. Through a CAN-RS232 converter (UIM2501), user device can command multiple UIM242 controllers through RS232 using ASCII coded instructions. Instructions are simple, intuitive and fault-tolerating. User is not required to have knowledge on stepper motor driving and CAN network.

UIM242 controller's architecture comprises communication system, basic motion control system, absolute position counter, and real-time event-based change notification system. Embedded 64-bit calculation precision DSP controller guarantees the real-time processing of the motion control and change notifications.

There are 3 optional advanced modules: Advanced Motion Control Module, Input Control Module, and Output Control Module. With UIM242's Advanced Motion Control, selected NEMA 17/23 motors can ramp up to 6600 RPM in 0.5 seconds and 4000 RPM in 0.25 seconds (online video available for downloading).

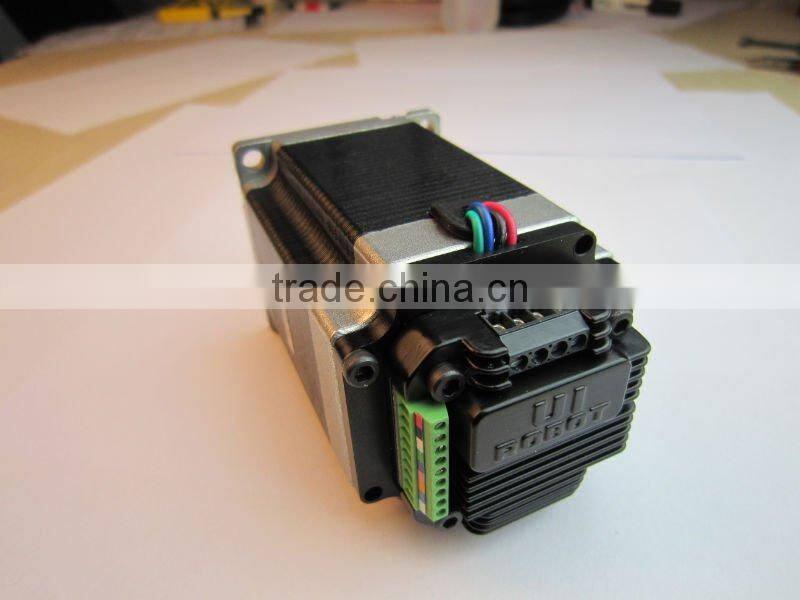

UIM242 controllers can be mounted onto NEMA17/23/34/42 series stepper motor through adapting flanges. Controller thickness is less than 14 mm. Enclosure is made of die-cast aluminum to provide a rugged durable protection and improves the heat dissipation.

Further more stepper drive with parallel port and RS232 stepper controller and smart self-pulsing stepper controller are available.
