Cost effective high performance Nema23 4 wires hybrid step motor
- 100 Piece / Pieces per Month
- Shanghai
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | UIROBOT | |
| Model Number | UIM | Phase | 2 | |
| Type | Hybrid | Certification | CE, ROHS | |
| Step Angle(degrees) | 1.8 | Holding Torque | 2 N.m | |
| Current / Phase | 2.8 |
Product Description
Specifications
Step Motor:1. High torque hybrid bipolar or unipolar
2. Step motor angle 0.9 or 1.8 degree
3. 178 oz.in, 268 oz.in and more
Step Motor:
Step angle 0.9 degree or 1.8 degree high torque hybrid bipolar or unipolar step motor
1. High torque hybrid bipolar or unipolar step motor
2. Step angle 0.9 or 1.8 degree
3. 178 oz.in, 268 oz.in and more
Size 57mm High Torque Hybrid Step Motor Specifications:
Series Model
| Step Angle (°) | Motor Length (mm) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm Min) | Rotor Inertia (g.cm²) | Lead Wire (NO.) | Motor Weight (g) |
UIM57-a | 1.8 | 51 | 1 | 5.8 | 17 | 9 | 190 | 4 | 560 |
UIM57-b | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 12.6 | 300 | 4 | 700 |
UIM57-c | 1.8 | 76 | 2.8 | 1.13 | 3.6 | 18.9 | 480 | 4 | 1000 |
UIM57-d | 1.8 | 115 | 2.8 | 2.1 | 10 | 30 | 650 | 4 | 1800 |

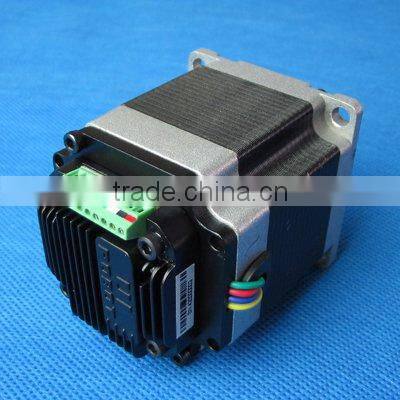

Step Motor integrated with UIM step driver
