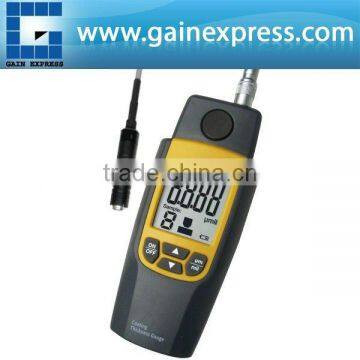

Ultrasonic Digital Coating Thickness Meter Gauge Tester 0~1200

This device provides quick and precise measurement of coating thickness on the magnetic metallic matrix. Due to its compact design and small size, this instrument is very much ideal for manufacturing, metal machining, chemical industry, commodity inspection. Made according to European Union's CE safety norms as well as to JJG 889-1995 Standards and EC directive: 89/339/EEC.

With its electromagnectic method, the meter can measure the coating thickness non-destructively, including paint, spray-plastic, rubber, enamel, or chrome plate, copperizing, aluminum plating on steel, iron, non-austenitic stainless steel.

Features:

• Four digit LCD display, differentiating up to µm
• System calibrating by user-self
• Pocket shell, convenient for local engineering
• Selectable "µm"or "mil" thickness unit
• Coupling state display
• Micro-controller controls, high accuracy
• Auto and Manual shutdown
• low battery voltage indication
• Uses electromagnetic method to measure
• Designed according to EC directive: 89/336/EEC, European Union : CE, and JJG 889-1995 standard

Specifications:

• Digital display: 4 digits
• Measurement range: 0~1200µm
• Resolution: 1µm
• Accuracy: ±(3%H+2µm)
• Measurement rate: 0.8 seconds
• Display units: µm or mil
• Critical thickness of metallic base: 1mm
• Minimum thickness of metallic base: 0.2mm
• Minimum curvature radius: protruding 1.5mm, concave 6mm
• Probe diameter: 13mm
• Power supply: 3 x 1.5V AAA Battery
• Operating environment without strong magnetic field
• Temperature: 0~40°C
• Humidity: 20%~80%
• Storage Temperature: -40~70°C
• Dimensions: 165mm x 60mm x 30mm
• Weight (main unit): 140g (battery excluded)

Set Includes:

• 1 x Probe (head 13mm diameter)
• 5 x Standard thickness piece
• 1 x Martensite stainless steel block
• 1 x English Operating manual
• 3 x Batteries 1.5V AAA Batteries
• 1 x Shock Absorbent Hard Carrying Case
• 1 x Lace
• 1 x standard packaging
