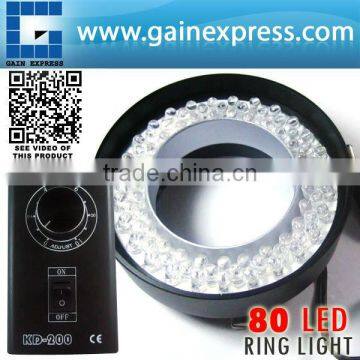

80 LED Camera Microscope Ring Light CE Illuminator Warm White 70mm Diameter 50 - 240mm Working distance

Design mainly to fit right to any camera & microscope.Every single unit is marked with CE on the controller'shousing, which means it PASSES ALL THE EUROPEAN STANDARDS.It has have the ADJUSTABLE 70MM MOUNTING DIAMETER that covers a great area of SUPER BRIGHT but softand well-distributed illumination that can be adjusteddepending on the user's requirements. The unit uses 80 WARM WHITE bulbs that reflect off the subject, proven to be effective in minimizing shadows and providesexceptional uniformity, optimal clarity, and an effectivesolution for minimizing specular (a perfect mirror-like reflection of light from a surface) reflection andglare to produce CLEAR and VIVID results.

Inspection and quality control is no longer a problem to viewsurface defects and overcome the visibility problemsassociated. Hard-to-see imperfections in plastic and metal surfaces, defects in solder joints and finepoints on translucent surfaces all become visible when illuminated with KD-200.

Features:

• Have 70mm diameter for Bigger Camera Lens Mounting andmicroscopes
• Biggerring light to cover a vast area of soft illumination
• 80 white LED bulbs for Bright and MOST Favorable lightingenvironment
• Adjustable brightness for flexibility to suit any job and consistentlighting for object illumination
• Adjustable screws to fit camera and microscope and secure attachment
• Provides exceptional output uniformity, mounting ease, cool, flare free and focused shadow-free illumination
• Low temperature to maximize the user's comfort and operation, even for long period
• Adjustable diameter for the ultimate in attachment flexibilityfor various tools and equipment
• Longlife
• Approved by strict quality and safety standards ensures along and trouble free life.

• Adaptable power cord is provided for US or UK or Australianor European


Specifications:

• Voltage input: Universal ( 95-240V AC 50-60HZ ), Auto Switching, Suitable for Worldwide
• Output: 14V DC 300mAMAX
• Power: 12W
• Light color: white
• Light control: easy-to-operate dimmer for adjustable brightness
• Mount diameter: 70mm (max)
• Working Distance: 50 - 240mm
• Number of LEDs: 80
• Plug: Power Cord for US or UK or Australia or Europe

Set includes:

• 1 x LED ring light with 80 pcs LED bulbs
• 1 x Main Controller
• 1 x Adaptor ( Available in UK / US / EU / AU Plug )
• Standard Factory Package

Warranty : 2 years warranty

Operating Information :

• Connect the power cord to the power supply input socketand the LED Ring Light jack to the LED Ring Lightinput terminal.
• Plugin the other of the power cord to the power outlet.

• Attachedthe KD-200 to your microscope or camera and usethe Adjustable screws to tighten and secure theattachment.

• Turnon the Controller by pressing the Power switch.Adjust the illumination by rotating the BrightnessAdjustment switch in a clockwise motion. The higherthe rotation degree the brighter the illuminationit gives.

• Rotatethe Brightness Adjustment switch in a counter-clockwise (opposite of clockwise) motion to decrease the brightness

• Pressthe Power switch turn the device off.

MAINTENANCE:

• Wipe the controller's housing with clean and dry softcloth. Do not use wet cloth because it will affect the electricity flow of the controller and mightcause the device to malfunction.
• You can use the box when storing the device in the storage. Keep it in the dry area.
