Home > Products > industrial exhaust fan > Air Flow 44000m3/H Poultry Fan/Greenhouse Exhaust Fan/Cooling Fan

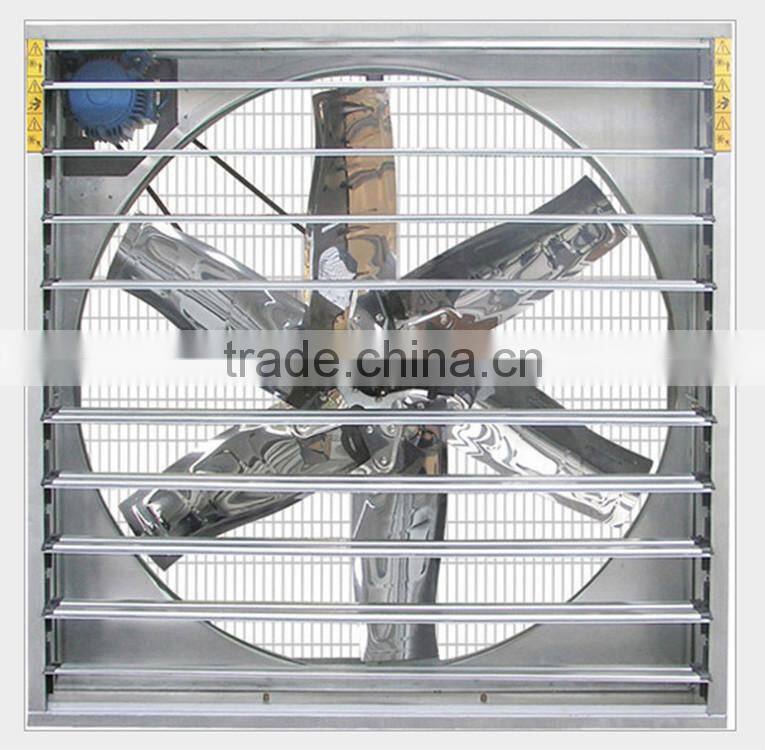

Air Flow 44000m3/H Poultry Fan/Greenhouse Exhaust Fan/Cooling Fan
- Qingdao
 - T/T

You May Like
Product Details
| Electric Current Type | AC | Mounting | Free Standing | |
| Blade Material | Stainless Steel | Place of Origin | Shandong, China | |
| Brand Name | PengSheng | Model Number | 50 inch exhaust fan | |
| Voltage | 380V | Power | 1.50W | |
| Air Volume | 44000m3/h | Speed | 1400r/min | |
| Certification | CCC, CE, Other, CCC, CE, ISO9001, ISO9001 | After-sales Service Provided | Overseas service center available |
Product Description
Air Flow 44000m3/H Poultry Fan/Greenhouse Exhaust Fan/Cooling Fan
Model  | FJ-1380(54'' centrifugal shutter ventilation fan) with ISO certificate  |
Fan size  | 1380mm×1380mm×400mm  |
Airflow  | 44000m3/h  |
Weight  | 86kg  |
Frame  | Hot galvanized sheet, high anti-corrosive durability, zinc coating thickness 180g/m2  |
Frame thickness  | Top and bottom frame sheet is 1mm; the left and right sheet is 0.8mm  |
Motor  | Chinese ,Other motor accordingly, IP 54/55  |
Motor technical data  | 1.5Kw 380 V 50 Hz three phase  |
Motor RPM  | 1400r/min  |
Noise  | <64db  |
Blade diameter  | φ 1250mm (50inch)  |
Blade No.  | 6  |
Blade material  | BA430 stainless steel. Thickness 1.2mm  |
Blade RPM  | 437r/min  |
Blade instruction  | Weight difference between blades is less than 0.5g,blades will go through balance test after assembled which can assure steady running and even airflow.  |
Shutter  | Centrifugal system opening, spring close system, shutter can be opened at 90 degree.  |
Shutter No.  | 10  |
Shutter thickness  | Hot galvanized sheet. Thickness 0.8 mm and the middle piece is 1.2mm  |
Shutter Linkage  | Aluminum  |
Spring  | 304 stainless steel  |
Centrifugal opening system  | 30% fiberglass and 70% nylon. The column is 304 stainless steel. Weight: 1370±4g  |
belt  | Chinese belt and Mitsubishi belt can be choose  |
Housing  | Galvanized steel. Thickness 1mm  |
Net guard  | Two half pieces  |
Small belt pulley  | Cast Iron  |
Big belt pulley  | Aluminum alloy  |
Motor base  | Both 1.5HP and 1 HP motors can be installed  |
Motor hole  | Installation hole of motor and nut are all six angles instead of the roundness.  |
Guarantee period  | One year. Easy broken parts are offered free of charge during this period.  |
Detailed Intro.:
Blades Running Balance, Hot-galvanized procedure,CND
design:
Exhaust Fan Outline Dimension and Installation instruction:
Exhaust Fan Procedure:
Packing &Shipping
Company Profile
Certification
Our Advantage
1.Small volume, high air volume, high efficiency, low noise, light vibration,easy to installation and so on.
2.Widely applied for the ventilation in dwellings, industrial constructions and labs, in environment with strict limit to noise, or in air conditioning, air purifying and freezing industries etc.
3.The fan adopts mold production through static and dynamic balance adjustment, and its surface adopts high-grade electrostatic spraying treatment.
4.The gas delivered by the series of fan cannot have sticky matters, and is noncorrosive, non-flammable and non-explosive.
FAQ
Why choose Qingdao Peng Sheng Electrical Appliance Co., Ltd.?
1.Good quality, Competitive price, Fast delivery.
2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement,
in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5. If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.
Contact Way
If you can't find the datas you need, pls send us your performance requirements,
we will provide you customized design service in 8 hours.
