Capsule, Pill, Tablet Package Multifunctional Small Alu Alu Blister Packing Machine
- guangzhou shenzhen
- Credit Card PayPal
You May Like
-
Big Capacity Chinese Traditional Rround Pill Making Machine
-
Chinese Traditional Round Pill Making Machine
-
Automatic Pharmaceutical Pill Making Machine
-
Hot Sale Automatic Small Pills Making Machine With Press Machine
-
Professional Pill Making Machine for Pharmaceutical Production Line
-
SINGLE PUNCH EQUIPMENT PILL MAKER MANUAL TYPE TABLET PRESS MACHINE NO MOTOR HAND OPERATED PILL MAKING DEVICE
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | Laymax | Model Number | DPT-125/130/140 | |
| Usage | Other, blister packing | Voltage | 380V | |
| Power(W) | 3kw | Weight | 410KG | |
| Dimension(L*W*H) | 1600*800*1240 | Certification | GMP,CE,ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Capsule, pill, tablet package multifunctional small alu alu blister packing machine
Product information
This machine is inner-tank heating type. There is F chemical element on the heating roller surface, this can ensure PVC heat average and the mould form well. It won’t waste any PVC material when you start or stop machine. Form bubbles, feed pills, emboss & heat-sealing, print series No., cut into pieces, all these action can be done continuously. Our machine adopt no-edge cut, it can save material about 4-6%.
Application

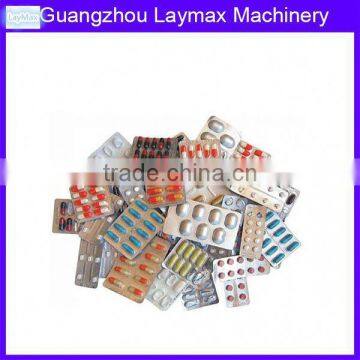

DPT-70 blister packing machine is small medicine packing machine, the whole machine is transmitted by gear, low noise and easy maintenance. We choose common use feeding material device to suit for different shape pills. It can print series number, it seals good and suits for different dimensions capsule, tablet, dragee, pill and also chocolate bean, chewing gum.
Parameters of all models:
Machine Type | DPT-70 | DPT-130/125/140 |
Packing material | PVC70*0.25mm/PTP70*0.02mm | PVC130*0.25mm/PTP130*0.02mm |
Forming depth | Max:15mm | Max:15mm |
Packing efficiency | 17000-48000 pcs/h | 40000-80000pcs/h |
Press/Cut times | 25-35 time/min | 20-35 time/min |
packing range | capsule, tablet, dragee, pill | capsule, tablet, dragee, pill |
water consumption | 2.91L/min | 2.91L/min |
Power consumption | 2.5KW | 3.0KW |
Voltage | 220V | 380V |
dimension | 1230*600*1000 | 1600*800*1240 |
Weight | 150kg | 410kg |
different from our competitors’
Laymax | Competitors’ |
Rotating rollers | Flat type, it will cause mould broken, whole machine is big, waste much more raw material |
Absorb bubbles | Blow bubbles |
Gear transmit, can seal more tightly | Chain or belt |
Two motor, feed material soon and auto feed material | Only one motor |

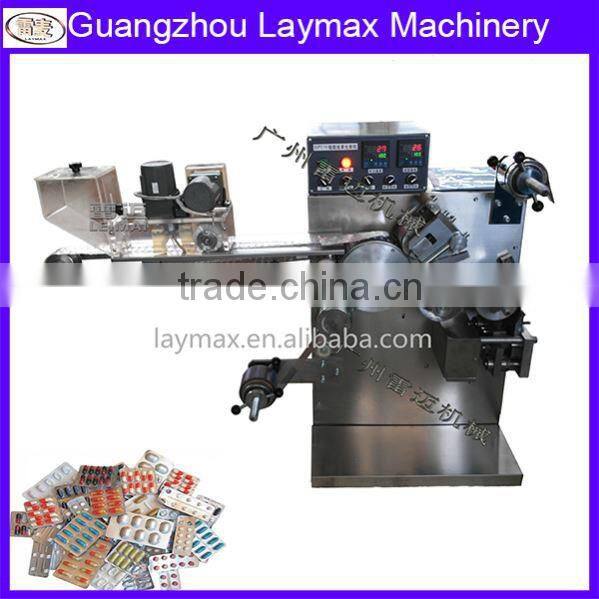

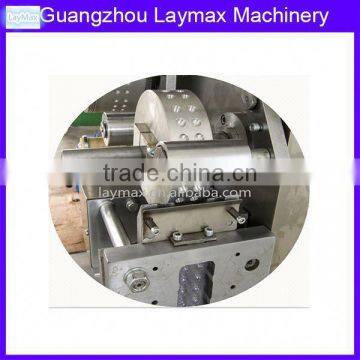

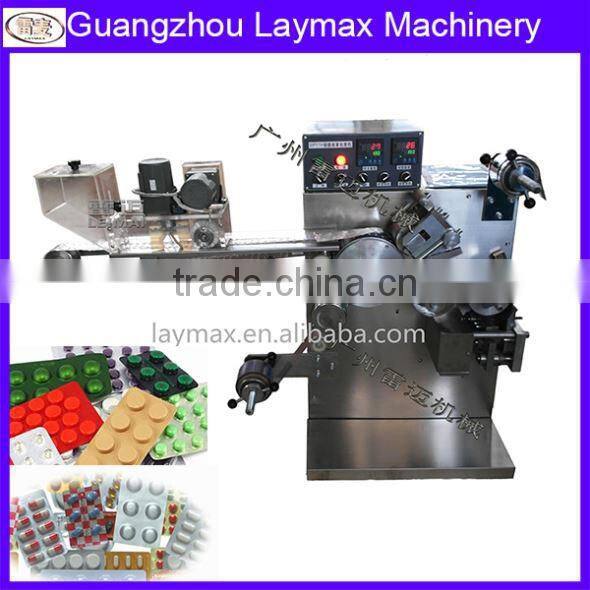

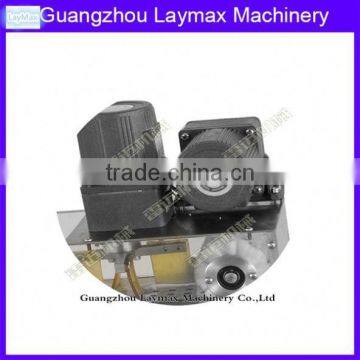

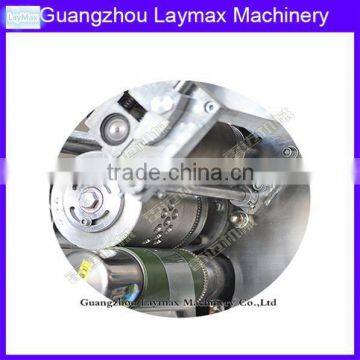

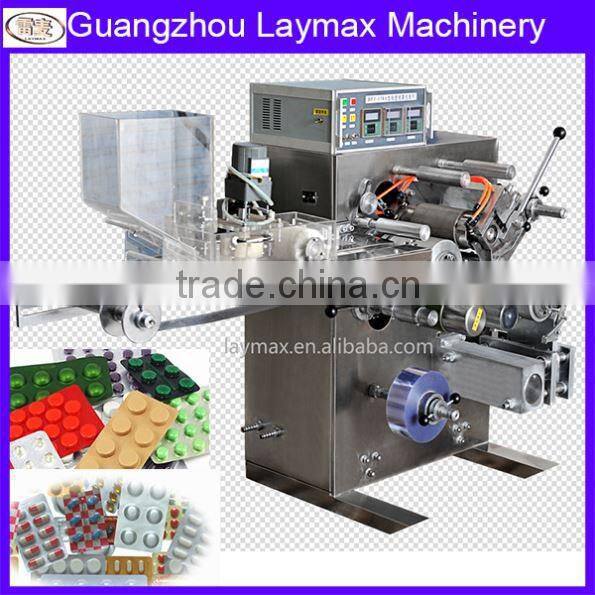

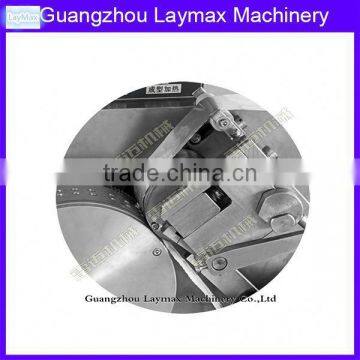

Equipment photos:

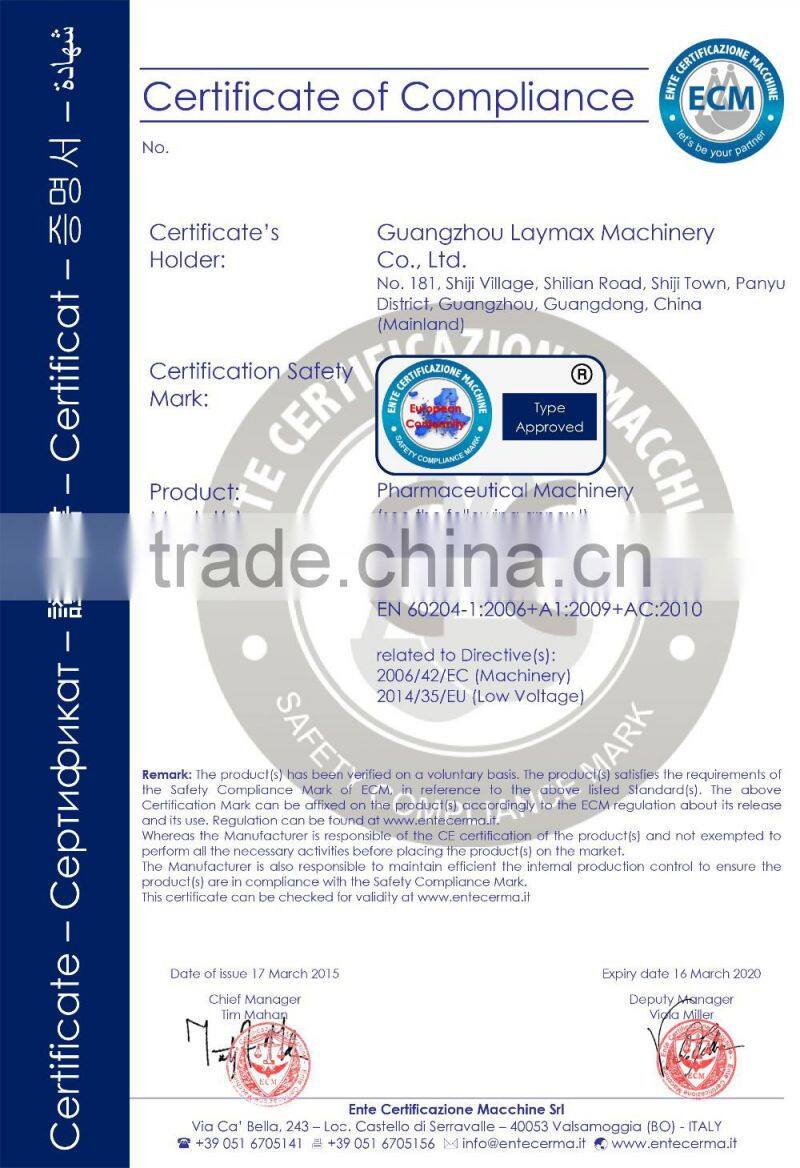

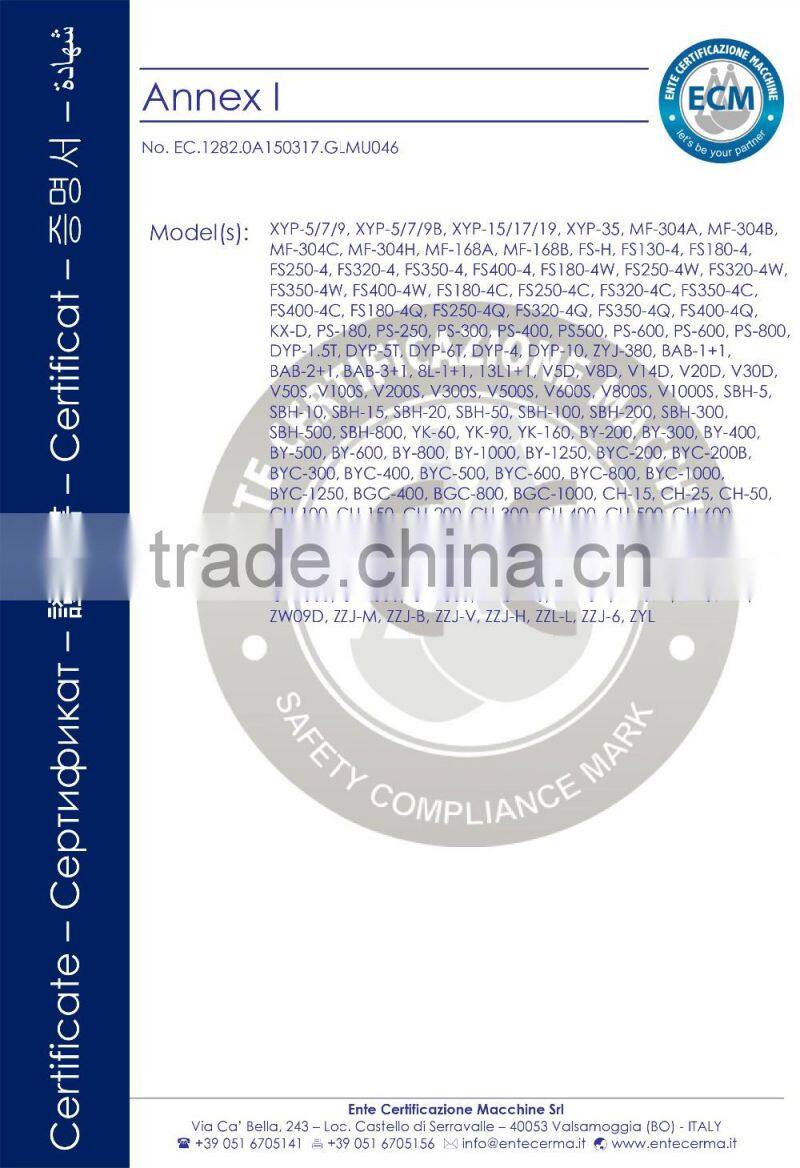

Certification:

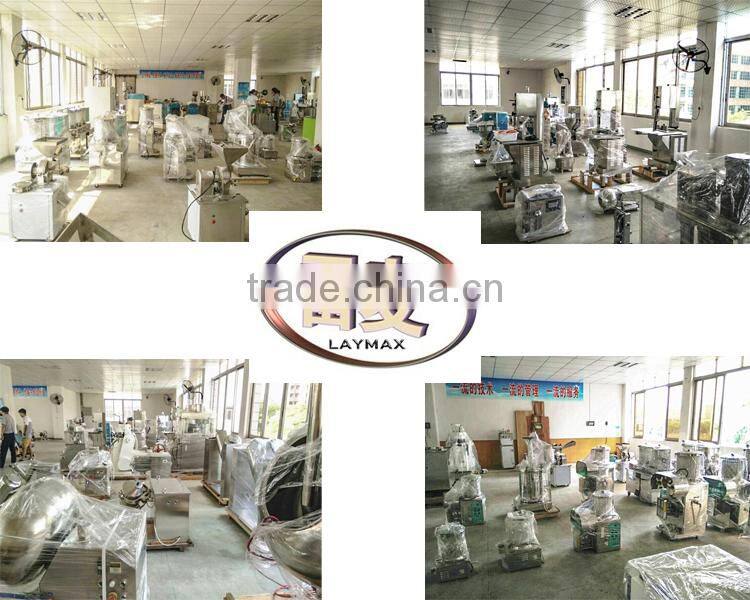

Our showroom:
Packing:

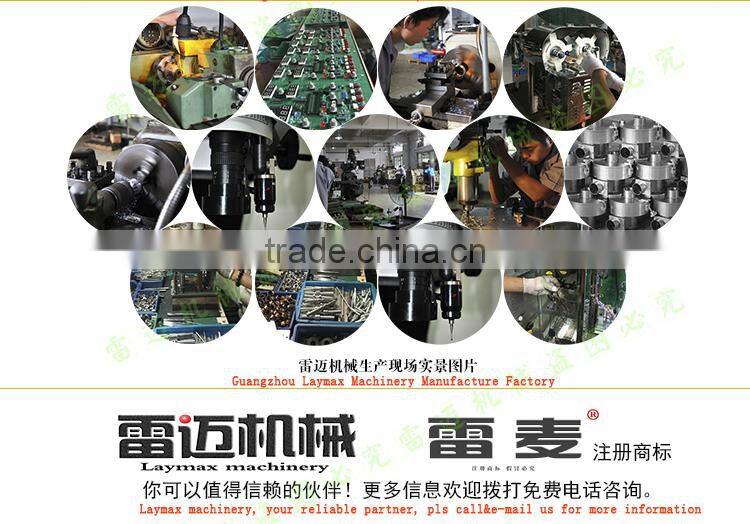

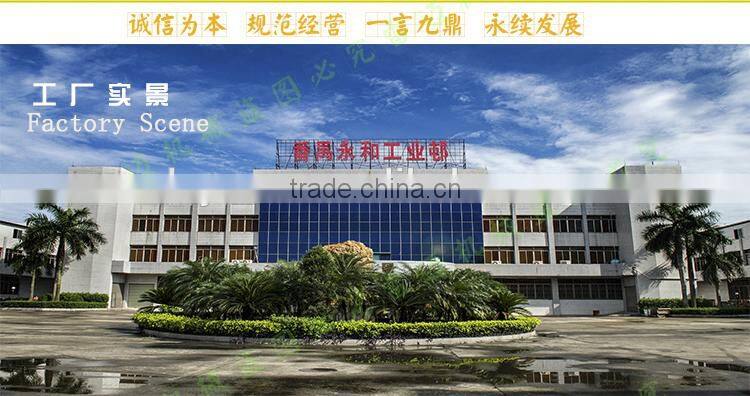

Company information:
