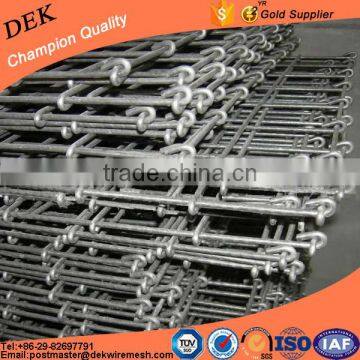

Xi'an Co.Ltd BRC Wire Mesh Reinfored Welded Reinforced
- 20000 Piece / Pieces per Month
- Tianjin
- T/T D/P D/A Credit Card PayPal
You May Like
-
Metal Building stretched Aluminum perforated mesh heavy duty galvanized wire mesh aluminum expanded wire mesh
-
Lowes hog concrete reinforcement wire mesh fence
-
Reinforcement Reinforced Concrete Brc Mesh Slab
-
steel construction brc welded mesh concrete reinforcement wire mesh
-
6x6 reinforcing welded wire mesh /Steel reinforcing concrete slab mesh
-
q188 concrete reinforcement iron wire mesh panels
Product Details
| Place of Origin | Shaanxi, China | Material | Black Wire Mesh | |
| Type | Welded Mesh | Application | Other, Protecting Mesh, construction reinforcement | |
| Weave Style | Plain Weave | Wire Diameter | 3mm-14mm | |
| Technique | Welded Mesh | Model Number | DEK-RM-B12.2.2810 | |
| Brand Name | DEK |
Product Description
Market-oriented
Russia France Japan Spain Arab Germany Italy Etc.
Reinforcing welded wire mesh also known as welded steel mesh,welded mesh,steel mesh and so on.It is the longitudinal bars and transverse bars are arranged at constant pitch and at right angles to each other,all cross points of the mesh are welded together.
GB(GERMAN/AS/NZS/BS )
DIN488 GERMAN STANDARD (SIZE:2150MMX5000MM)
Ref No. | Std Unit | Longitudinal | Cross Wires mm | Pitch of wire | Mass Kg | Mass Kg/m2 |
Q131 | Sheet | 5 | 5 | 150 @ 150 | 22.476 | 2.091 |
Q188 | Sheet | 6 | 6 | 150 @ 150 | 32.401 | 3.014 |
Q221 | Sheet | 6.5/5.0 | 6.5 | 150 @ 150 | 33.707 | 3.136 |
Q295 | Sheet | 7.5/5.5 | 7.5 | 150 @ 150 | 44.245 | 4.116 |
Q378 | Sheet | 8.5/6 | 8.5 | 150 @ 150 | 66.659 | 5.157 |
AS/NZS 4671:2001 Australia/New Zealand Standard (SIZE:6000X2400mm)
Ref No. | Std Unit | Longitudinal | Edge Wires mm | Cross Wires mm | Mass Kg |
SL81 (F81) | Sheet | 7.6 @ 100 | 7.60 @ 100 | 7.60 @ 100 | 105 |
SL102 (F102) | Sheet | 9.5 @ 200 | 6.75 @ 100 | 9.50 @ 200 | 80 |
SL92 (F92) | Sheet | 8.6 @ 200 | 6 @ 100 | 8.60 @ 200 | 66 |
SL82 (F82) | Sheet | 7.6 @ 200 | 5.37 @ 100 | 7.60 @ 200 | 52 |
SL72 (F72) | Sheet | 6.75 @ 200 | 4.77 @ 100 | 6.75 @ 200 | 41 |
SL62 (F62) | Sheet | 6 @ 200 | 4.77 @ 100 | 6 @ 200 | 33 |
SL52 (F52) | Sheet | 4.77 @ 200 | 4.77 @ 100 | 4.77 @ 200 | 21 |
BS4483 BRITISH STANDARD Round bar
Ref No. | Std Unit | Longitudinal | Cross Wires mm | Pitch of wire | No. of sheet per ton | Mass Kg/m2 |
A393 | Sheet | 10 | 10 | 200 @ 200 | 15 | 6.16 |
A252 | Sheet | 8 | 8 | 200 @ 200 | 22 | 3.95 |
A193 | Sheet | 7 | 7 | 200 @ 200 | 29 | 3.02 |
A142 | Sheet | 6 | 6 | 200 @ 200 | 40 | 2.22 |
A98 | Sheet | 5 | 5 | 200 @ 200 | 57 | 1.54 |
More Details
Product Name | Reinforcing welded wire mesh |
Materil | Rebar ,Steel rod |
Origin | China(mainland)Shaanxi |
Brand | DEK |
Model | DEK-RM-B12.2.2810 |
Feature | Welding firm,Prestressed strong,Anti-corrosion,Anti-oxidation |
Applications | Highway,Cement concrete pavement,Bridges,Tunnel lining, Floor slab,Roof,Walls |
Welding Methods | 1.Electric shock pressure welding 2.Flash butt welding 3.Electric arc welding |
Welding Form | 1.Overlap welding 2.Single welding 3.Sided welding |
Applications
All cross-points are welded together with strong electric resistance. With high precision, small error and high quality, it is widely used in many sectors. Reinforcing mesh has a wide variety of uses, ranging from the ordinary household to heavy industry. It is widely used in housing floor, roof, wall, terrace, concrete pavement, deck paving, airport runway, tunnel lining, concrete pipes, piles of industry and civilian, etc.
Packaging & Shipping
Company Information
Established in 2002, we are a Fence Exporter and Manufacturer with total assets of 80 million Yuan in Xi'an City, China.
Our company specializes in two main fence series, traffic fence barriers and meshes & fences.
Our products are widely used in various fields in our daily life, such as expressway, railway, stadium and airport.
Our business field is all over the world, such as the United State, Europe, Canada, Italy, Ukraine, Southeast Asia, the Middle East, Hong Kong, Taiwan, etc.
Our Services
Sample service
Sample service is available for our company. And sample time is about 5- 7 days.
Customized service
Customized service is also available for us. We can customize products according to your requirements.
After-sales service
1.Trade Assurance will guarantee the delivery time,dealine and good quality,as it's endorsed by Alibaba
2.The thirdparty inspection done by Alibaba will get real and true data and we will send production photos to customers if there is no inspection.
3.Installation ,maintenance and repair instructions with full informations
4.5-10 years warranty depends to different finish.
5.Accept Changing or Refunding if the products can not be installed rightly.
