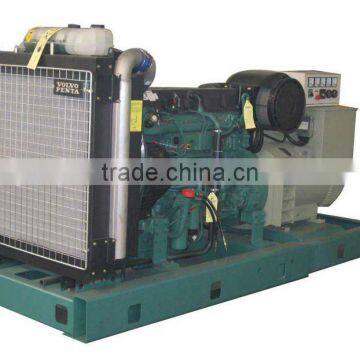

225kw to 450kw Hospital Emergency Auto Start Volvo Power Generation Equipment

   225kw to 450kw Hospital Emergency Auto Start Volvo Power Generation Equipment

volvo have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance

generator set :

Phase No.:3 phase, 4 wires

Voltage: 220V/380V, 230V/400V, 240V/415V

Frequency: 50/60HZ

Voltage adjusting: AVR

Power factor: 0.8/1.0

Hz-adjusting range: 0-5%

V-adjusting Range:  ≥95%-105%

Adjusting rate of sustained voltage: 1%

Engine: VOLVO

Type: 4 strokes direct jetting pressure increased air-to-air inter-cooling

Arrangement-cylinder: Vertical arrangement

Type of Governor: Electronically

Starting: By electricity

Alternator: Stamford,LeroySomer, Marathon,Engga

Type: brushless

Bearing: single/ double bearing.

Damping windings: full damping

Safety Guard Grade: IP21-23

Insulation grade: H grade

Short-circuit protection: Air switch

 Control plane: Smartgen, Deepsea,ComAp

1) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current

2) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers

Supply standard collocation:

Diesel engine with all accessories, 3 filter, electric systems


Alternator

Steel structure

Fan and water tank(Fan and water tank cooling system)

Flange connector

12 / 24V starting motor and charge engine

Air cleaner, fuel cleaner, oil cleaner

On-board control panel

MCCB air conservation switch

12 / 24V starting accumulator and Battery line

Set shock absorber

High-efficient silencer

Warranty and Maintenance

1) Do the full power load test for five hours before package.

2) One year or 1000 working hours, whichever comes first.

3) After expiration, we provide spare parts maintenance with low price.

Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Four hours testing before out factory and CCIB inspection

5. ISO9001:2000 and CE certification
