Home > Products > Kubota generator set > Top Quality ! 6kw Silent Generator

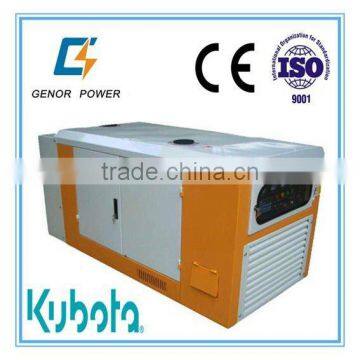

Top Quality ! 6kw Silent Generator
- Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Kubota | |
| Model Number | GNR | Output Type | AC Three Phase | |
| Speed | 1500rpm or 1800rpm | Frequency | 50Hz or 60Hz | |
| Rated Power | 6kw | Rated Voltage | 127V/220V, 220V/380V, 230V/400V, 240V/415V | |
| Rated Current | 11A |
Product Description
Specifications
6kw Silent Generator1) Kubota Generator
2) Prime Power :6kw
3) Competitive price&super Silent
4) CE
Top Quality ! 6kw Silent Generator
3-PH, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)
1. Composed of Kubota diesel engine and Stamford or Leroy Somer alternator
2.12V DC start motor and storage battery Brushless, Self-excited, IP23, insulation class H alternator
3. 40°C radiator as standard, 50°C is optional
4.Key start panel control system as standard, digital auto-start panel is optional
5.8-hour operation base tank
6.Optional open type or silent type
7. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop).
Kubota Generator set
Prime Power | 6KW/7.5KVA | Standby Power | 6.6KW/8.25KVA |
Rated Speed | 1500RPM | Output Frequency | 50HZ |
Phase | 3 | Rated Voltage | 400V |
Engine Model | D905-E2BG1-SAE-2 | Alternator Model | PI044D |
Fuel Consumption of 100% load | 2.2L/H | Fuel Consumption of 75% load | 1.8L/H |
Voltage Regulation Rate | ≤±1% | Random Voltage Rate | ≤±1% |
Frequency Regulation Rate | ≤±5% | Random Frequency Variation | ≤±0.5% |
Dimension (open type) | 920×600×820(mm) | Weight (open type) | 280kg |
Dimension(silent type) | 1100×650×890(mm) | Weight (silent type) | 360kg |
Kubota Diesel Engine
Engine Model | D905-E2BG1-SAE-2 |
Number of Cylinder | 3 |
Cylinder arrangement | Vertical in-line |
Cycle | Four Stroke |
Aspiration | Natural Aspiration |
Bore×Stroke (mm×mm) | 72×73.6 |
Displacement | 0.898L |
Compression Ratio | 23.0:1 |
Prime Power/Speed(KW/rpm) | 6.73 /1500 |
Standby Power/Speed(KW/rpm) | 7.4/1500 |
Speed Governor | Electric |
Cooling System | Water-cooled, 4°C Radiator As Standard, 50°C Is Optional |
Speed Stability (%) | ≤5% |
Total Lubrication System Capacity (L) | 2.2 |
Coolant Capacity(without radiator) (L) | 3.7 |
Fuel Consumption at 100% Load(L/Hr) | 2.2 (at 1500RPM) |
Starter Motor | DC12V |
Alternator | AC12V |
Stamford Alternator
Alternator Model | PI 044D |
Alternator Brand | Stamford |
Exciter Type | Brushless, Self-excited |
Rated Output | 6kw/7.5kva |
Rated Speed | 1500RPM |
Rated Frequency | 50HZ |
Phase | Three |
Rated Voltage | 230V/400V (Available with customer requirements) |
Power Factor | 0.8 |
Voltage Adjust Range | ≥5% |
Voltage Regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
Harsen GU601A Genset Controller
Description:
The GU601A is an Automatic Start Control Module designed to automatically start and stop the Generator.
The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED’s.
1.Configuration of parameters by front panel push buttons or by PC via mini USB interface with license free software.
2.Configurable fuel output energise to stop energise to run.
3.3 Configurable inputs.
4.3 Configurable outputs.
5.2 Analogue inputs configurable for different senders for oil pressure and engine temperature.
6.True RMS measuring.
