Qingdao 50kva Three Phase Electric Start Diesel Generators With Perkins Engine
- Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | UK imported | |
| Model Number | GNRP | Output Type | AC Three Phase | |
| Speed | 1500rpm or 1800rpm | Frequency | 50Hz or 60Hz | |
| Rated Power | 50kva | Rated Voltage | 220V/380V, 230V/400V, 240V/415V | |
| Rated Current | 72A |
Product Description

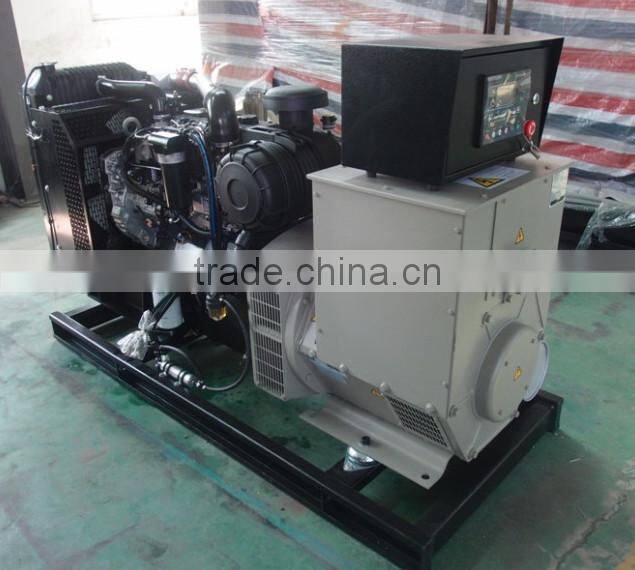

Qingdao 50kva Three Phase Electric Start Diesel Generators with Perkins Engine
For 75 years Uk imported engine has led the field in the design and manufacture of high-performance diesel engines. Its continuous development programme allows Pekins to offer one of the most advanced and comprehensive ranges of purpose-built diesel engines available today.
Ranging from 5 to over 2,600 hp, the engines power more than 5,000 different applications from over 1,000 major equipment manufacturers in the construction, power generation, materials handling, agricultural and general industrial markets.
50kva Generaor specification
DIESEL GENERATOR SET | Diesel GenSet Model | GNRP50 |
Prime power (KW/KVA) | 36/45 | |
Standby power (KW/KVA) | 40/50 | |
Rated voltage(V) | 230/400 | |
Rated current (A) | 64.8 | |
Frequency(Hz) | 50 | |
Rated Rotary Speed (RPM) | 1500 | |
Power factor | 0.8 | |
Power supply mode | 3 phase,4wire | |
Starting method | 24 V DC | |

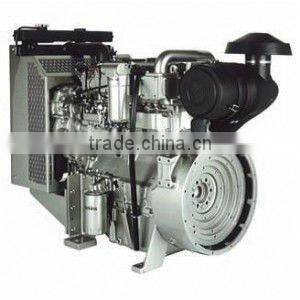

ENGINE | Diesel Engine | UK imported Engine |
Model | 1103C-33TG3 | |
Engine prime power (KW/KVA) | 42.2/52.75 | |
Engine standby power(KW/KVA) | 46.5/58.125 | |
Cylinder Qty. | 3 | |
Fuel consumption.(L/ h) | 215 | |
Bore(mm) *Stroke (mm) | 105*127 | |
Compression rate | 14.5:1 | |
Cooling liquid volume (L) | 60 | |
Displacement(L) | 3.3 | |
Lubricant capacity (L) | 6.2(min) | |
Cooling method | Water cooled | |
Intake method | Turbocharged | |

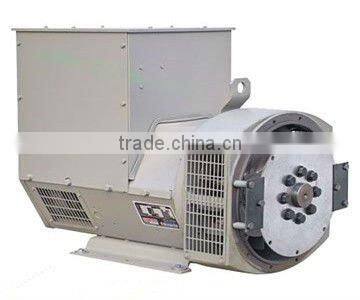

ALTERNATOR | Alternator Features: 1. ENGGA,Stamford, Leroy Somer, Marathon 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof | |

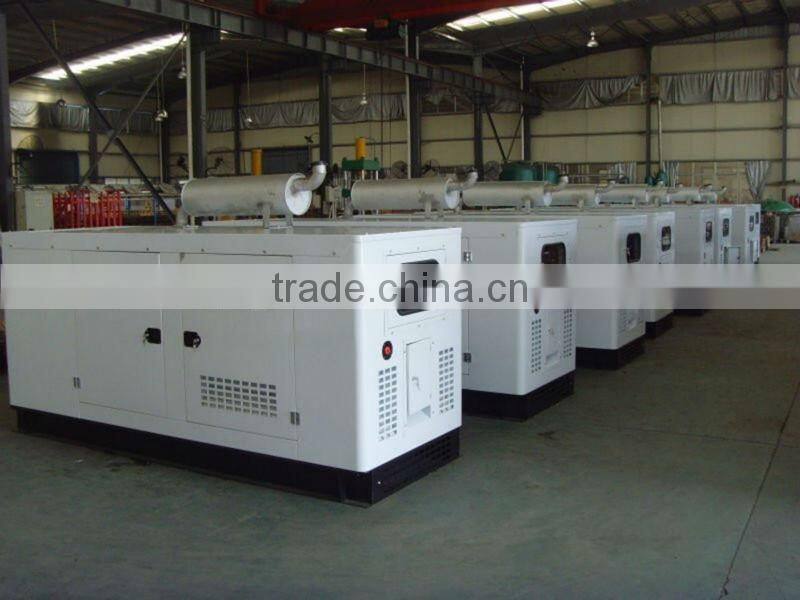

Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA

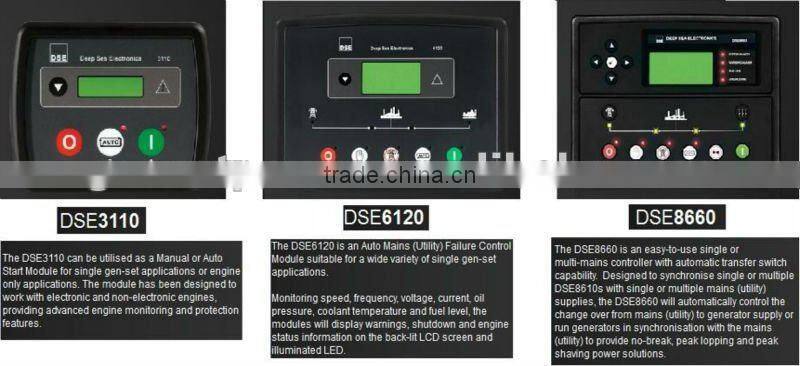

Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
5. ISO9001 and CE certification
