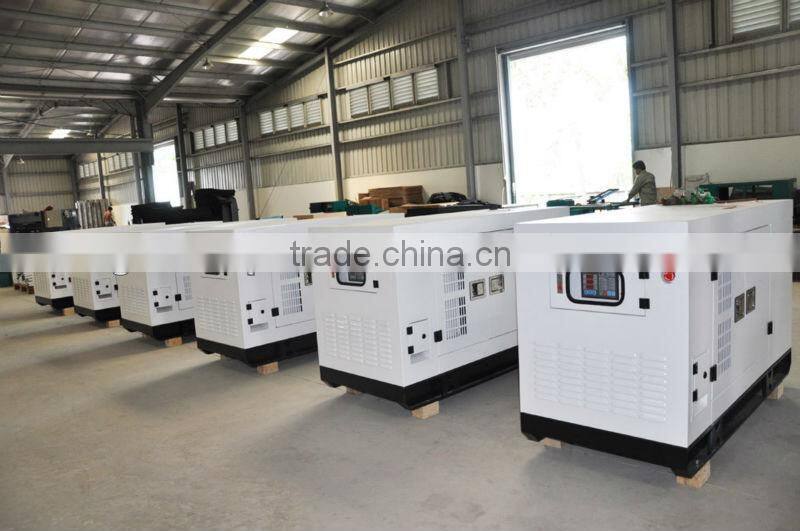

Diesel Power Force Generator Set

detailed product description:
1) Rated output: 20kva to 1250kva

2) Rated voltage:  220V/380V, 230V/400V, 240V/415V

3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8.

Engine

1)Cooling method: closed water cooling

2)Multi-cylinder in-line or veer engine, 4-stroke, direct injection

2)Starting method: electric start
3)Rated speed: 1,500 / 1,800rpm

Alternator:
1) Brand:  Stamford,LeroySomer, Marathon,Engga

2) Rated output: 20kva to 2000kva

3) Rated voltage: 400 / 230V according to your requested
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP21-IP23

14)Connect with engine:Direct coupled with flywheel

Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
i) With EPA certification
