Product Details
| Place of Origin | Guangdong, China | Brand Name | genor power | |
| Model Number | GNRC | Output Type | AC Three Phase | |
| Speed | 1500rpm or 1800rpm | Frequency | 50Hz or 60Hz | |
| Rated Power | 300KW | Rated Voltage | 220V/380V, 230V/400V, 240V/415V | |
| Rated Current | 540A |
Product Description

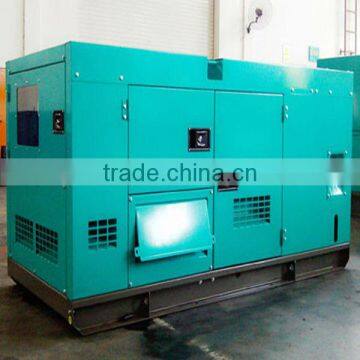

Canopy Version Diesel Engine Powr 300kw Generator Set
Diesel generator | Genset Model | GNRC413 | |
Rating Power (KW/KVA) | 300/375 | ||
Standby Power(KW/KVA) | 330/412.5 | ||
Rating Ammeter(A) | 541 | ||
Diesel engine | General data | Engine model | NTA855-G7A |
Prime Power(KW/HP) | 336/457 | ||
Standby Power(KW/HP) | 369/502 | ||
number of Cylinder & Configuration | 6 cylinders in line | ||
Bore X Stroke (mm) | 159X159 | ||
Displacement(l) | 19 | ||
Compression Ratio | 13.9:1 | ||
Governor type | Electronic governor | ||
Rated RPM | 1500 | ||
Exhaust system | Exhaust gas flow(m³/min) | 71.6 | |
Max. Exhaust Gas Temperature(°C) | 524 | ||
Max. Exhaust back Pressure(KPA) | 10 | ||
Air intake system | Aspiration Type | Turbo & After cooled | |
Max. intake depression(mbar) | 6 | ||
Combustion air Volume(m³/min) | 25.9 | ||
Fuel system | Rating Fuel Consumption(l/h) | 83 | |
75% full Fuel Consumption(l/h) | 84 | ||
Lubrication system | Total oil capacity(l) | 50 | |
Max permissible oil temp(°C) | 121 | ||
Oil pressure at rated rpm(KPA) | 241_345 | ||
Cooling system | Total Coolant capacity(l) | 91 | |
Max. temperature of coolant(°C) | 100 | ||
Fan cooling air flow(m³/min) | 490 | ||
Alternator | Alternator model | MGA315-300-4S | |
Rating Voltage(V) | 400/230 | ||
Rating Capacity(KW/KVA) | 300/375 | ||
Eff.% | 93.5% | ||
Power Factor | 0.8 | ||
Exciting type | Brushless self-exciter AVR | ||
Voltage regulation | ±1% | ||
No. of Phase | 3 phase 4 wire | ||
Enclosure Class | IP121 | ||
Class of Insulation | H | ||
Battery | Rating Capacity(AH) | 2X150AH 12V | |
Dimension | Generator set dimension (LXWXH) | 3220x1380x15350 | |
Weight | Generator set Net Weight (kg) | 3600 | |
Performance Feature
Engine and alternator shall be mounted on a same frame steel skid.
Built-in damper for anti-vibration.
World most famous brand diesel engine.
World famous brand AC alternator.
Advanced and reliable control module
Full range protection function and alarm shutdown feature.
Alternator Feature
Brush-less, 4 poles, rotation magnet.
IP21-23(NEMA1) enclosure is standard for all industrial alternators.
The insulation system is Class H
Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
Wide range of flange adaptors and single bearing disc coupling.
Standard 2/3 pitch windings avoid excessive neutral currents
AVR auto voltage regulator, auto exciter, auto adjustment
Silent Canopy Description
Standard Accessory:
Steel Weatherproof Canopy
Built In Fuel Tank For 8 Hours Running
Built In Control Panel
Built In Start Battery
Power Output Rapid Insert
Windows for Looking
Air Louver for Intake & Exhaust
Exhaust Gas Silencer
Soundproof Type
Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.
Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, and Moving Trailer.
