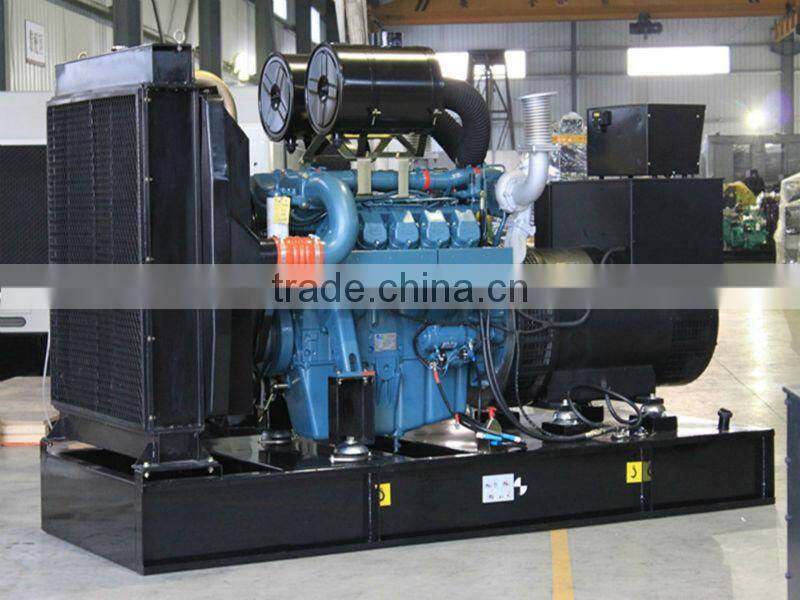

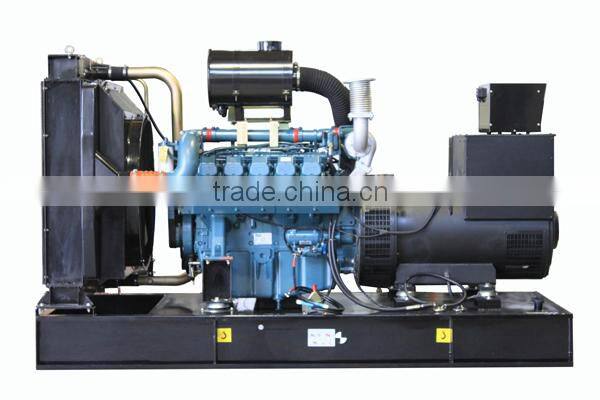

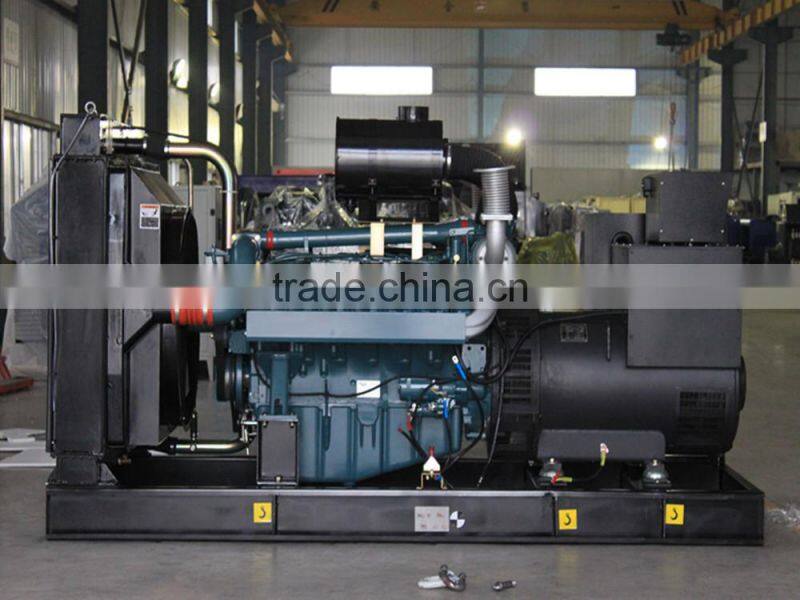

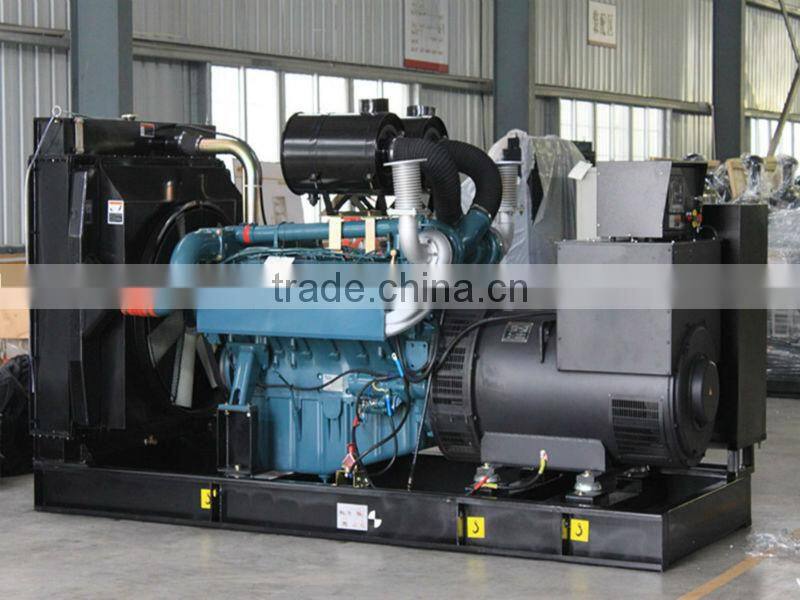

Silent Doosan Automatic Backup Power Generator 500kw

Silent Doosan Automatic Backup Power Generator 500kw

  The Doosan series diesel generator sets which pushed out by Daewoo Heavy Industry from South Korea, they are widely used in national defence, aeronautics & space industry etc with the advantages of Small volume, less noise, economic as well as reliable performance.

Technical parameters of diesel generator sets:

Specifications:

Genset

1. Output range:50KW-500KW

2. Available Engine: Doosan(Daewoo)

3. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank and fanair cooling

4. Key start / auto start

5. Monitoring meters and control switches

6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure

Alternator:

1. Brushless, 4 poles, rotation magnet

2. IP21-23(NEMA1) enclose is standard for all industrial alternators

3. H class insulation system

4. AVR self-regulated, voltage regulation rate: ≤±1%

5. Wide range of flange adaptors and single bearing disc coupling

6. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

7. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control Panel:

1. Controller Brand: Smartgen, Deepsea,ComAp

2. Control Panel: English interface,LED screen and touch buttons.

Main Functions:

a- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

b- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

c- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

Standard scope of supply:

1. Diesel engine(with all standard accessories, filters and electric system)

2. Radiator (with water tank and fan)

3. Alternator

4. Control panel

5. Steel base frame

6. All above parts are assembled into a whole.
