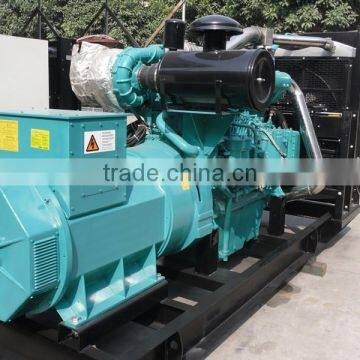

Electric Deutz Generator 150kw diesel engine with Stamford Alternator

  Electric Deutz Generator 150kw diesel engine with Stamford Alternator

Genor Power Deutz series diesel generator setd adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-Venture Company in China.The DEUTZ engines are 4-cycle,water cooled, 24DVC working voltage for conrol system,adopt circumvolve fuel fiter&oil filter cleaner, Dry air cleaner,compact structure,fine quality,reliable capability

General Technical Data

1. Frequency: 50 & 60Hz

2. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire

3. Voltage: 120/207V,127/220V,220/380V, 230/400V, 240/415V, etc

4. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank

5. Monitoring meters and control switches

6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure

The specification of engine:

1. engine model:  deutz

2. engine part :water tower,fan,fuel tank

3. governor system:electrical or mechanical governor

4. aspiration mode:natural, turbocharged

5. start method: 12V/24V DC electric starting

6.low fuel cnsumption,low noise,small volume,light weight

7.3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions

The specification of alternator:

1.alternator model: stamford, Leroy, Marathon.Engga

2.regulator: AVR automatic voltage regulating

3.insulation degree: H degree

4.power factor:3 phase 4 wire

5.Motor: bronze brushless

6.IP21-23 enclosure

Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop

optional:

1. Auto-remove Monitor Panel

2. Auto Transfer System(ATS)

3. Auto-combine Cabinet

4. Sound proof canopy

5. Intelligent controlling system

Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
