Home > Products > hot water boiler > Greenhouse Use Oil Fired Gas Hot Water Boiler
Greenhouse Use Oil Fired Gas Hot Water Boiler
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Natural Circulation | |
| Usage | Industrial | Structure | Water Tube | |
| Pressure | Other, ordinary pressure | Style | Horizontal | |
| Fuel | Other, oil/fuel/biomass/gas | Place of Origin | Shandong, China | |
| Brand Name | JINDUN | Model Number | hot water boiler | |
| Output | Hot Water | Dimension(L*W*H) | Customization | |
| Weight | Customziation | Certification | ISO CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

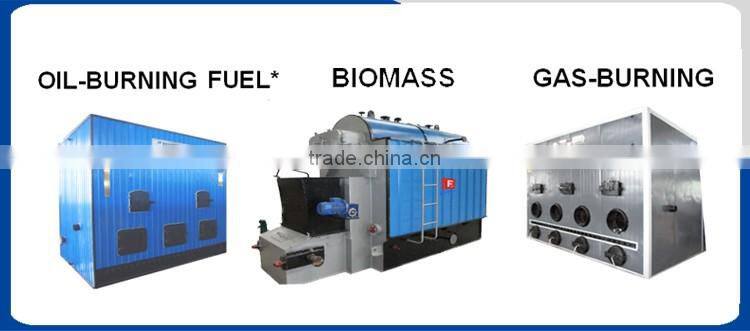

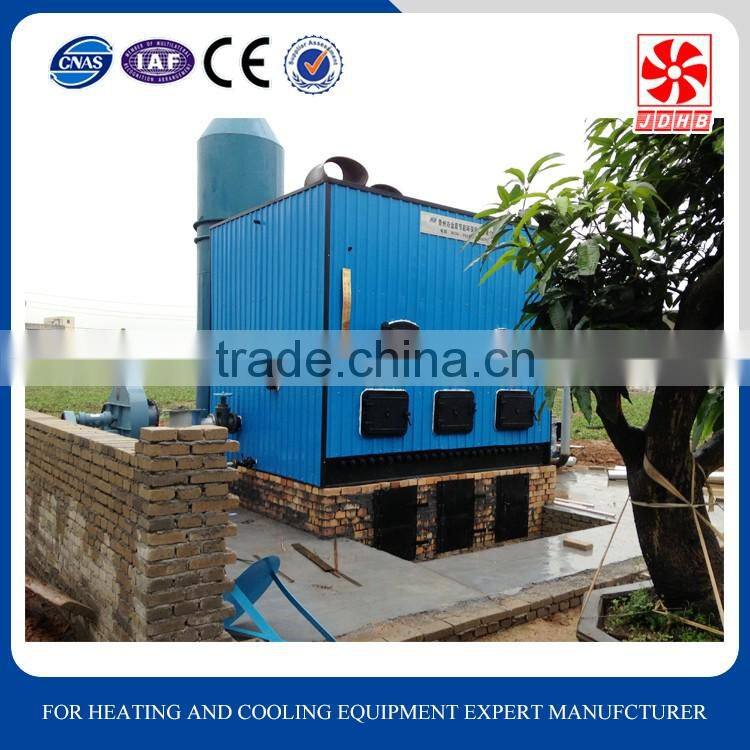

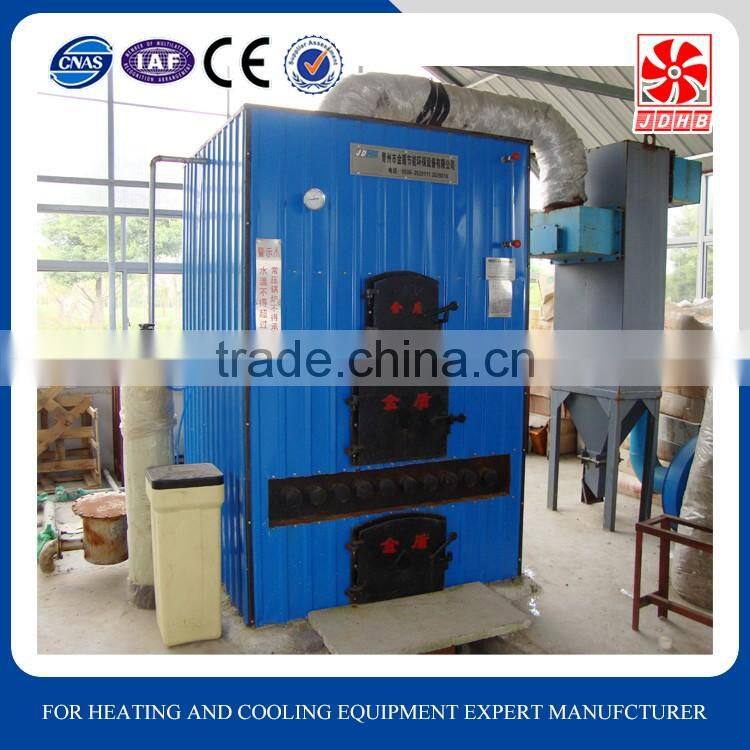

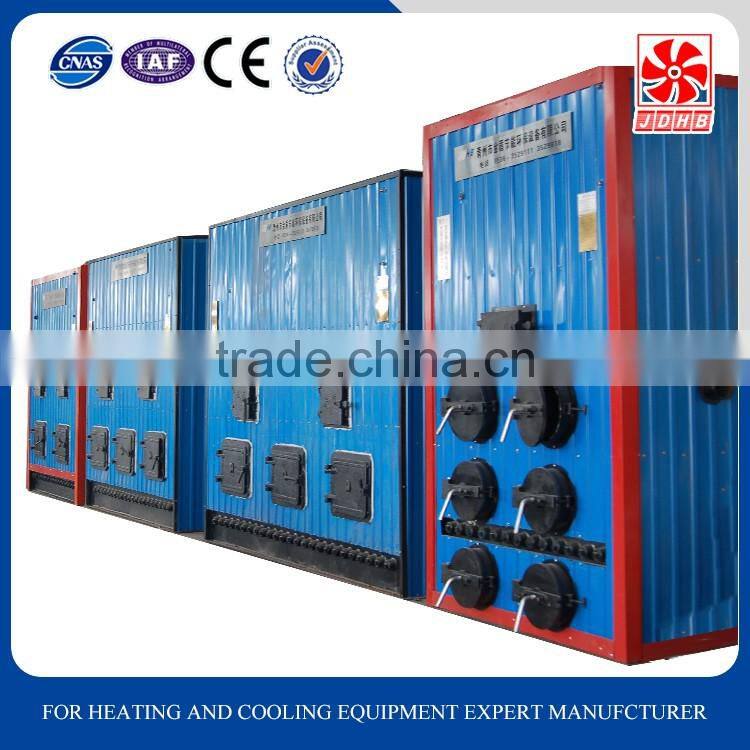

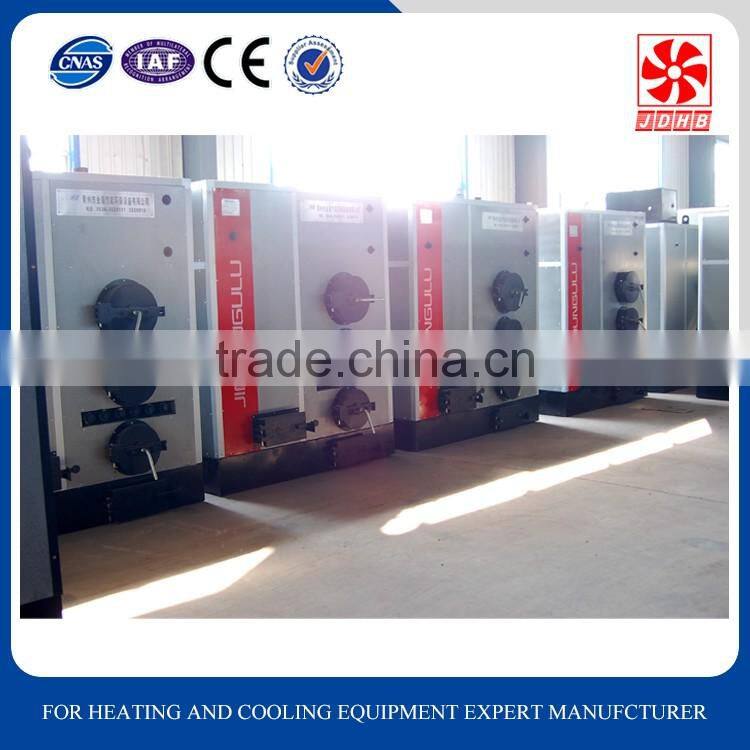

Greenhouse use oil fired gas hot water boiler

Adoption of high-effective hat exchange tubes, Greenhouse use high quality hot water boiler with low price, together with reasonable flow velocity of smoke and gas, makes thermal efficiency of boilers 6%-8% higher than national standards
With mounted convex tube sheets and spirally corrugated tubes, quasi-rigid shells are converted into quasi-elastomer.
Owning to scientific water circulation system, Greenhouse use high quality hot water boiler with low price, plus the unique supply water injectors, flow velocity of water in ascension pipes is increased With installed energy-saving and intensively-radiant furnace arch, stabilized combustion of bitumite and anthracite is guaranteed.
Top-quality auxiliary machinery with high standard, as well as automatic control equipment ensures stable operation.
With the help of inertia separation of smoke and dust in boilers, Greenhouse use high quality hot water boiler with low price, together with complementary high-effective multi tube dust cleaners, the concentration of dust discharge from boilers is within the requirements on class I of environmental protection.
Parameters:
| Model | Fuel Available | Boiler capacity Mr,t/h | Heat Output (kcal/h) | Covering area(m²) | Fuel Consumption | Chimney (OD*Height)mm/m | Suction fan Power KW | Water pump power KW | **Overall dimensions(L*W*H) (mm) |
| JD-0.5T | Oil | 0.35, 0.5 | 300,000 | 3,000 | 32.5kg/h | Φ200*6 | 1.1 | 1.5 | 1530*1400*2650 |
| Gas | 42.23CBM/H | ||||||||
| JD-0.67T | Oil | 0.46, 0.67 | 400,000 | 4,000 | 43.3kg/h | Φ219*6 | 1.5 | 2.2 | 1640*1550*2750 |
| Gas | 56.30CBM/H | ||||||||
| JD-0.8T | Oil | 0.58, 0.8 | 500,000 | 5,000 | 54.0KG/H | Φ250*6 | 2.2 | 3.0 | 1700*1650*2750 |
| Gas | 70.38CBM/H | ||||||||
| JD-1.0T | Oil | 0.70, 1.0 | 600,000 | 6,000 | 65.0kg/h | Φ275*8 | 3.0 | 4.0 | 2150*1950*2750 |
| Gas | 84.46CBM/H | ||||||||
| JD-1.5T | Oil | 1.01, 1.5 | 900,000 | 10,000 | 97.5kg/h | Φ300*10 | 5.5 | 7.5 | 2300*2100*3350 |
| Gas | 128.66CBM/H | ||||||||
| JD-2.0T | Oil | 1.40, 2.0 | 1,200,000 | 13,000 | 131.0kg/h | Φ350*12 | 7.5 | 11.0 | 2750*2600*3350 |
| Gas | 168.62CBM/H | ||||||||
| JD-30.T | Oil | 2.10, 3.0 | 1,800,000 | 20,000 | 195.0kg/h | Φ400*14 | 11.0 | 15.0 | 3200*2750*3350 |
| GaS | 263.58CBM/H | ||||||||
| JD-4.0T | Oil | 2.80, 4.0 | 2,400,000 | 26,000 | 260.0kg/h | Φ450*16 | 15.0 | 18.5 | 4200*3000*3350 |
| Gas | 337.9CBM/H |


Company Information

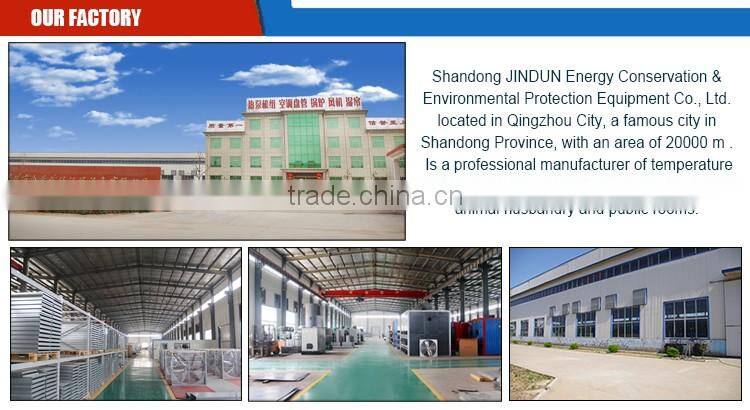

Shandong JINDUNEnergy Conservation & Environmental Protection Equipment Co., Ltd., located in Dongxia industry estate of Qingzhou city, with 20,000m2area, is a professional manufacturer of temperature control equipment for agriculturial and industrial ventilation, cooling or heating system, such as exhaust fan, cooling pad, air condition generator and Greenhouse use high quality hot water boiler.
Since 2005, as the market leader in manufacturer exhaust fan, evaporative cooling pad, air condition generator, hot air stoven and Greenhouse use high quality hot water boiler , we provide not only high quality goods but also more additional benefits for our clients and partners.

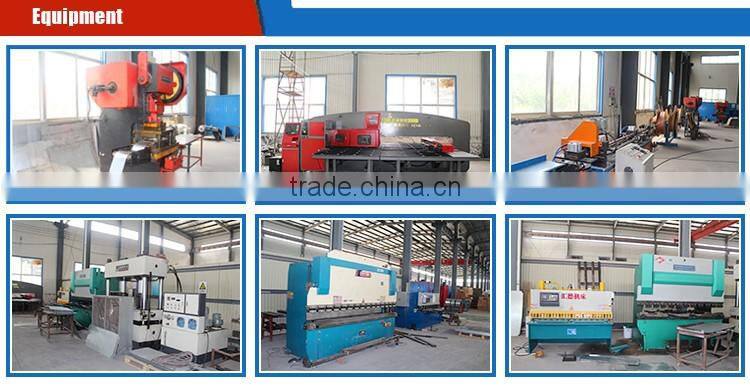

With advanced production equipment, superb manufacturing process, strict management and with good quality product, we have gotten the certificate of ISO9001 and CE
Under our business ideas "Mutual benefit is based on sincerity ", our goods are sold better and better. Now we are exporting more than 100 countries and areas all over the world. Our annual output is more than 20 million US DOLLAR.
Facing the market, our company will rely on a strong unity, forge ahead with determination and a leadership and workforce to meet the challenge, in fierce competition in the market ahead waves.
JINDUN will be your best business partner.
What We Have
l ChinaLeading Producing Technology
l Super High Quality
l Competitive Price
l Big Production Ability
l Fast Delivery
l Ten Years' Export Experience
l Excellent Sale and After-sale Service
l OEM Available

FAQ
1.Are you a factory or a trading company?
JINDUN EQUIPMENT CO., LTD. is a professional Manufacturer of temperature control equipment since 2005.
2.Can I be your agent?
Yes, welcome to deep cooperation. We have big promotion of JINDUN brand in the market now.
For the details please contact with our overseas manager.
3.Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
4.Are the products tested before shipping?
Yes, all of our products were qualified before delivery. We test every batch every day.
5.What's your quality guarantee?
We will offer client one year quality guarantee time.
6.What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
product recommendation
| Brand name | JINDUN Or OEM |
| Products range | Exhaust Fan, Ventilation cooling Fan, Evaporative cooling Pad, Air conditiongenerator,Hot air stoven, Hot water Boiler |
| Certificate | ISO9001; CE; TUV; SGS |
| Main Market | Asia, Africa, South America, Middle East, Europe, etc |
