Wooden Pallet Block Making Machine(0086-15903675071)
USD $5,000 - $18,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
You May Like
-
Profitable Transport Pallet Making Machine(0086-15903675071)
-
Henan machine making wood pallet for consignment(0086-15903675071)
-
Recycle wooden pallet making machine made in China(0086-15903675071)
-
Waste wood recycling wood pallet making machine +86-15837162831
-
Making wood sawdust pallet mahcine in Turkey(0086-15903675071)
-
strong bearing sawdust pallet making machine in zhengzhou(0086-15903675071)
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Thoyu | Model Number | TY series | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Wooden pallet block making machine used to making blocks
---------------------------------------------------------------------------------------------------Brief Introduction of Wooden Pallet Block Making Machine
1.The production line consists of FIVE PARTs which is as follows:
Crusher,Dryer, Gluing Machine, Press Machine and Saw to cut up the block.
2. The raw material is sawdust, wood shavings, waste wood, used pallet etc.
NOTE: If the raw material size is not very big we do not suggest crushing first.
3. The pallet block's size can be made by customer's demands.
---------------------------------------------------------------------------------------------------Main Parameter of Wooden Pallet Block Making Machine
| Items | Specifications | |
| Model No. | TY-PB150( Double head) | TY-PB100(Single head) |
| Block Size | Width:75-145mm; Height:75-145mm | |
| Power | 20.3KW | 13KW |
| Glue Consumption | 200-240Kg/m³ | 100-120Kg/m³ |
| Block density | 550-750Kg/m³ | |
| Production Capacity | 4m³/24h | 2m³/24h |
| Voltage | 380V, 50HZ | |
| Weight of the machine | 1500Kg | 1000Kg |
| Dimension of the machine | 5000*700*1300mm | 5000*600*1300mm |

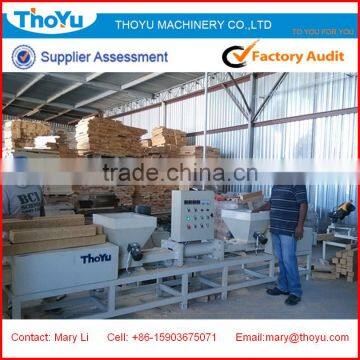

Detailed Pictures of Wooden Pallet Block Making Machine
Any questions, plz contace me:
Contact Us
- Zhengzhou Thoyu Import & Export Trading Co., Ltd.
- Contact nameCarol Tho Chat Now
- Phone86-371-65368307
- AddressHuiYuan Building, No.14 of JingBa Road, Jinshui , Zhengzhou, Henan, China, Zhengzhou, Henan
