Widely Applied Unique Blades and Barrel Double Double Movement rotary drum mixer

        Widely Applied Unique Blades and Barrel Double Double Movement  rotary drum mixer

Company brief introduction

 Our factory is a professional manufacturer for mixing machine. We are an ambitious company with personality and strong ability in R&D. We do a lot of customization orders every years. You will not regret for your choice in us.

Product introduction of rotary drum mixer

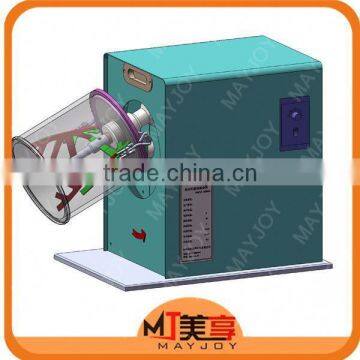

MJT rotary drum mixer is an advanced mixing machine which is developed by our company.
 We committed to be an innovative,scientific research and technical enterprise.

This rotary drum mixer can be installed in different sizes of the vessel(2L~8L).It's convenient to remove and clean up the whole vessel and blades,prevent cross-contamination materials and meet your multiple small batch mixing experiment tasks.

This rotary drum mixer has special antler shaped blades and the speed of the blades is 1.5 times as the vessel.During the material up and down or convection in the vessel,high evenness of mixing task can be completed because of the bidirectional shear and toggle of the antler shaped blades .


This is a speed (2~35r/min) of the double movement of energy efficient mixing machine and it can meet your a variety of hybrid experiment.

ADVANTAGE of rotary drum mixer

1. Small-sized:
  The out-form dimensions are 540*300*390mm and the single-phase electric power is 220V. So you can put it on the laboratory desk and it can be handled easily.

2. One Machine Multiple Containers
 One rotary drum mixer can be used as multiple machines. Different volume containers (3L-18L)can be installed whenever needed.

3. High Loading Ratio:

 Compared with ordinary 3D mixer, ours' loading ratio is much higher. Because blades take major role in machine working. That is why our double movement mixer's loading ratio is high, max. Loading rate can reach 80% of barrel. For the same volume, the loading capacity of our one machine is almost equivalent to two 3D mixers.

4. Ideal Mixing Effect:

100% no dead corner. Due to the barrel revolving, the rotary drum mixer can mix more evenly in general points. While blades stirring, the machine can mix more meticulously and completely in detail points.
5. Time-saving:

 The mixing way of our rotary drum mixer is two mixing ways superposed together, that is why our rotary drum mixer has high efficiency. Compared with 3D mixer, our rotary drum mixer can save 60% time to meet mixing standard.

6. Money-saving:
Compared with traditional mixer, our rotary drum mixer can save time above 50%, save electricity about 70%, save space about 50%, money saving about 30%.

Application Range  of rotary drum mixer

1^st .Applied to dry powder or semi-dry powder, it is usually used in these fields, such as powder metallurgy, rare earth, and pharmacy and so on.

2^nd .Due to its high mixing efficiency, it is particularly suitable for mixing powder which demand strict requirement.

3^rd .Suitable for fine powder, superfine powder, powder with big difference in specific gravity.

Technical parameter of rotary drum mixer

Our facotory:

We also have a lot other models of rotary drum mixer available:

Welcome to comtact us for more information

...
