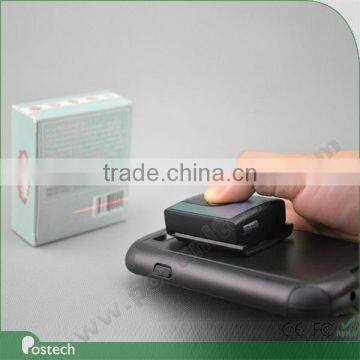

Innovative design laser barcode scanner jacket for mobile device

Model

MS3391-L 1D Laser Barcode Scanner

Dimension

57.8X 42.3X16.4mm

Weight

40g

Electrical

Power: DC5V Typical: 75mA DC5V

CPU

32bit ARM CPU

Data storage

100KB for offline mode: 6000 15 bytes barcodes

Working mode

Bluetooth mode, USB mode, offline mode and RS232 mode(optional)

Scan mode

Good-read off, Momentary, Alternate, Continuous, Host

Artificial light immunity

100,000 lux

Scanner performance

Sensor Type: Laser Diode 650nm

Scanner Rate: 100 times

Scanner Angle: ±50°,±65°,±35°(skew, pitch, Roll)

Contrast: >20%

Decode Speed: 100 times per second

Battery power

Internal Battery: Changeable 600mAh Li-ion Battery, Standby 5 days, working time after full charge with good decode as below:

Charge Time: About 1.5hours

Barcode Type

UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII,Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants

Decoding depth & Max. resolution

(1 mil = 0.0254 mm)

4 mil: 42- 75 mm

5 mil: 40-105 mm

10 mil: 10-250 mm

15 mil: 23-380 mm

20 mil: 35-490 mm

30 mil: 30-650 mm

55 mil: 75-900 mm

Communication

Class 3 Bluetooth SPP with 20M distance, USB, RS232 cable(optional)

Support

IOS, Android, Windows, Mac

Certificate

CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC etc

Utility Model Patent No.: ZL201420211350.8

Laser safety

IEC60825-1-2007, Class 1

Temperature

Operating: -10°C to 60°C (-4°F to 140°F);

Storage: -40°C to 70°C (-40°F to 158°F)

Humidity

5% to 90% (non-condensing)
