Home > Products > RFID Active Reader > 2.45G RFID Card

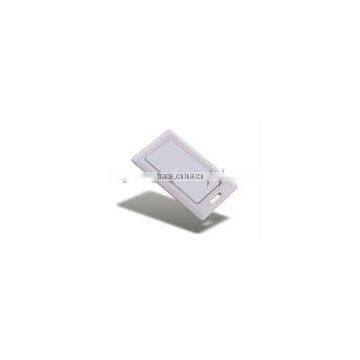

2.45G RFID Card
- Beijing
- Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | HCT | |
| Model Number | HCT-ACT-10201 |
Product Description
Specifications
water-proof, anti-dust, inderstry protection IP65The Microwave 2.4 GHz Active Tag is used to identify and/or perform micro-localization of items or persons,it is built around innovative 0.18 um low-power CMOS integrated circuits. This high scale of integration allows for very compact and low-power performance
Besides long-range identification and locating, configurable function is added onto the Microwave 2.4GHz Active Tag. Users can modify tag parameters accordingly, such as conversion between work mode and sleep mode, transmission interval, ID number, etc. This kind of tag increases its lifetime substantially. The unique more than 4 years battery lifetime is achieved without sacrificing the reading range
Communication |
|
Frequency | 2.4GHz2.5GHz, ISM frequency |
Read range | 0100 meters adjustable (free environment) |
Modulation | GFSK |
Communication mode | Read only |
Data rate | 1Mbps |
Anti-collision | 100 tags per second |
inderstry protection | IP65 |
Power | <6uA, 3V |
Output power | 0dBm |
Battery life | 3~4 years (irreplaceable) |
Physical |
|
Dimension | Card85.5*54*4mm Strip90*31*11mm |
material | ABS |
Weight | 25g |
Color | White or Black |
Environment |
|
Operating temperature | -2060 |
Store temperature | 030 |
Humidity | 90 non-condensing |
Typical Application:
Individual Locating; Logistics Warehouse and Vehicle Management
