Low cost 433Mhz RF Transceiver Module with built-in application protocols
- 5000 Piece / Pieces per Month
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Model Number | FC-RF271 |
Product Description
Specifications
433MhzWiFi, Bluetooth, Zigbee interference tolerant
Multi-Point to Multi-Point configurations
Fast-turn-around, minimal late

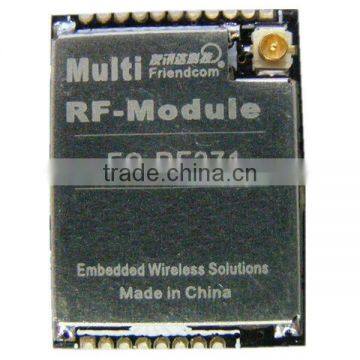

FC-RF271 is a complete, Ready-to-use wireless solution with its built-in user application interface. Includes RFID, ESN, Logic Switch Transmitter / Receiver, 9600,N,8,1 Serial UART and many easy-to-use addressable network modes. No development required at all, no RF layout, no code writing, all features are built-in. Be up and running with a full wireless solution in minutes.
Main Applications
• Active or Long Range RFID
• Remote Control
• Light Controls
• Home Automation
• Alarm Security
• Keyless Entry
• Perimeter Monitoring
• PC Keyboard Security
• Wireless Keyboard or Mouse
• Home Stereo Remote
• Asset Tracking
• Remote Switches or Terminals
• Wireless RS232 DB9 or RS485
• Temperature Control
• HV/AC
• Meter Reading
• Data Acquisition
• Inventory Control
• Keyfob Remotes
• Industrial Controls
• Vending Machines
Technical specifications:
Items | Parameters |
Part Number | RFD21733 |
Category | RF Module |
Type | Transceiver |
Band | 433 GHz |
Multi Frequency | Yes |
Package-Case | SMT |
Packaging | 90 pc per ray / 540 per factory box. |
Serial Interface | Yes |
Data Rate | 9600-8N1 |
Switch Logic Inputs | 1,2,3 |
Switch Logic Outputs | 1,2,3 |
RoHS Compliant | Yes |
Low Supply Voltage | 1.9V |
Typical Supply Voltage | 3V |
High Supply Voltage | 3.6V |
Transmit Current | 17mA, 2uA ULP |
Receive Current | 14mA, 2uA ULP |
FCC Approved | Yes |
CE - ETSI | Yes |
Indoor Range | 100 Feet (30 Meters) |
Outdoor Range | 500 Feet (150 Meters) |
Size - Width | 15mm (0.600 Inch) |
Size - Length | 15mm (0.600 Inch) |
Size - Height | 3.5mm (0.125 Inch) |
RF Interface | Built-In Chip Antenna |
RF Shield | Yes |
Pin Count | 19 |
Pin Pitch | 1.25mm (0.050 Inch) |
Error Handling | 16 BIT CRC |
Encoding | RFDP8 |
Decoding | RFDP8 |
Data Conditioning | RFDP8 |
Transmit Power | 0dbm |
