Super-sensitive Retail Security System Anti Shoplifting Security Gate Main Board 8.2 MHz With Board XLD-T07

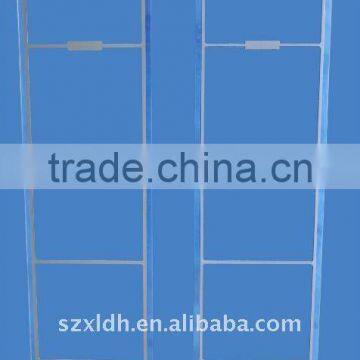

RF anntenna

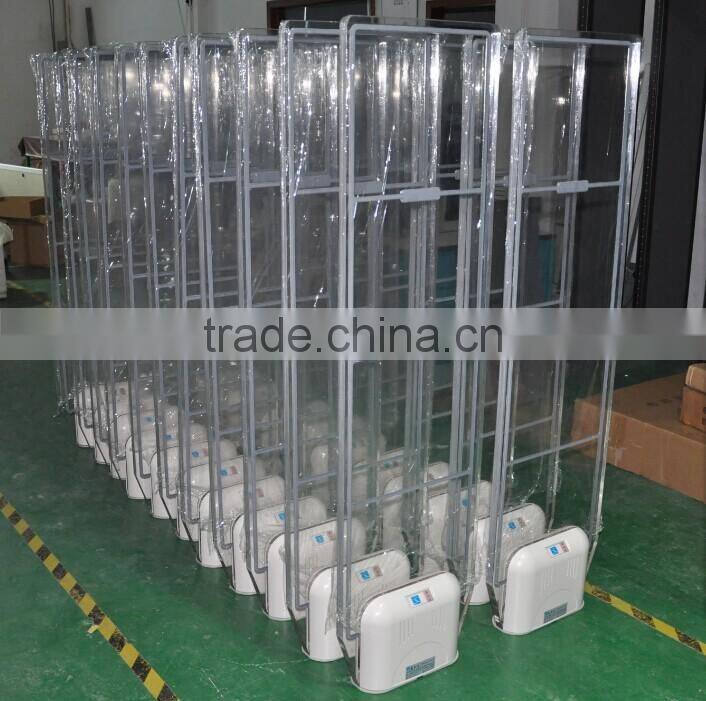

Material: import Acrylic, ABS bilateral plat and Steel base

Features:

The most advanced digital signal dispose technic.(possess knowledge property right.

Dynamic yawp restrain technique.      Automatic plus control techinique.

Fixing debugging is simple.                 The electrical source power consume is low.

Technical Parameter:

Detect range: 1.4  to 2.8M

 Frenquency: 8.2MHz±0.05MHz

Work temperature : 0∼40

 Deposited temperature : 40∼60

Comparatively  humidity: 5∼95(without cooling condensation)

The work electric pressure---18VAC.

 The work electric current----600mA

Insurance---250V,1A defer mode.

 Measure rapid: 2m/s

Input electric pressure : 220VAC

 frequency: 50/60Hz

 Range: 160VAC∼242VAC

 Out electric pressure 18VAC  1400mA

Description:

new generation EAS system, Adopting Auto-adaption electronic magnetic circumstance technology, false alarm is minimized to lower degree. Detecting range can reach 2.8m because of the 5th generation DSP technology and FPGA.

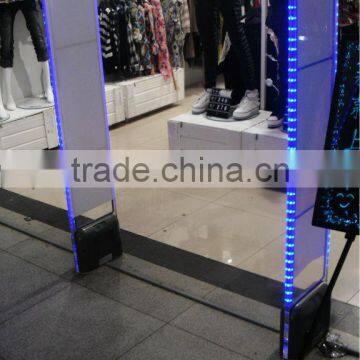

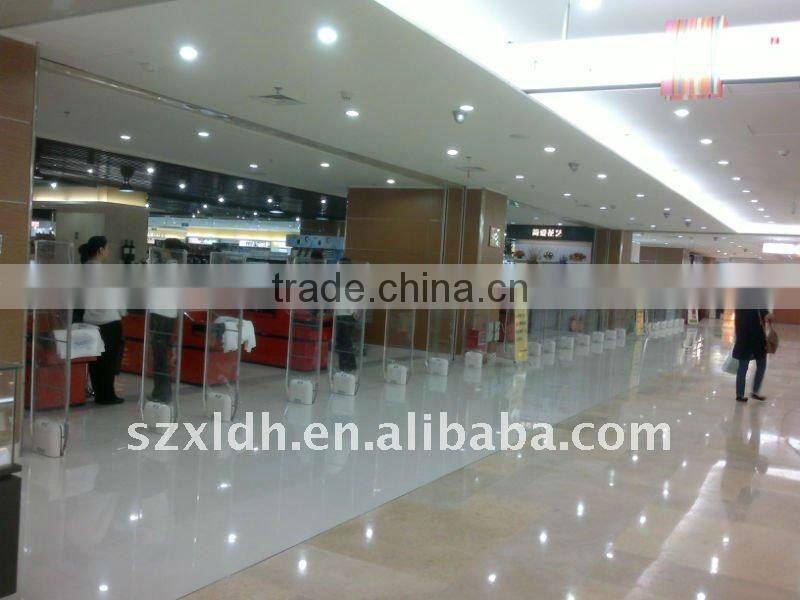

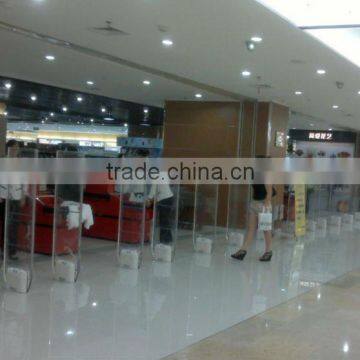

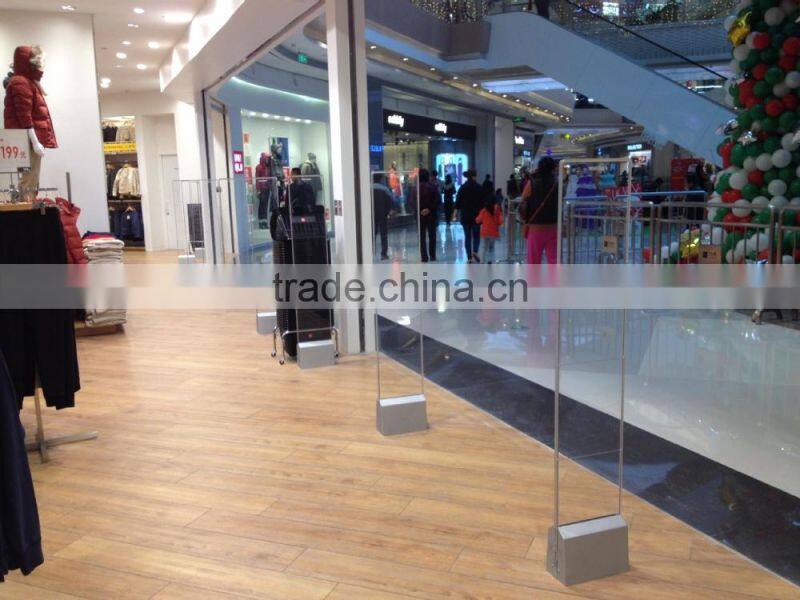

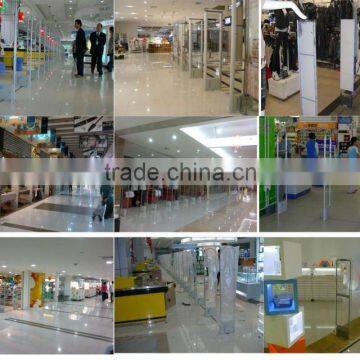

Suggested place; high-class garment store, shopping mall and plaza.
Low rate of false alarm: the 5th DSP technology, FPJA
Eas adjustment: software/ by hand
