Home > Products > RFID Device > Audio jack c ISO18000-6C (EPC Gen2)
Audio jack c ISO18000-6C (EPC Gen2)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Nexqo/OEM | |
| Model Number | RFID Reader |
Product Description
Audio jack c ISO18000-6C (EPC Gen2)
NEXQO has been one of the premier card maker in China simply based on two facts, that to make the best product and to maintain the best service, with annually over 100 million cards produced and distributed into more than 50 countries worldwide.
Nexqo is member of ICMA (International Card Manufacturer Association) and delivers qualified cards that has been certified in accordance with CE FCC and RoHS certificates.

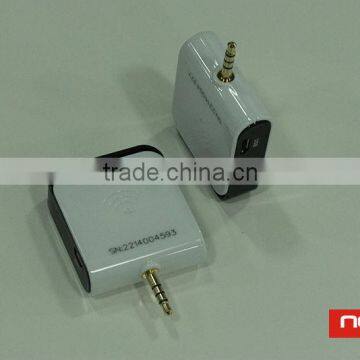

Audio Jack RFID UHF reader is the latest product promoted by Nexqo. It is a upgraded product based on Nex-S2, communicating with IOS and Android mobile phones via 3.5mm audio jack interface, realizing microminiaturization, low cost and civilianize of UHF reader, pushing real universalness of engineering for RFID application system.
It could be widely used in personal RFID terminal searcher, property & equipment stocking, intelligent browser, logistic electronic searcher, intelligent electronic guard tour, etc.
Specification:
Protocol | ISO18000-6C (EPC Gen2) |
Operating System Support | Android, IOS |
Running time | 4 hours |
Material | ABS+PC |
Size | 48mm* 42mm* 15mm |
Weight | 60g |
Battery Capacity | 550mA |
Charge Mode | USB, 5V/0.5A |
Working Temperature | -10°C- 60°C |
Interface | 3.5mm audio jack interface |
Indicator light |
Proper functioning: Green light on Reading ID of RFID tag: Green light flickers Reading data in block of RFID tag: Green light flicker Unit exception: No lights Low battery: green light flickers slowly Ultra-low battery: green light flickers quickly In charge: Red light on Charge completed: Green light on |
SDK: /SDK/SPLUS/
The reading distance of reader can reach 50-60 cm.
Mobile phones compatible with reader
Brand | Model No. |
SAMSUNG | I8150, I9508, I8190N, 9300, I569, N719, I939, N7100CC, I8262D, S5820, I9500, S7566, S7562i, S7568, S5830, S5830I, S6500D, S7562, I959, I519, I509 |
HTC | A6380, A510e, Rezound, A9191, S710E, T329t, S510b, T328W, T328D, X315E, Z710e, Z710 |
OPPO | U701T, R815W, U705T, U705W, R805, R823T, R801, R821T |
BBK | Y3t, X1S, Elt, X1St, Y11, S7, S6T, Y19T, S9, S6, X1w, S7t, X3t, X3+ |
Sony Ericsson | ST18i |
Sony | LT26i |
TETC | G19 |
eliteK | ET666 |
MI | M2, MI-ONE, MI1S, MI 1 SC, MI 2, MI 2A, MI 2S, MI 2-SC, MI-ONE Plus |
ZTE | U880s, U930, V880, N880E, U880, N880, U956, V790 |
HUAWEI | C8813D, C8813Q, C8812, C8812e, P6-U06, T8951, U8661, C8650+, G510-0010, G520-0000, U8836D, G610, G610-U00, T8830, Y210-2010 |
Coolpad | 5930, 7260+, 7295A, 7295, 7019A, 7296 |
Lenovo | P770, A560e, S890, A288t, A820, A60+, P700i, A798t, S720 |
Konka | W990, U926 |
MEIZU | Mx2, M032 |
LOVME | X10 |
VOTO | T6000, X2 |
Android | T9989 |
Operating steps:
1. Download a RFID reader app
2. Plug the reader into the phone and click the app
3. Click the start button and the reader starts to read
QC:
Every single product will be carefully checked by machine or manual work before dispatched.
Speciality:
Nexqo is member of ICMA (International Card Manufacturer Association) and delivers outstanding quality that has been certified in accordance with CE FCC and RoHS certificates.
To make sure the product can be delivered without any damage, Nexqo uses top standard packaging. All Paper boxes and cartons are made of high-quality material.
