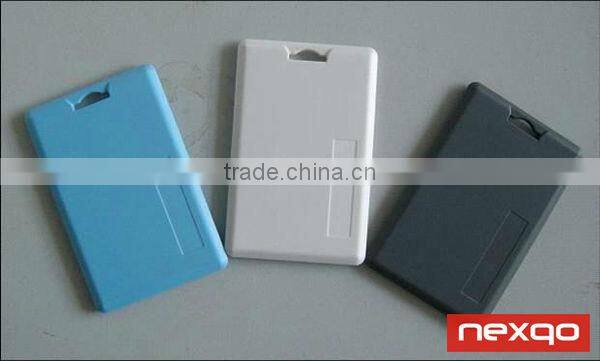

2.45ghz Long Range Active Rfid Tags With Reader

Specifications

2.45ghz long range active rfid tags with reader

Product Feature

1.         Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability;

2.         Effective reading range up to 80m (depend on reader and antenna, software configurable);

3.         Super wide working band design, conforming to relevant industry rules and also flexible in application development;

4.         Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range.

Physical Characteristic:

Microwave Link Characteristic:                 Electrical Characteristic:

Signal Modulation Mode: GFSK                                             Quiescent Current: Less than 3MICROAMP

Communication Speed: one-way 1Mbit/s                               Operating Current: Less than 16mA

Operating Frequency: 2.4GHz                                               Operating Temp: -20°C~+45°C

Maximum output power: 0dbm (1mw)                                     Storage Temp: -30°C~65°C

Receiver sensitivity: -85dbm                                                  Operating Humidity: Less than 85%

Error Rate: 10^-6                                                                                            Drop Test: 1m (concrete floor) fall free

System Features:

l  The electronic license is unique and able to be duplicated;

l  Track the movement of vehicles, not influenced by weather;

l  Identification vehicles without stop; Set up mobile monitoring point at important crossings;

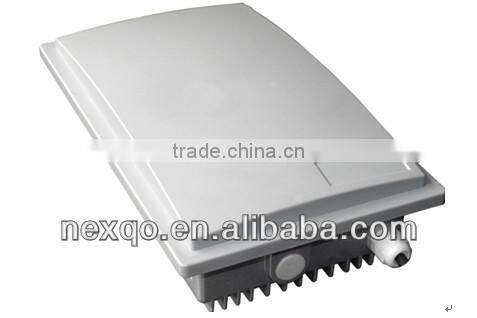

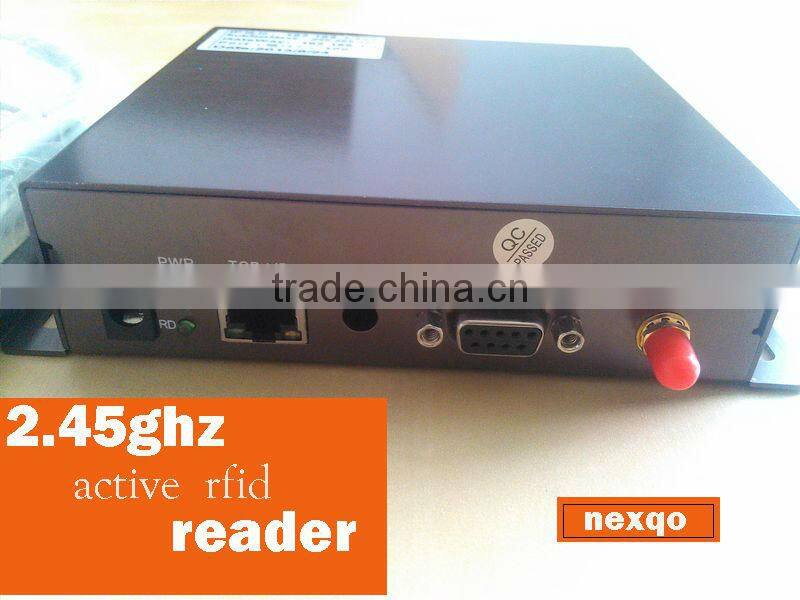

the mached 2.45ghz reader also can be provided too !!
