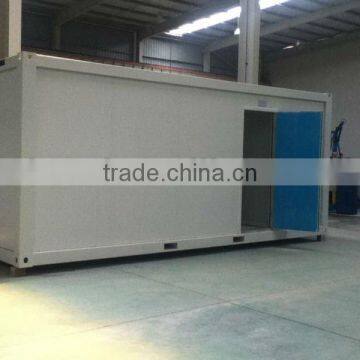

CE&ISO prefab container house

We are a professional steel structure container house, prefabricated house and modular house producer. we can manufacture all kinds of houses according to customer's requirement.both for living and office.

We can supply all the bathroom and kitchen facilities( including toilet bowl, wash basin,shower). also electricity facilities( including switch, socket, wire and lamps)

Materials:

1.)BASE:

- Frame construction: - 3mm Steel Profile; 4 welded (Container) corner castings with dimensions according to ISO norms.

- Frame construction: - Cold rolled welded; 3mm steel profile; 4 welded

- Floor: - 18 mm plywood, water resistant (V100), free of formaldehyde (E1);

 1.5 mm synthetic floor covering, welded seams.

 2.)  ROOF:

- Frame construction: - 3 mm cold rolled, welded steel profiles.

- 4 corner casts, welded in accordance with ISO norms.

- steel structure Perlins.

- Load bearing Capacity: - 2,000 N/m2.

- Roof cover: - 0.50 mm thick, galvanized steel sheet.

- Insulation: - 50 mm-100mm mineral wool, EPS or PU slabs

3.)  CORNER POSTS:

- Profile: - Cold rolled 4.0 mm steel profile.

- Door panel

- Fitting: - The four corner posts are fitting with the base frame and the roof with Bolts.

4.)  WALL PANELS:

- Exterior Cladding: - Profiled galvanized sheet metal, steel sheet, 0.5 mm.

- Interior Cladding: - Profiled galvanized sheet metal, steel sheet, 0.4 mm.

- Insulation: - 50mm-100mm mineral wool, EPS or PU panel

- Load Bearing Capacity: - 0.6 Kn/m2.

 5.)  PAINTING & COATING:

All steel profiles will be hot-dipped Zinc galvanized (45μm)

Epoxy Zinc primer: Min 40 Microns.

Mineral Wool Coating: Min 50 Microns.

Total Coating: D.F.T: Min 90 Microns.

All Zinc galvanized sheet metals are PVC overlaid in standard colors.

6) WINDOWS:

PVC window or Aluminum Alloy window,

Sliding or sewing

7.)  EXTERIOR DOORS:

Aluminum Door, Theft proof steel plate door, sandwich PVC door

Sewing

Specification Illustration:
